5. Sync system with "adat" by the slave mode
This section will explain the sync system using "adat" equipment such as the Fostex
RD-8.
* Initialize D-160.
* Confirm the program.
* Set RD-8 and D-160 to the same sampling frequency.

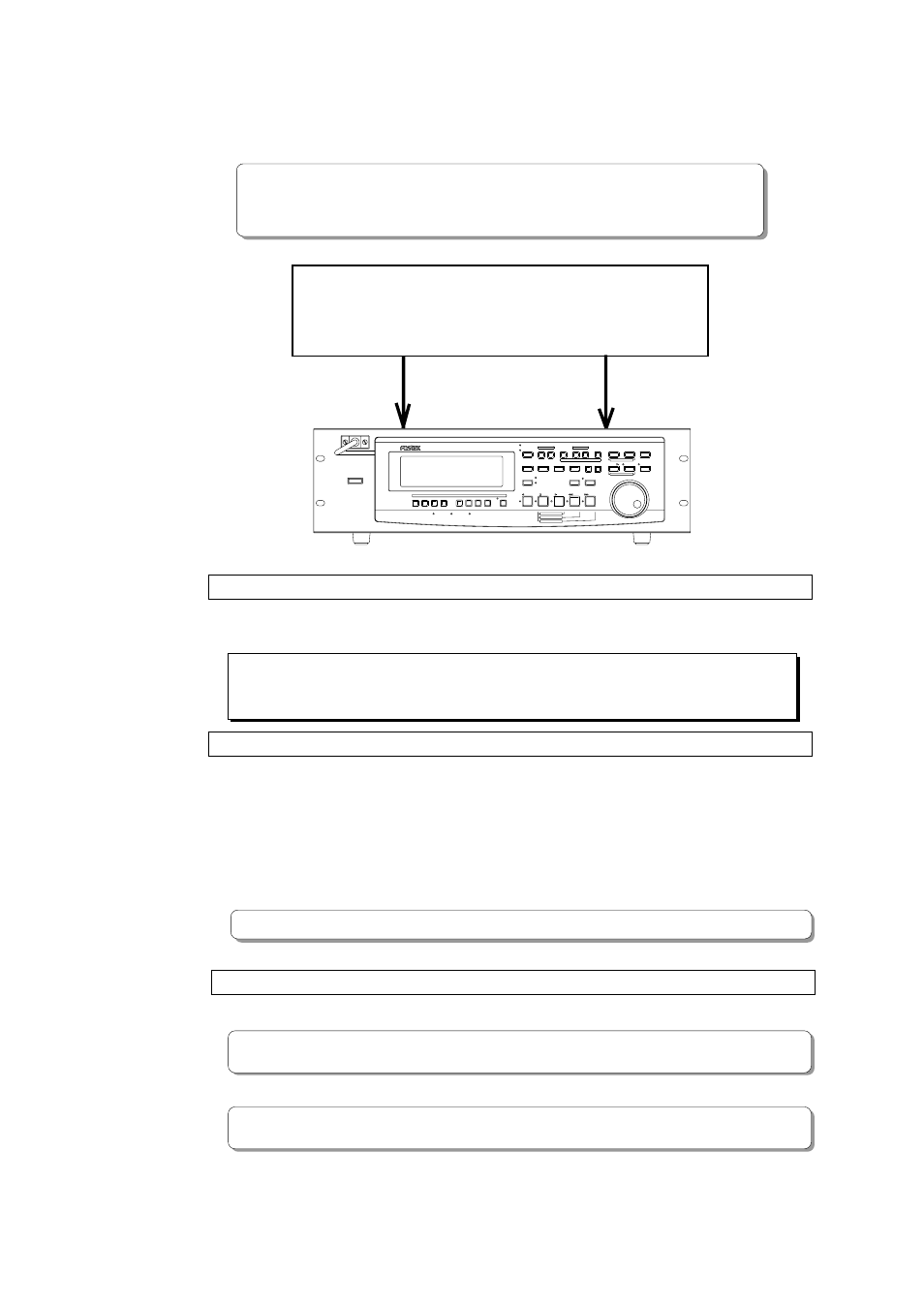

Equipment connections
Make connections, respectively, RD-8 DIGITAL OUT to D-160 DATA IN, and RD-8
MIDI OUT to D-160 MIDI IN.
In order to slave operate adat equipment and the D-160, the best setting is to supply
"adat" digital signals together with MTC from the master unit.
D-160 (Slave)
Setup of RD-8 (master)
1 . Setup for output of MTC.
2 . Setup the MTC frame rate to be output.
3 . Check the MTC time to be output.
4 . If necessary, set to allow output of "adat" digital signals.
This is unnecessary for the RD-8.
# Refer to the RD-8 Owners Manual for details.
Settings on the D-160
1. Set the same frame rate as the RD-8 for the “MTC Frame rate setting” in the Setup mode.
# Refer to “2-9. MTC Frame rate setting” in Setup mode on page "151" for the operation and
more information.
2. Select a desired mode for “MTC offset mode setting” in the SETUP mode. (*)
# Refer to “2-11. MTC offset mode setting” in Setup mode on page "153" for the operation
and more information.
