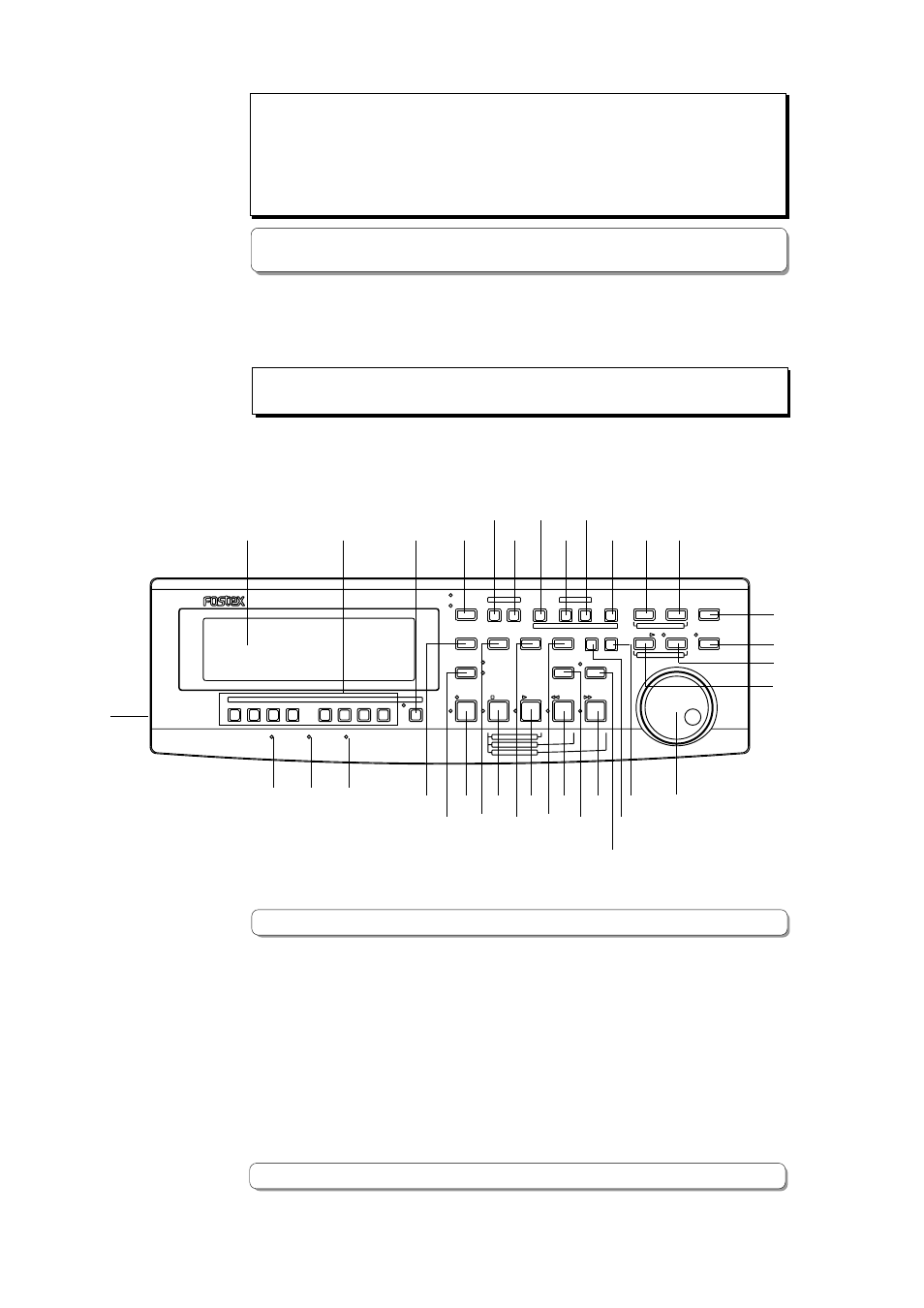

D-160 Owner's Manual (Names and Functions)
14
SHIFT
AUTO
CLIPBOARD PLAY
LOCATE ABS 0
DIGITAL MULTITRACK RECORDER
D-160
IN / OUT
PUNCH
PGM CHANGE
8/16 7/15 6/14 5/13 4/12 3/11 2/10 1/9
RECORD TRACK
HD ACCESS LOCKED MTC IN
END IN OUT START
AUTO PUNCH
AUTO PLAY IN OUT
AUTO RTN
CLIPBOARD
PASTE MOVE COPY
AUTO RTN
ERASE UNDO REDO
DISP SEL
EXECUTE
/YES
EXIT
/NO
HOLD/ STORE RECALL
TIME BASE SEL
TAKE
REHEARSAL LOCATE PUNCH
F FWD REWIND PLAY STOP RECORD
VARI PITCH
LOCATE ABS END
8. Meter display
This meter display shows the signal level and settings.
* Refer to the “Display section” on page "25."
9. Record Track Select key [RECORD TRACK]
The Record Track Select key selects "SAFE-READY" for the recording track.
When you press this key once, the track enters the READY status, and the track indication
on the display will blink. Pressing it again changes this status to "SAFE" and the track
indication will go out. When you start recording, the blinking track indication illuminates.
When you press only the RECORD button while the track is in the READY status, the track
becomes an input monitor, allowing you to adjust the recording level.
Pressing only the RECORD button again, and the track become a reproduction monitor.
This key is also used to select a track for the Copy & Paste, Move & Paste, Erase, or other
editing operation.
* Refer to page "37" for details about the reproduction monitor and the input monitor.
8 9 11
12
13
14
16
17
15 18 19
23
22
21
20
24 25 38 37 36 35 34 31
33 28 29 30 32
42
10
26
27
41 40 39
The D-160 package contains a removable case (without a hard disk). Install your hard disk in
this removable case.
The optional Model 9041 (1.3GB removable hard disk cartridge) contains a hard disk, which
allows you to record and play back about 15 minutes of data (16-tracks recording, FS: 44.1
kHz) without having to install a case.
* Refer to page "39" for more information on the hard disk models that have already been
ested for operation on the D-160.
7. Lock/Unlock key
When you remove or install the hard disk cartridge, you need to lock/unlock here using
the included key.
Be sure to turn the power off to the D-160 before locking or unlocking.
