Cable connections within a system unit

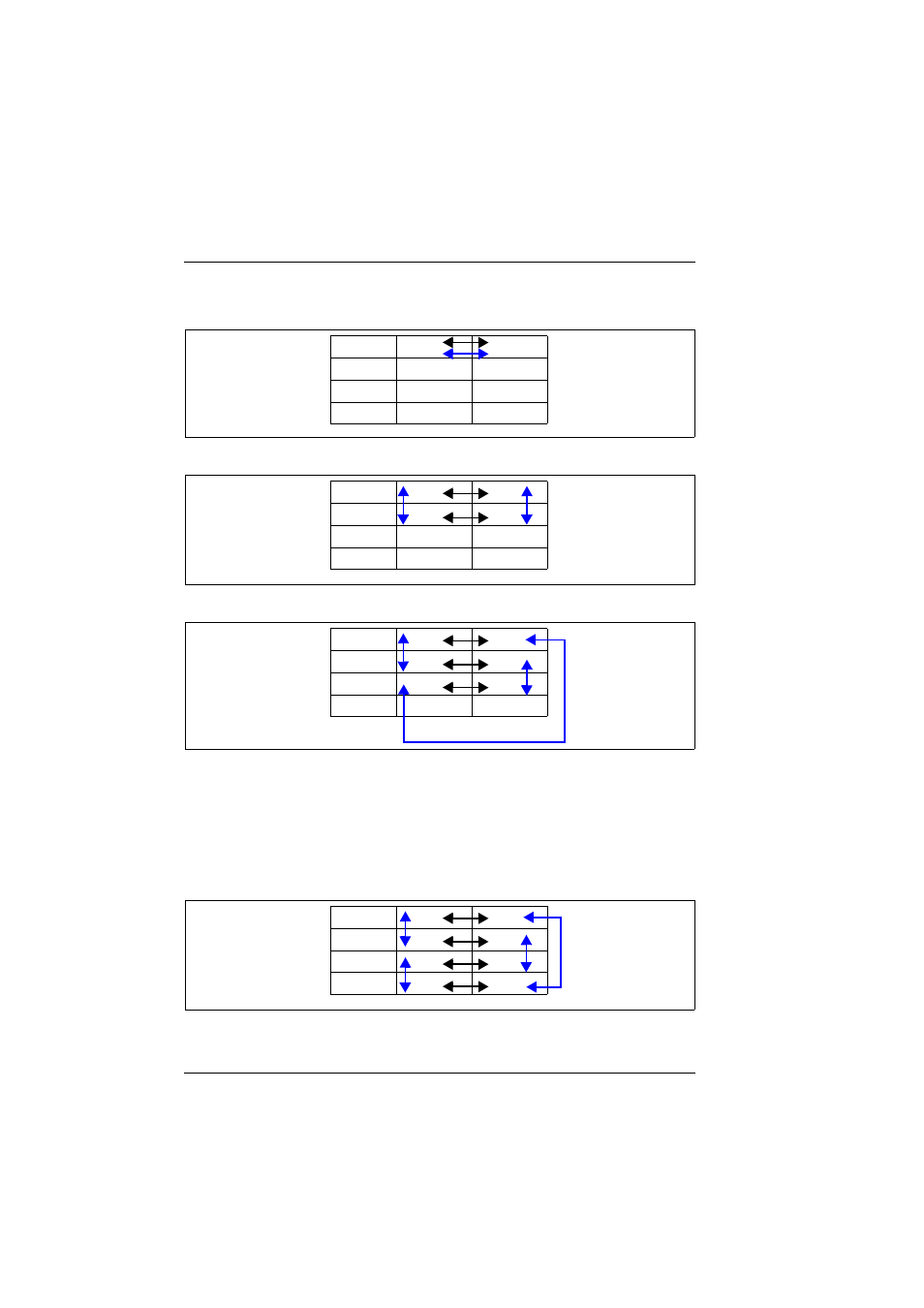

Figure 29: Stack with 2 connection blades within a fabric
Figure 30: Stack with 4 connection blades
Figure 31: Stack with 6 connection blades
I
Fabric 3 (CB 5/6) may only be fitted with Connection Blades Switch/IBP
36/8+2 if these belong to a stack with other connection blades.
In addition, the management blade of the system unit and the iRMCs of
the relevant server blades must have specific firmware versions -
management blade: 4.27 or higher; iRMC: 4.76G or higher.
Figure 32: Stack with 8 connection blades
Fabric 1 CB1 CB2
Fabric 2
Fabric 3
Fabric 4
Fabric 1 CB1 CB2
Fabric 2 CB3 CB3
Fabric 3
Fabric 4
Fabric 1 CB1 CB2
Fabric 2 CB3 CB3
Fabric 3 CB5 CB6
Fabric 4
Fabric 1 CB1 CB2
Fabric 2 CB3 CB3
Fabric 3 CB5 CB6
Fabric 4 CB7 CB8
