BX900 S1 Operating Manual 103
Hot-plug components
8.2.3 Connection Blade 10 GbE Switch/IBP 18/8
The Connection Blade 10 GbE Switch/IBP 18/8 can be used as a layer-2+
switch or an Intelligent Blade Panel (IBP). It provides the following connections:
– 18 internal 10-Gbit ports to the server blades
– 8 external 10-Gbit ports through SFP+ modules or active twinax cables
(copper)
This connection blade can be used in connection blade slots CB1/2 (fabric 1),
CB3/4 (fabric 2) and CB5/6 (fabric 3), see
figure "Connection blade slots" on
page 116 .
The server blades must have corresponding 10 GbE mezzanine cards. For
more information, see the operating manuals for the relevant server blades and
the manual "PRIMERGY 10GbE Connection Blade 18/8 User Guide" and "
ス
イッチブレード 10Gbps 18/8 取扱説明書 "(for the Japanese market).
Ports and LEDs

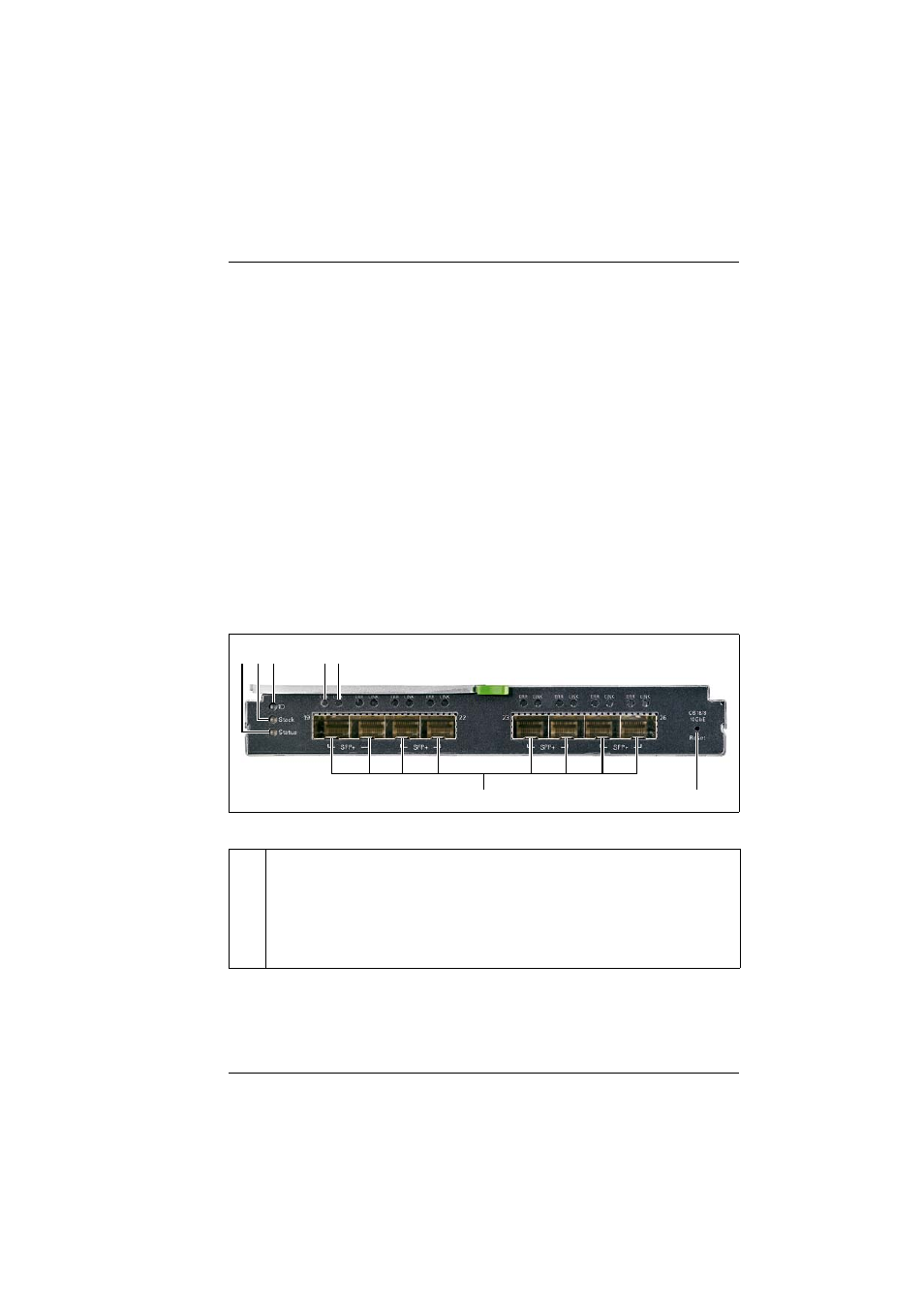

Figure 35: Connection Blade 10 GbE Switch/IBP 18/8
1 Status indicator (green/orange)
Lit green: Power supply is supplied to the connection blade
Flashes
alternately
green/orange: Connection blade error
Dark: Power supply is not supplied to the connection blade
1 2 3 4 5
A 6
