8.5.1 Replacing a fan unit
The power supply units and fan modules contain a fan unit on each of their front
and rear sides. The mounting positions of the fan units are the same for power
supply units and fan modules.

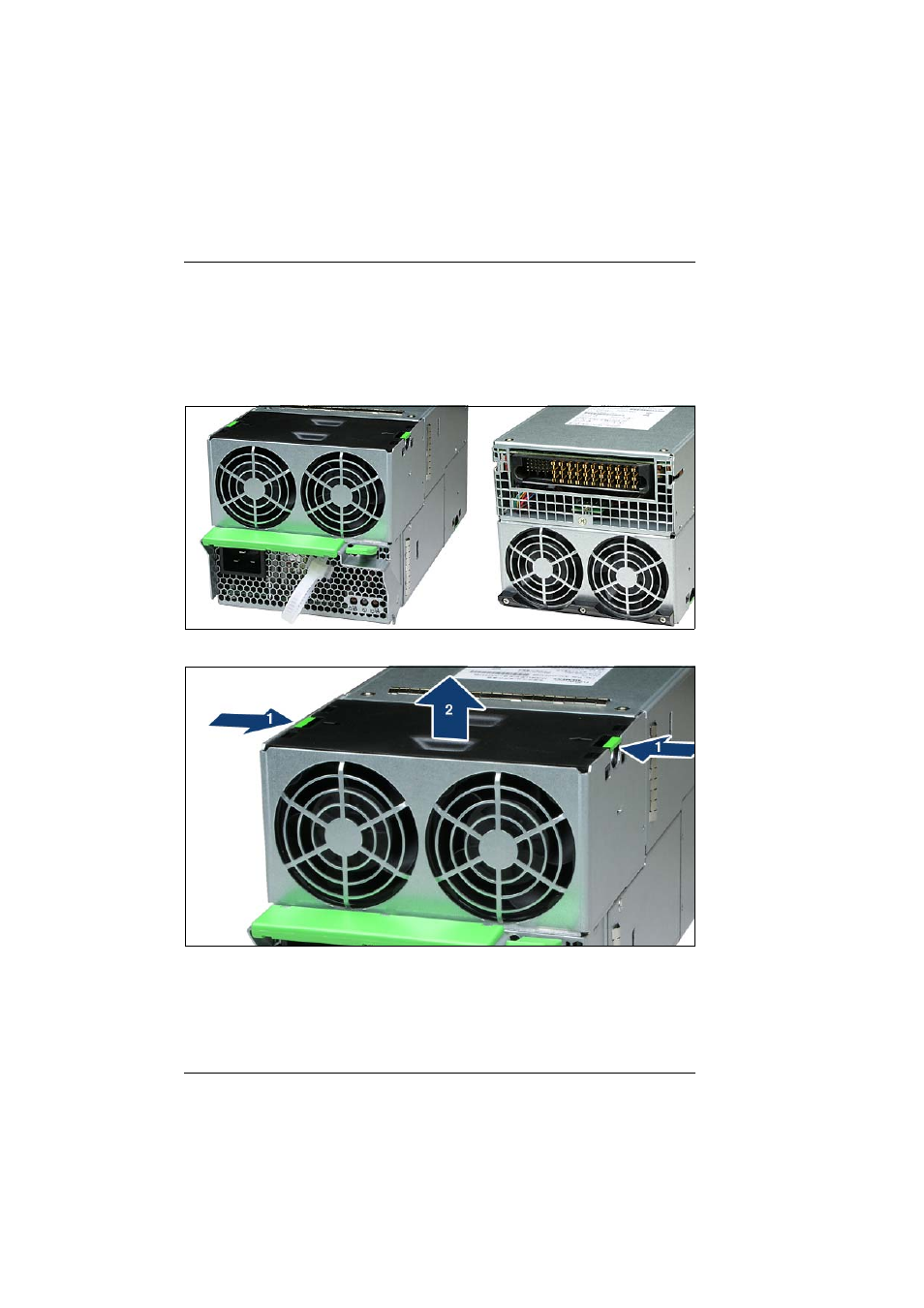

Figure 55: Fan units in a power supply unit
Figure 56: Removing a fan unit
Ê Press the green locking elements inward (1) and pull the fan unit out of the
housing (2).
