BX900 S1 Operating Manual 123
Hot-plug components
Installing a double-width connection blade (Infiniband)
V
CAUTION!
Make sure you observe the safety notes and the information on handling
electrostatic-sensitive devices in the section
"Modules with Electrostatic-
Sensitive Devices" on page 34 .
Ê Unpack the Infiniband connection blade.

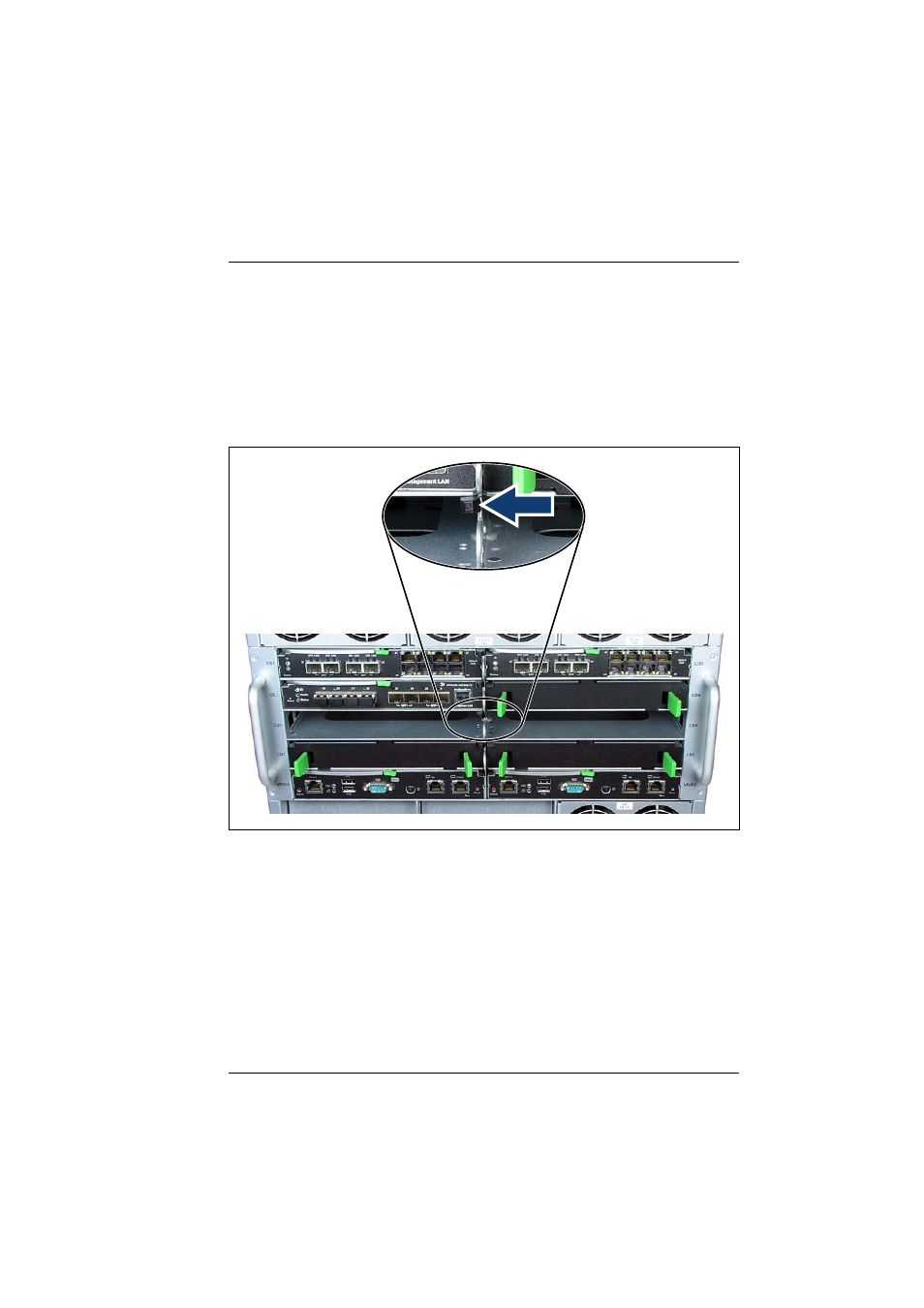

Figure 46: Removing the separating clip
I
Because of the double width of these connection blades, you must
remove the separating clip between the two slots of a fabric before you
install the connection blade.
Ê Remove the separating clip by pressing the little black lever (see blow-up in
figure 46 ) to the left and pulling out the separating clip.
