2-4
2.3 Processor Unit
Cables (10S2074, 10S1258-1 and control cable) from the various units are connected to the
CONE Board (10P6905) in the processor unit.

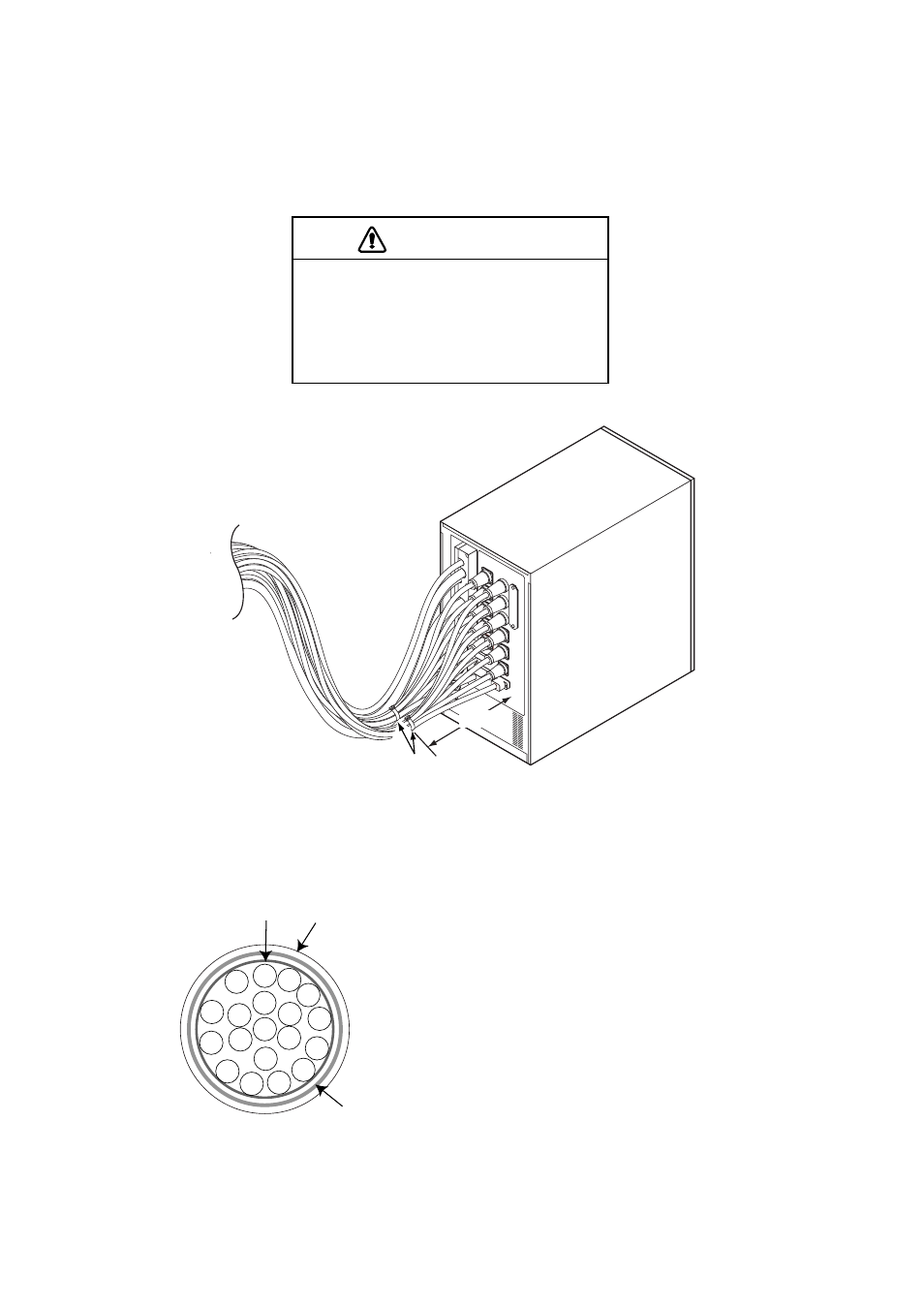

NOTICE
Divide cables attached to the back of the
processor unit between right and left side.
Tie each group with a cable tie at the
position 15 cm from connectors.
This is necessary to prevent cable stress.
Cable tie
15 cm
Processor unit, rear view
2.3.1 10S1258-1 cable
This cable runs between the processor unit and transceiver unit.
8 9
10
11
12
13
14 15
16
17
18
19
7
2
3
4
5
6
Armor
Shield
1. BLK
2. BLK/BRN
3. BLK/RED
4. BLK/ORG
5. BLK/YEL
6. BLK/GRN
7. BLK/BLU
8. BLK/PPL 9. BLK/GRY
10. BLK/WHT
11. BRN/RED
12. BRN/ORG
13. BRN/YEL
14. BRN/GRN
15. BRN/BLU
16. BRN/PPL 17. BRN/GRY
18. BRN/WHT
19. RED/ORG
1
Anticorrosive Sheath
1: Coaxial cable
2 to 19: Twisted pair cable
Cable type 10S1258-1, sectional view
