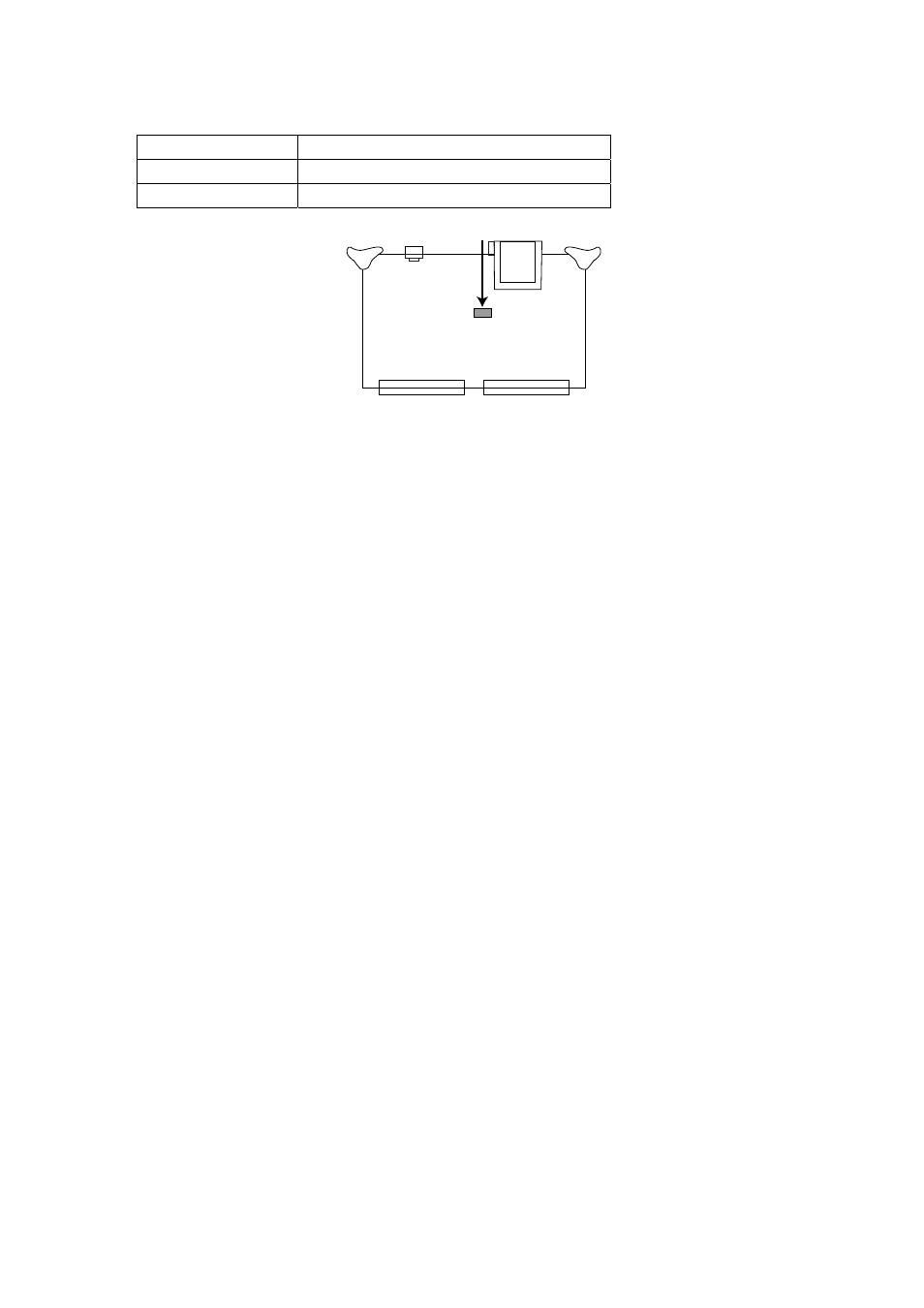

8. Set the DIP switch on the DCON Board as follows.
Input port
DIP switch setting on DCON Board
CIF1 S3-#2:
ON
NMEA 2/CIF 2
S3-#3: ON
S3
DCON Board (10P6984 or 10P6984A)
Note: If the CIF1 format is selected, change baud rate to 2400 bps. See CIF BAUD RATE
on page 3-9 for details.
