3-14
3.6 DIP Switch Setting
IFES
SCAN
SCAN2
DUAL
DCON
J1
IFES board (10P6983)
DCON board (10P6984 or 10P6984A)
J496, J497
J1
J496
J497
DC
AC

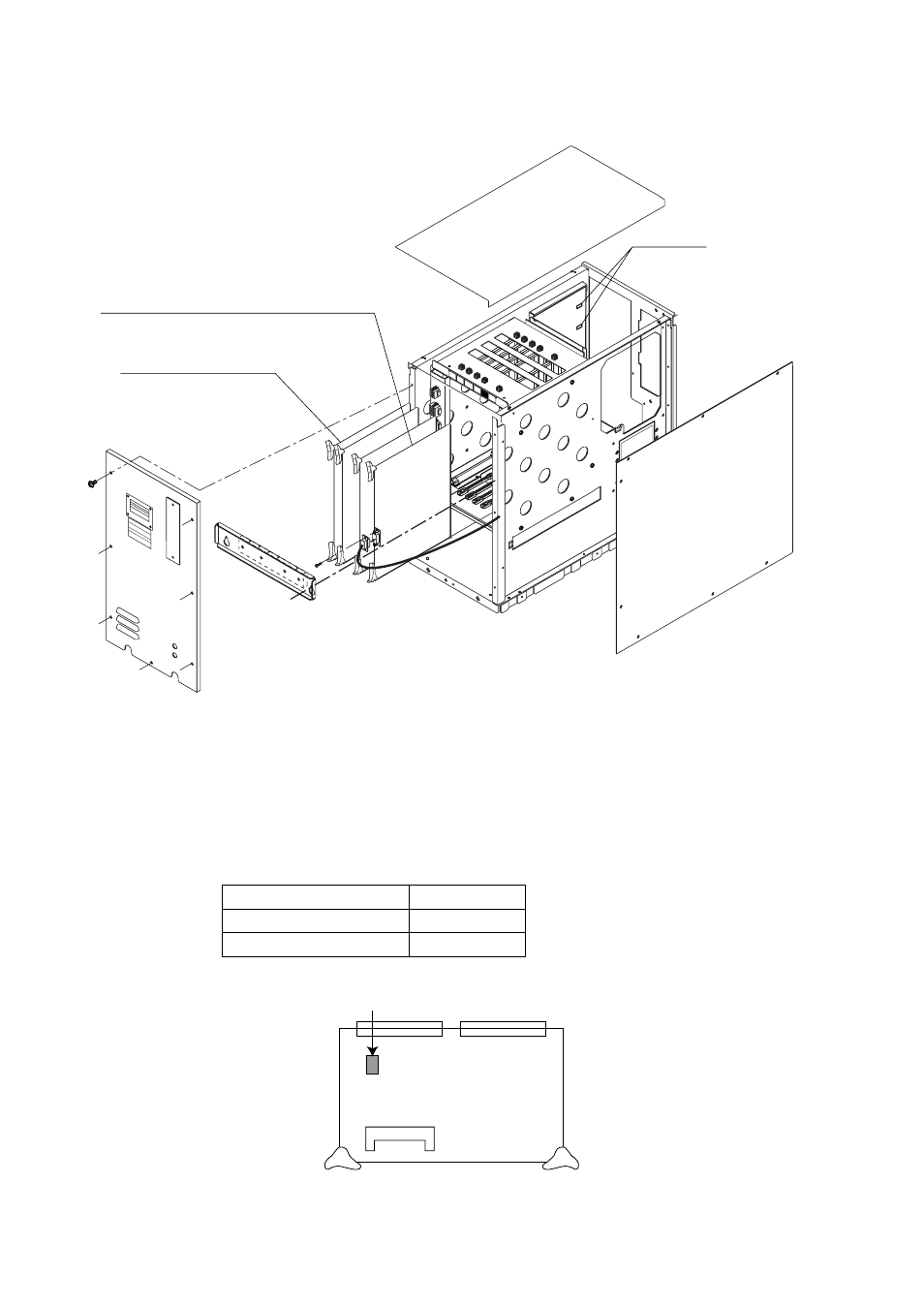

Processor unit, inside view
3.6.1 CIF2/NMEA2 connector interface selection
The signal format for the CIF2/NMEA2 port (at the back of the processor unit) can be set for
CIF or NMEA by DIP switch S2-8 on the IFES Board (10P6983). The default format is OFF
(CIF).
DIP switch setting Format
S2-#8: ON NMEA
S2-#8: OFF CIF
S2
IFES Board (10P6983)
