2.4.4 Wiring in transceiver unit
1. Open the transceiver unit cover.
2. Plug the P1 and P2 connectors at the end of signal cables into the proper receptacles in
the transceiver unit, referring to the interconnection diagram at the back of this manual.
3. Lead the signal cables into the transceiver unit appropriately.
4. Fasten the cables with cable clips after wiring the hull unit.
13-L
16-L
05-L
SB-1909
SB-1909
07-L
SM4P
EL4P
SM12P
YL8P
EL3P
SM12P
SM8P
EL12P
EL9P
SM18P
VH-3P
EDS3
EDS3
EDS3
TB-B101
INPUT
F602
I
MAINTENANCE
Maintenance
I
F601
MAIN
J601
/220/230 VAC
50/60Hz
1
2
:15A
L
L
S605
L
L
S605
H
S603
INPUT(TB-B101)
L
100V
H
110V
H
S603
S604
H
S604
L
H
H
L
H
L
H
220V
L
H
230V
H
H
115V
L
(Should be OFF
operation.)
for Normal
Use Only.
100/110/115
15A
15A
J303
J302
J301
5A
5A
J206
J205
J204
J201
J202
J203
6962
6963
CN-B202
CN-B201
CN-B203
CN-B205
CN-B206
CN-B204
CN-B208
CN-B209
CN-B210
CN-B207
TRX-2
TRX-1
TRX-3
TRX-5
TRX-6
TRX-4
TRX-8
TRX-9
TRX-10
TRX-7
Transceiver unit
10
9
8
7
6
5
4
3
2
1
Cable
number
10S2223
Secure
here with
metal clamp.
P2
(40 pin)
P1
(34 pin)
Fix signal cables with clamp.
From right to left B201 to B210
Cable clip

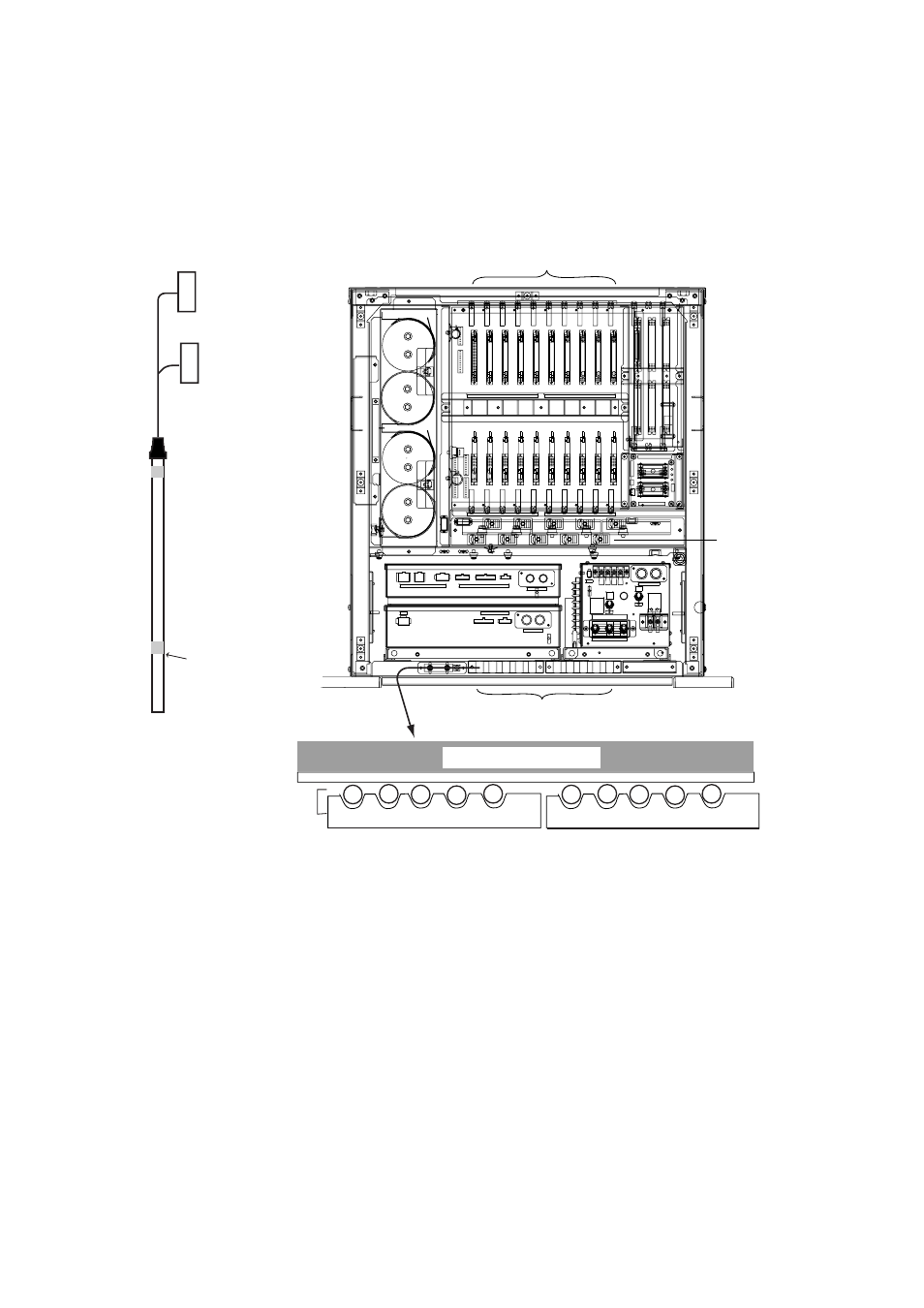

Transceiver unit, top view
