2-9

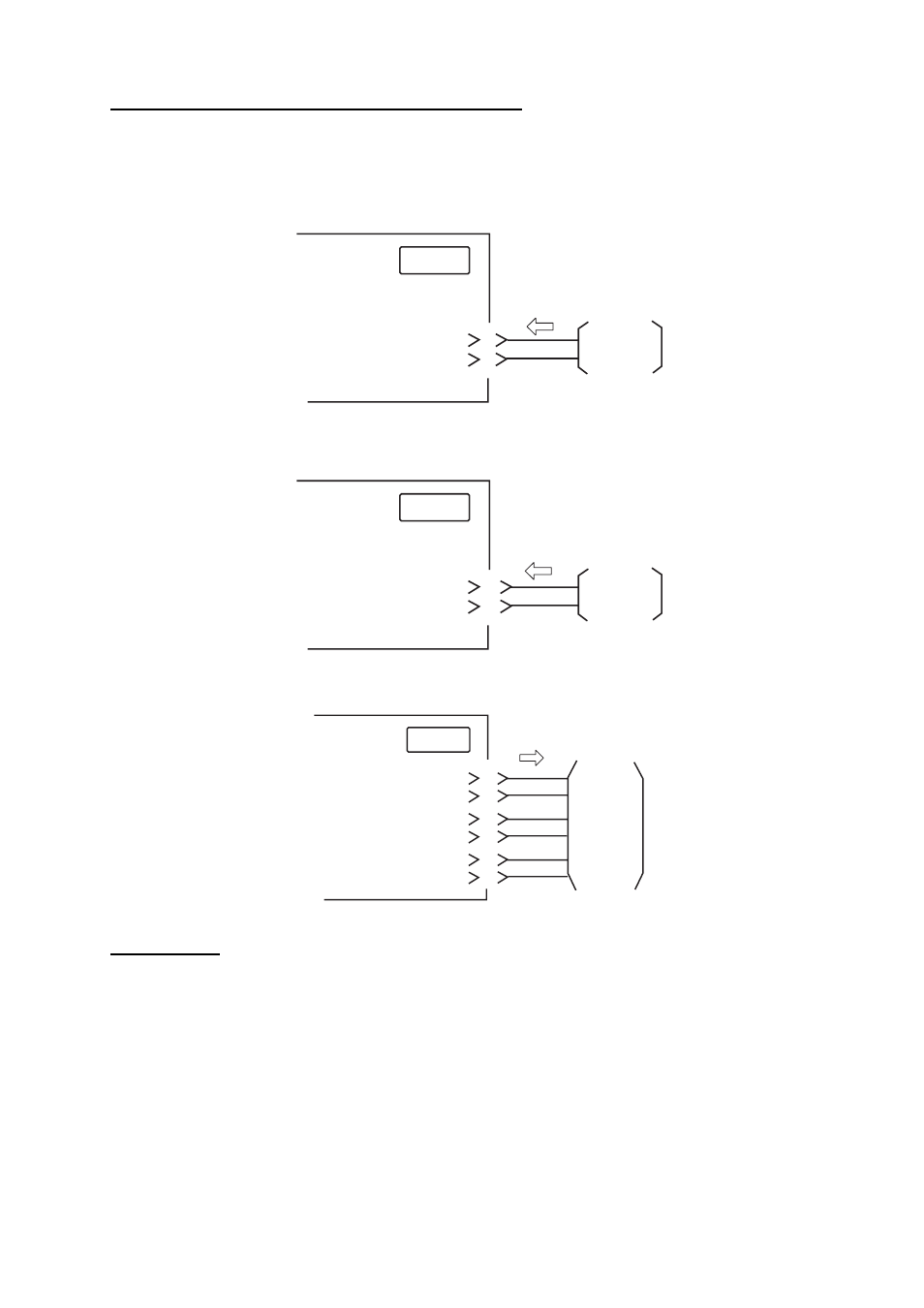

Synchronizing with echo sounder or other sonar
To synchronize the transmission of the FSV-30 with an echo sounder or other type of sonar,
make connections as shown below.
For current driven KP input
Processor
unit
E/S
Sonar
EXT-KP
EXT-KP-IN-H
EXT-KP-IN-C 8
9
KP signal
For voltage driven KP (12 V) input
Processor
unit
E/S
Sonar
EXT-KP
EXT-12VKP-H
0V
10
7
KP signal
Voltage driven KP output
Processor
unit
E/S,
Sonar,
Current
indicator
EXT-KP
INTKP1
GND
1
2
INTKP2
GND
3
4
INTKP3
GND
5
6
KP signal
Menu setting
See EXT KP INPUT on page 3-9.
