2-7
2.3.4 Optional equipment
With connection of a navigator and electronic fishing equipment, the FSV-30 provides true
motion presentation, target lock, echo sounder picture, FNZ marker presentation, and digital
indication of position, water temperature and depth.
Use the SRCN connectors (optionally supplied, Type: CP10-4801, Code no.: 006-934-240)
to connect equipment to the rear of the processor unit. Refer to the interconnection diagram
at the back of this manual.

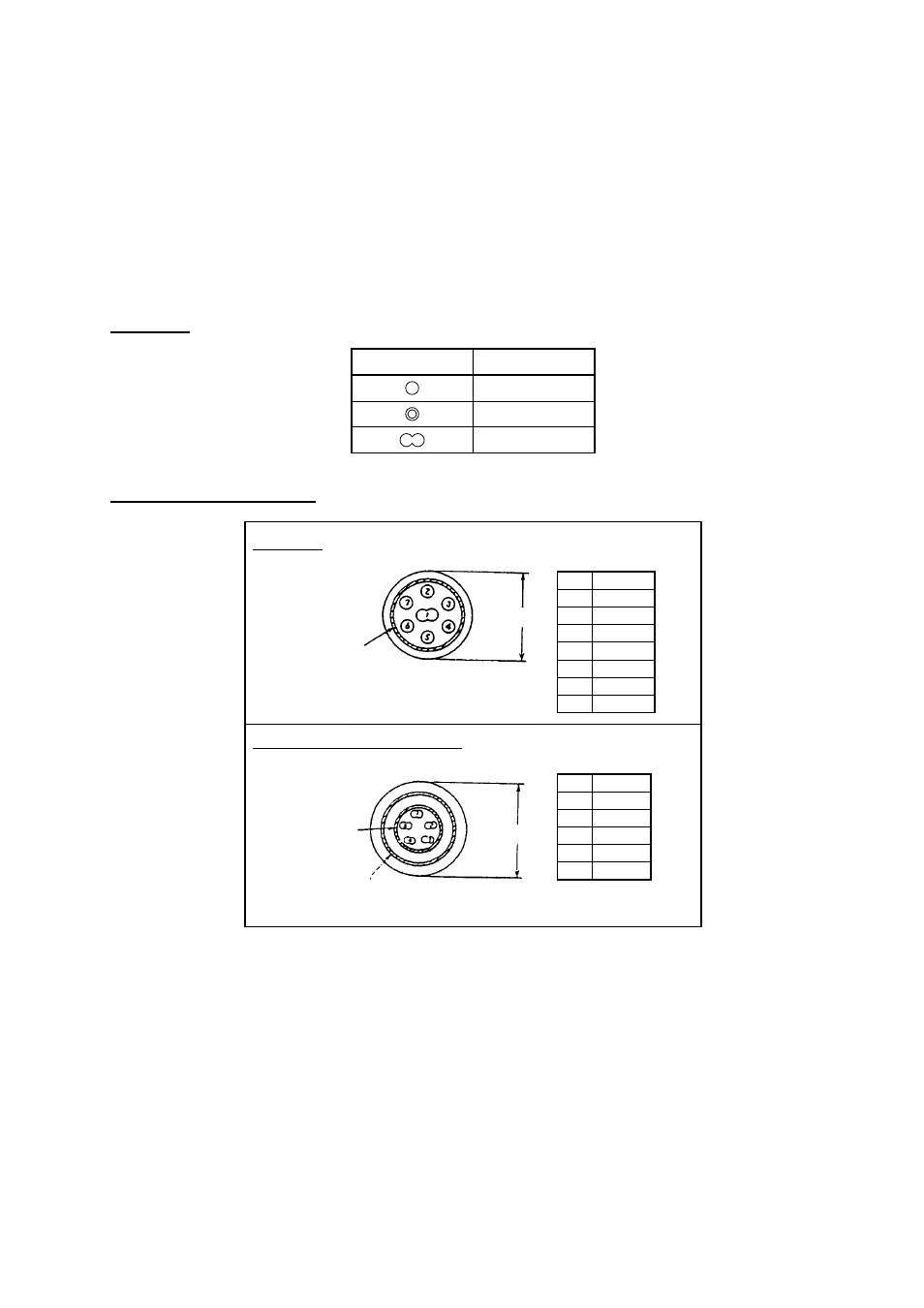

Cable list
Simple
w/shield
Twisted
Outline of core
Sectional view of cables
Shield 14 mm
9 mm
Armor
Shield
CO-SPEVV-SB-C 0.2sq, 5P
02S8040
No. Color
1 YEL/BLK
2 YEL/WHT
3 YEL/RED
4
YEL/BLU
5 YEL/GRN
No. Color
1 WHT/BLU
2 BLK
3 PNK
4 GRN
5 ORG
6 YEL
7 RED
