2-5

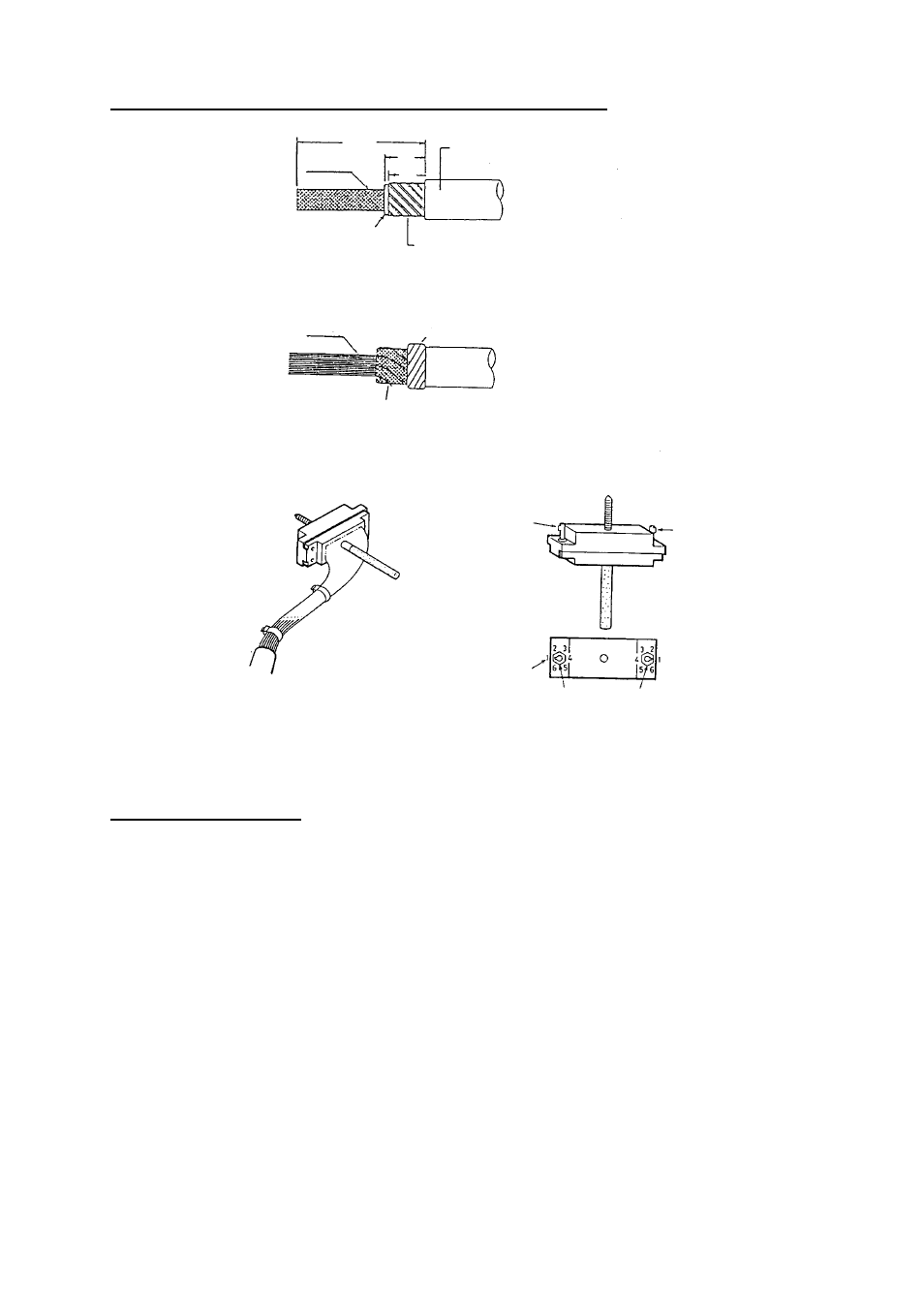

Fabrication of connector 00-8016-038-313761HV (CN-A101)
320
45
40
Shield
Anticorrosive
Sheath
Armor
Vinyl Sheath
Core
Insulating Tape
After exposing cores,
wind shield around the armor.
Fabrication of cable for connector 00-8016-038-313761HV
Guide Pin A
Guide Pin B
Guide Pin B
(Small) Guide Pin A
(Large)
Position No.
Assembling 38P connector
Positioning guide pins
Guide pins of the connector identify the mating receptacle. They are;
• Guide pin A (Large): 1
• Guide pin B (Small): 1
