2.3.2 Power cable

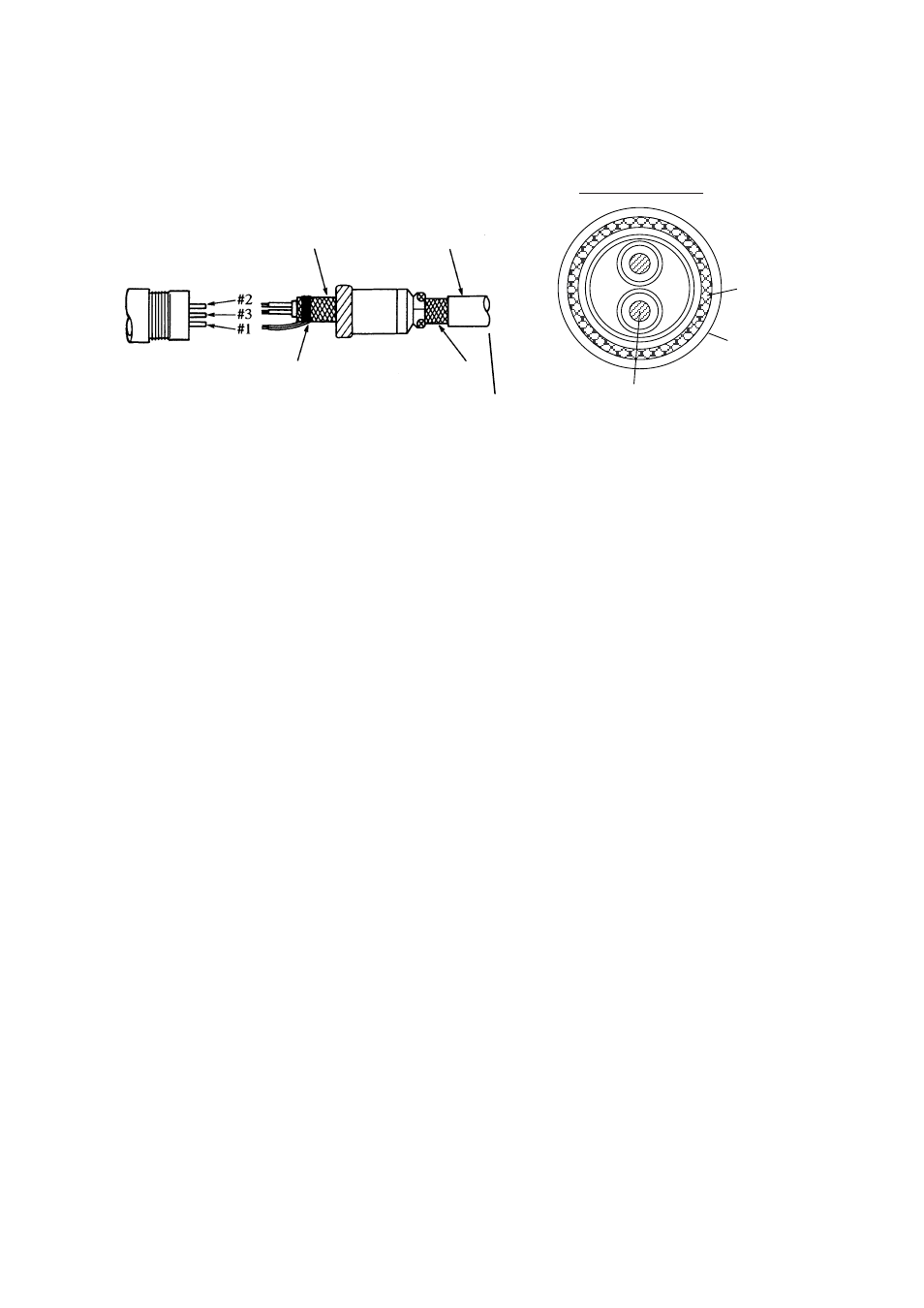

Attach the NCS-253-P connector (CN-A110) to the power cable DPYCY-1.5 (Japan
Industrial Standard (JIS) cable) or the equivalent. Attach the connector to the processor unit.
Armor Vinyl sheath
Taping
Solder lead wire to armor and
connect it to #1 pin of connector.
Conductor
S = 1.5 mm
∅ = 1.56 mm
2
Vinyl
sheath
Armor
Cable DPYCY-1.5
Use cable DPYCY-1.5
(Japan standard cable)
or equivalent cable.
Assembling connector NCS-253-P
2.3.3 Control cable
Attach the control cable (10S2074 or 10S2075) to the CN-A103 connector in the processor
unit.
