5. Choose ▲ or ▼ and then operate the [MENU] key to set the ship’s length (15 to 150 m).
6. Choose QUIT to finish the setting.
7. Set the SHIP’S WIDTH (5 to 30 m), TD POSITION 1 (5 to 50 m) or TD POSITION 2
(-10.0 to 10.0 m) similarly.
TD POSITION 1: Set the transducer’s distance from the bow.
TD POSITION 2: Set the transducer’s distance from the keel. Choose [+] for starboard,
[-] for port.
8. Choose QUIT at the top of the menu screen and press the [MENU] key to close all
menus.

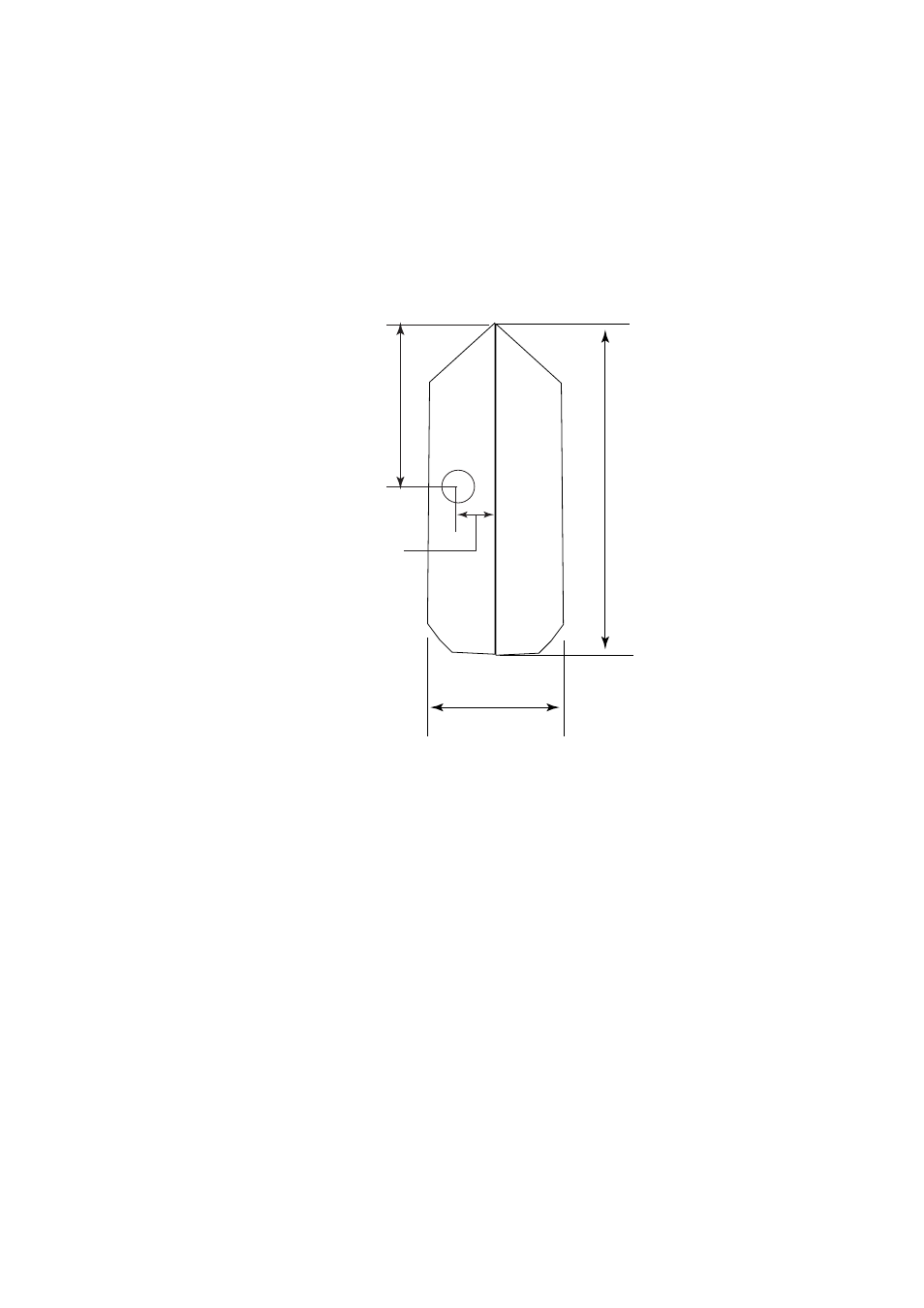

Ship's
Length
Ship's Width
TD Position 1
TD Position 2
(Negative value
for port)
Ship shape description
