1-10

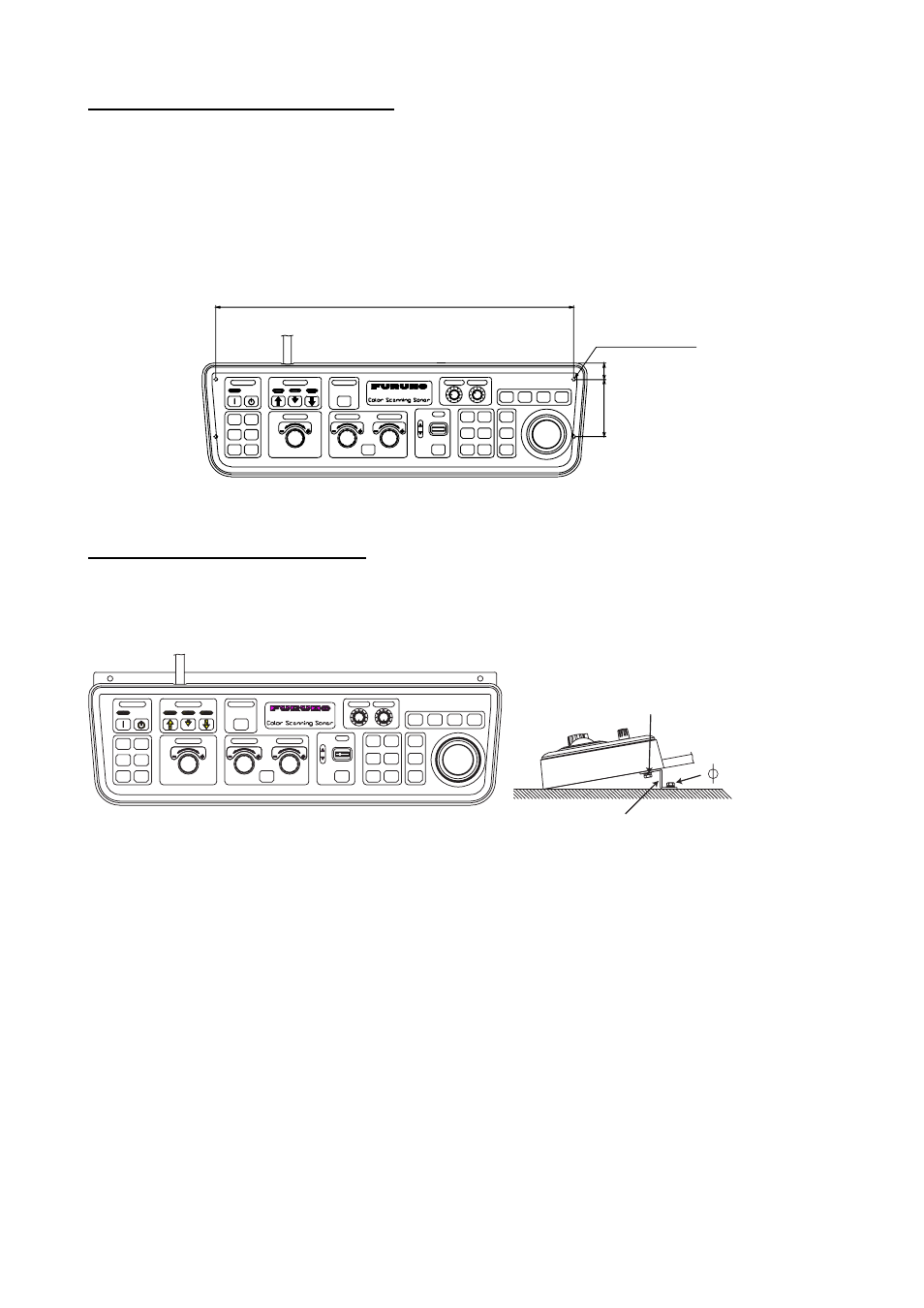

(2) Mounting without KB fixing plate
1. Drill four mounting holes of 6 mm diameter to fasten the control unit, referring to the
outline drawing at the back of this manual.
2. Referring to the outline drawing for the control unit at the back of this manual, make a
cutout in the mounting location large enough to accommodate the name plate so the
control unit will lie flat.
3. Fix the control unit with four bolts (M5) from under the tabletop. (M5 bolts with a
sufficient length for the thickness of the tabletop should be provided locally.)
22
75
±1
467
±1
Fixing hole φ6
FSV-30
Control unit
(3) Mounting with KB fixing plate
1. To fix the control unit to a desired location at an angle, fasten the KB fixing plate to the
control unit and desired location with two upset screws (M5 ×10, supplied) and two
tapping screws ( φ6.5, local supply) as below.
KB fixing plate
Upset screw (M5x10)
Tapping screw
( 6.5)
FSV-30
How to attach KB fixing plate
2. Set dust cover (supplied) to the control unit.
