2. WIRING

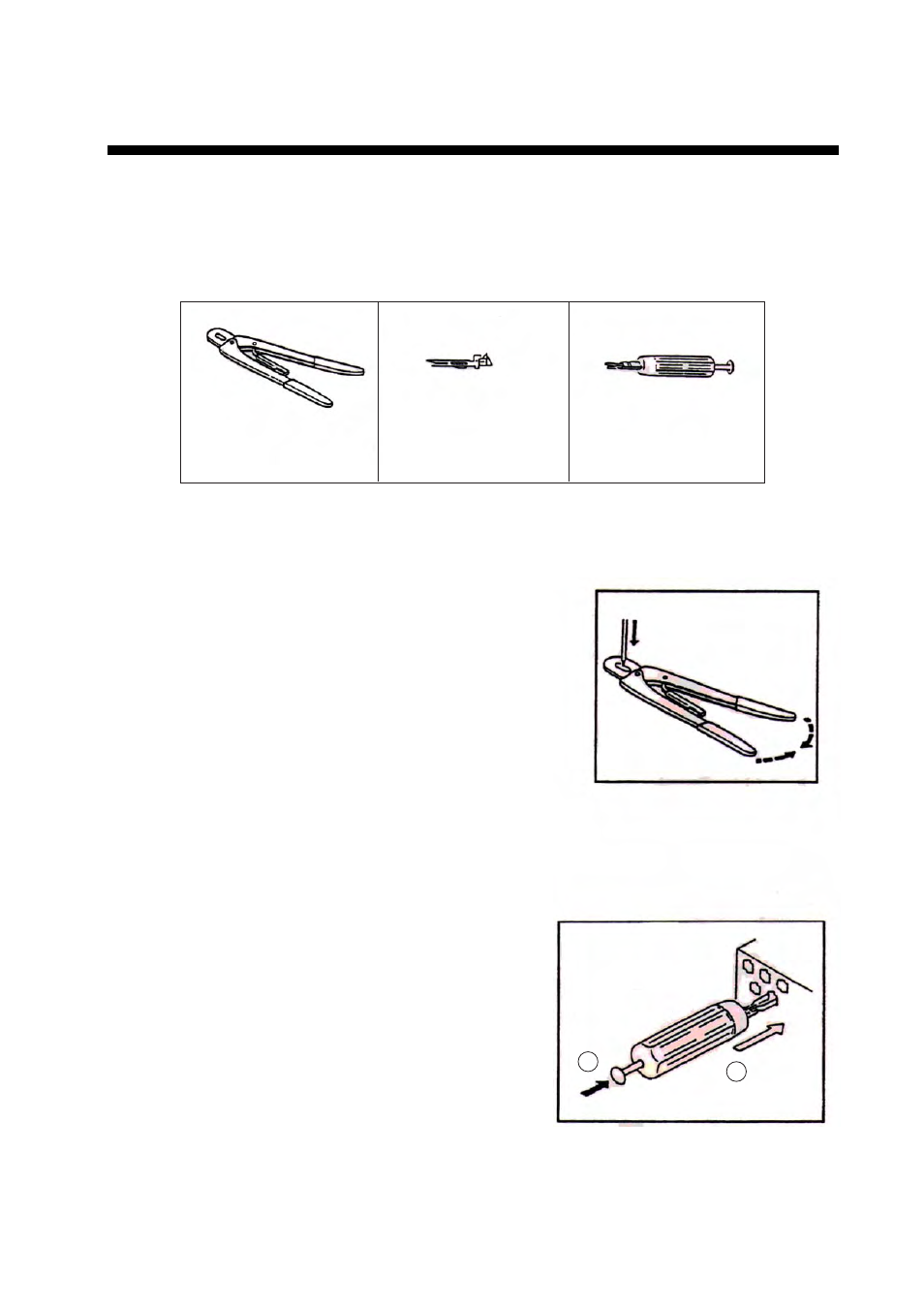

2.1 How to Use the Crimping Tool, Pin Extractor
A special crimping tool is necessary for connection of wires to the contact pins of the 38P
connector. The pin extractor removes the contact pin from the connector body. This
paragraph describes how to crimp and extract the contact pin.
Crimping Tool
06-1001-016
Contact Pin
60-8017-0313-00-339
(000-519-542)
Pin Extractor
06-1877-04
(000-519-595)
Crimping tool, contact pin, pin extractor
2.1.1 How to use the crimping tool
1. Remove the vinyl sheath by 3 to 4 mm to expose
the core.
2. Hold the crimping tool horizontally and insert the
contact pin with its slit facing downward into the
crimp hole on the crimping tool.
3. Insert the wire onto the contact pin and squeeze
the handle until the rachet releases. (The wire
should be placed deep enough into the contact pin
so that its end comes in contact with the stopper
plate of the crimping tool.) With crimping
completed, pull the wire while holding the contact
pin to make sure that it is tightly fastened.
2.1.2 How to use the pin extractor
If a contact pin is inserted into an incorrect hole on
the connector body, remove it with the pin extractor.
1. Push the pin extractor into the pin hole from the
side opposite to the pin inserting side.
2. Push in the head of the pin extractor. The retaining
spring comes free and the contact pin can be
removed.
