HP XE3 User Manual
Page 49
HP OmniBook XE3
Removal and Replacement
2-21
8.
Release the CD player PCA cable from the motherboard.

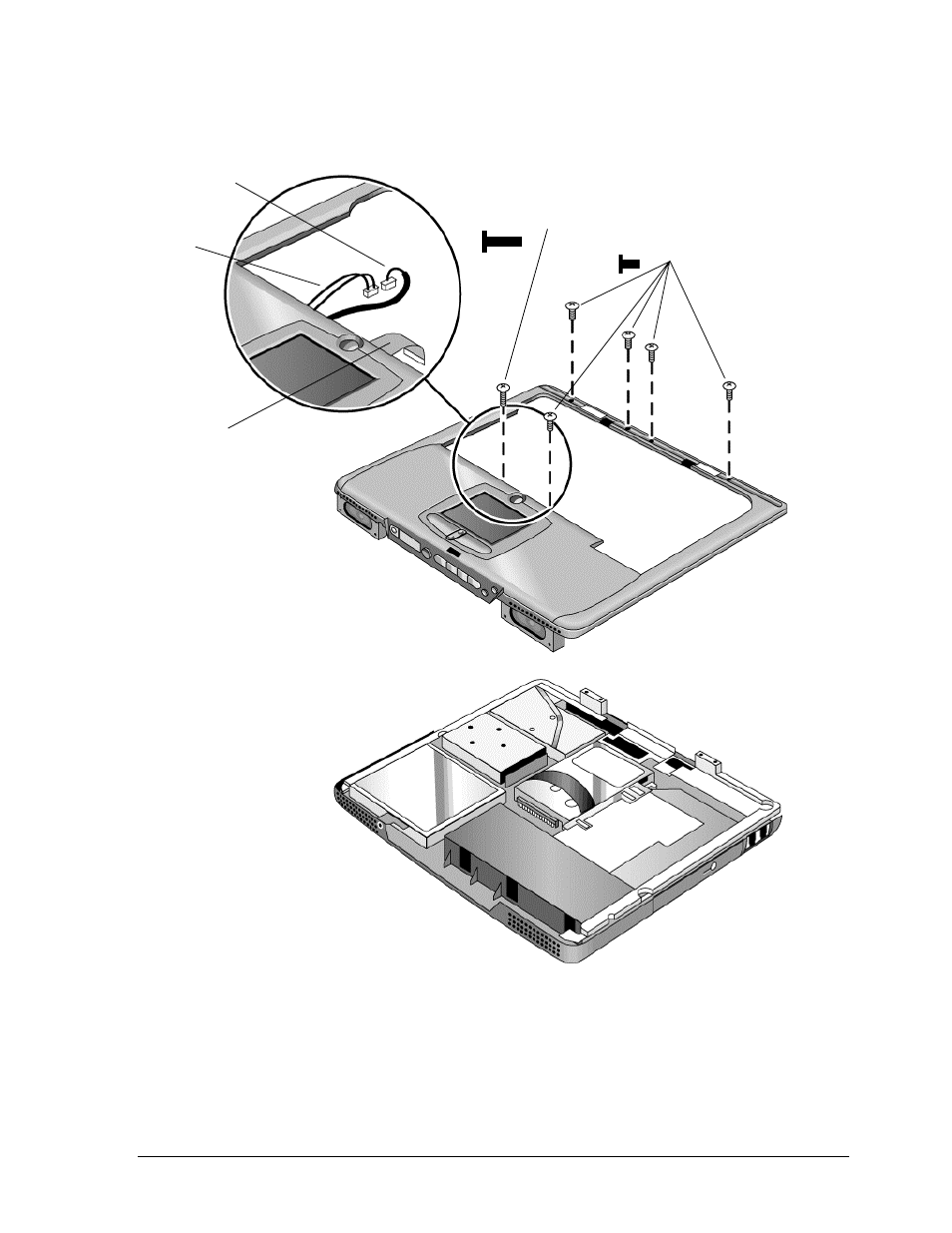

Figure 2-15. Removing the Top Case
Reassembly Notes
•
Make sure the touch pad cable and speaker cable connectors are fully inserted squarely in their
sockets.
•
Make sure both tabs along the front of the case snap shut.
Screws,
M2.5x4 mm
Screw,
M2.5x8 mm
Speaker
cables
Touch pad
cable
CD player
ribbon cable
