2-12 Removal and Replacement HP OmniBook XE3

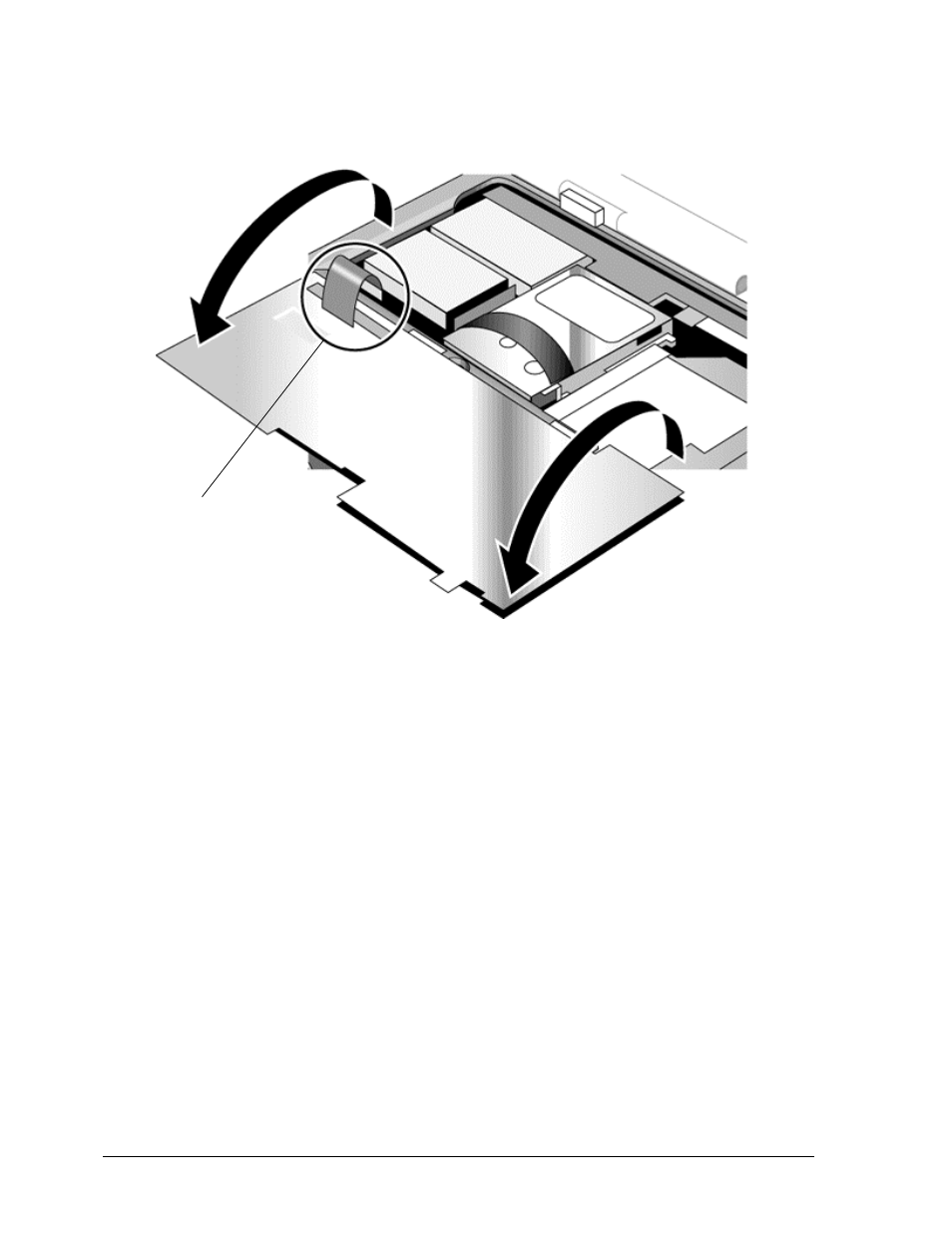

Figure 2-9. Disconnecting the Keyboard Cable
Reassembly Notes
•
Lay the keyboard face down on the top case forward of its normal position, then reconnect the
ribbon cable.
•
Slip the metal tabs on the bottom of the keyboard into their slots in the top case, then lower the
keyboard into place.
Keyboard
ribbon cable
