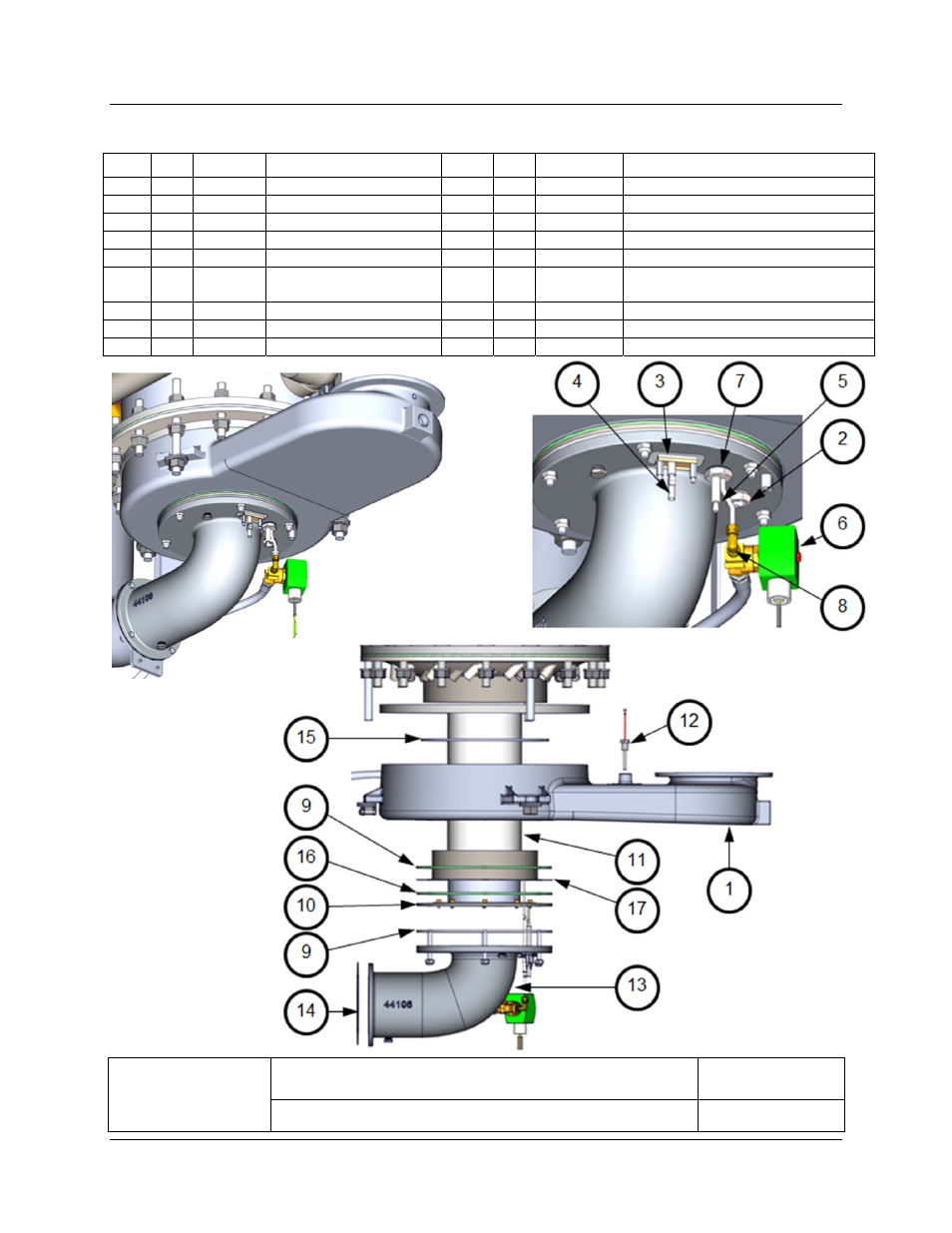

RECON Intake & Exhaust Manifolds
Item Qty Part
#
Description
Item Qty Part
#
Description
1
1
44085‐1
EXHAUST MANIFOLD
10
1
44086
LOW NOX BURNER MTG PLATE
2
1
59104
OBSERVATION PORT
11
1
46022
LOW NOX BURNER HEAD ASSEMBLY
3
1
81048
GASKET: FLAME DETECTOR
12
1
61020
EXHAUST TEMPERATURE SENSOR
4
1
66037
FLAME DETECTOR
13
1
44106
INTAKE MANIFOLD
5
1
66026
IGNITER‐INJECTOR
14
1
81136
INTAKE MANIFOLD FLANGE GASKET
6
1
24247
IGNITION SOLENOID
15
1
GP‐122537
MANIFOLD TO COMBUSTION CHAMBER
GASKET
7
4
53033
WASHER: CLOCKING
16
1
81197
SHIELD GASKET
8
1
93288
ELBOW, COMPRESSION
17
1
49209
CONDENSATE SHIELD
9
2
GP‐18899
BURNER FLANGE GASKET
AERCO
International, Inc.
Blauvelt, NY 10913
RECON Intake & Exhaust Manifolds
10/28/2014
Sheet 1 of 1
