10. Remove the bearing locknut (136), the bearing lockwasher (382), and the outboard bearing (112A).
NOTICE: Use force only on the inner race when you press bearings off the shaft. Do not use force
in situations in which you might break a part. Doing so may result in equipment damage.
NOTICE:
Save the bearings for inspection. Do not reuse the bearings. Doing so may result in decreased
performance.
122
382
136
112A

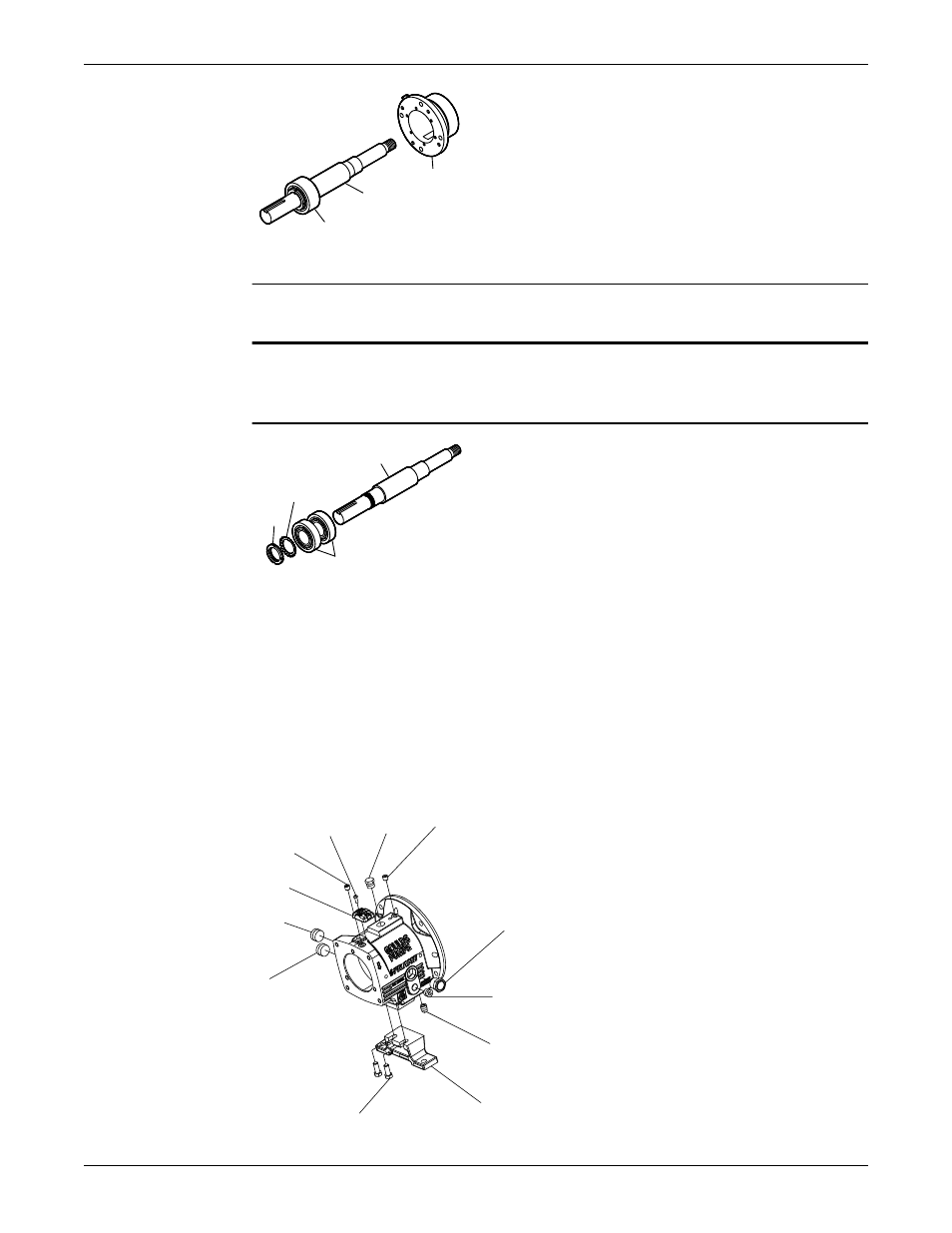

Disassemble the bearing frame
1. Remove these plugs from the bearing frame (228A).
• oil-fill plug (113A)
• oil-drain plug (408A)
• sight-oiler plug (408J)
• four oil mist/grease connection plugs (408H)
• oil-cooler inlet and outlet plugs (408L and 408M) or oil cooler
2. For the MTi and LTi models, remove the bearing frame foot-to-frame bolts (370F) and the frame foot
(241).
319
408N
408A
241
370F
408N
408W
372T 113A 408W
408M
761B
