228A

241

370F

370D

423

134

370C

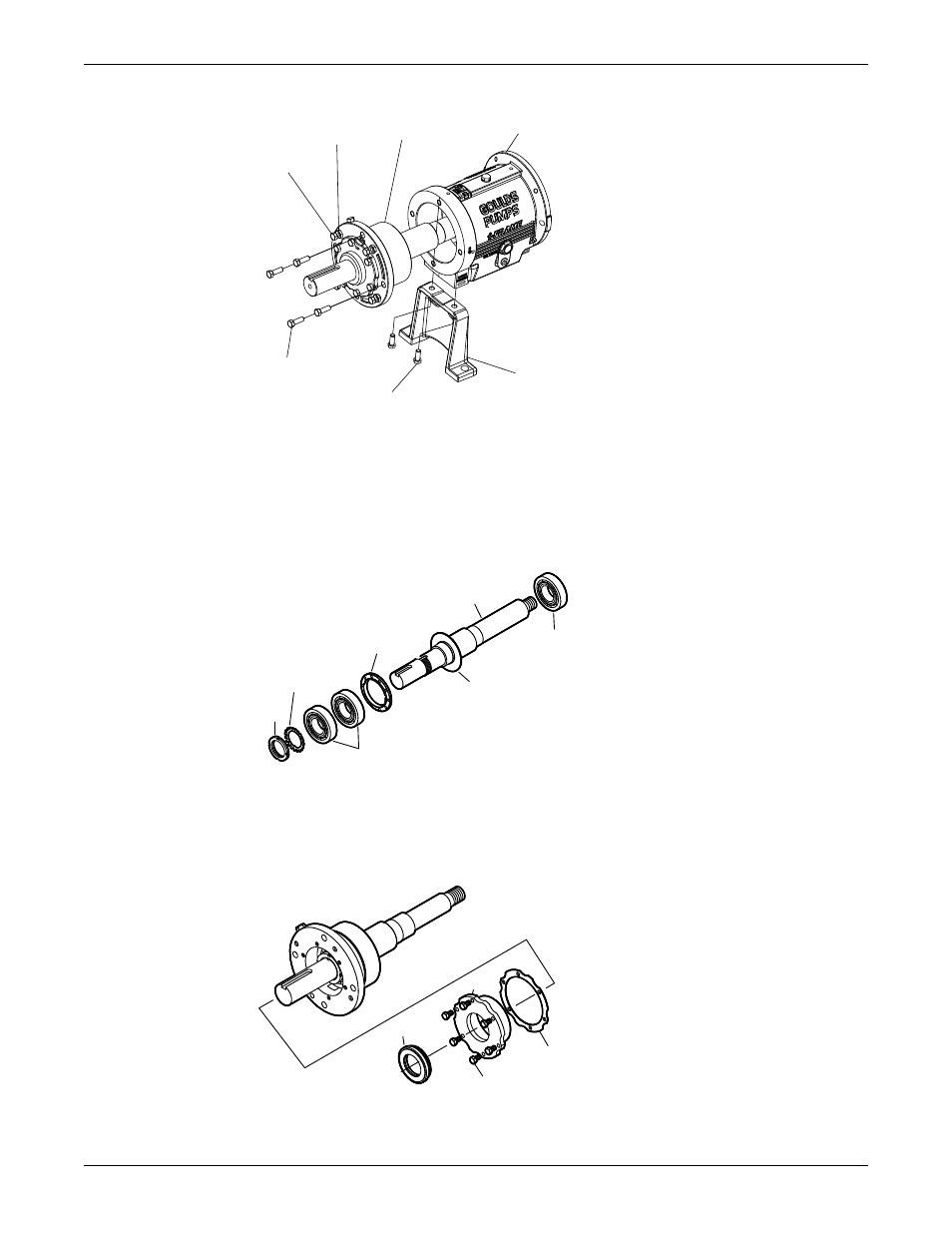

2. Remove the clamp screws (370C) and back off the jam nuts (423).
3. Tighten the jack screws (370D) evenly to move the bearing housing (134) out of the bearing frame

(228A).

4. Remove the shaft assembly from the bearing frame (228A).
5. Remove the jack screws (370D) and the nuts (423).
6. Remove the bearing housing O-ring (496) and the inboard bearing (168A).

122

168A

248A

112A

136

382

253B

7. Remove the bolts (371C), the end cover (109A), and the gasket (360C).
8. If necessary, remove the outboard labyrinth oil seal (332A) from the end cover (109A) and remove the

O-rings (497F and 497G).
Labyrinth oil-seal O-rings are part of the 3196 maintenance kits, or they are sold separately.

109A

332A

371C

360C

9. Remove the bearing housing (134) and bearings (112A) from the shaft (122) .

Maintenance

Model CV 3196 i-FRAME Installation, Operation, and Maintenance Manual
