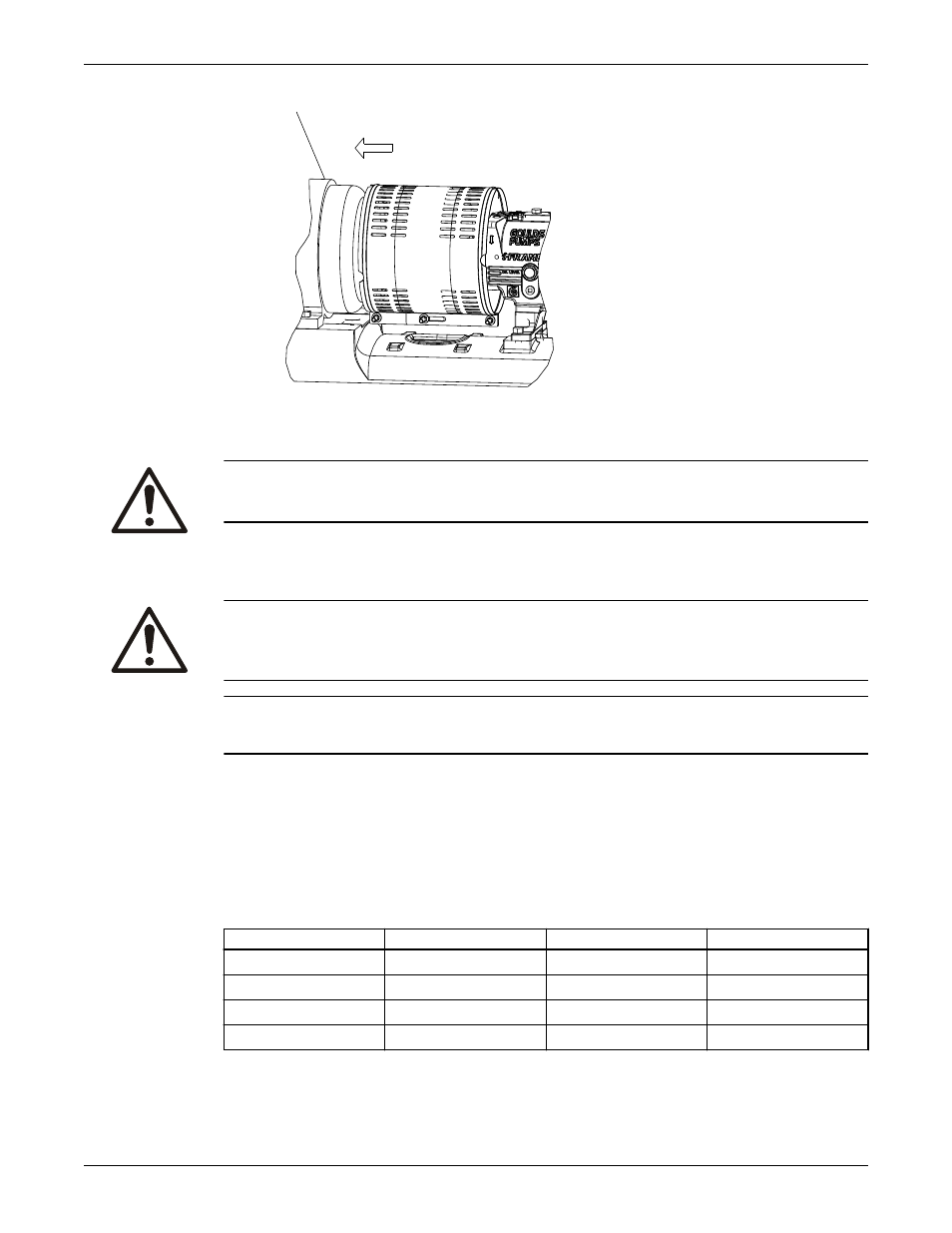

Slide to fit
Driver
10. Use a nut, a bolt, and two washers to secure the coupling guard halves together.
11. Tighten all nuts on the guard assembly.
WARNING:
Never operate the pump without the coupling guard correctly installed.
Bearing lubrication
WARNING:
Make sure to properly lubricate the bearings. Failure to do so can result in excess heat generation, sparks,
and premature failure.
NOTICE: Be certain to check the greasing on a pump that has been out of service for a long period of
time and re-grease if necessary.
Pumps are shipped without oil. You must lubricate oil-lubricated bearings at the job site.
Grease-lubricated bearings are lubricated at the factory.
The bearing manufacturer fills greased-for-life bearings with grease and seals them at the factory. You do
not need to lubricate or seal these bearings.
Oil volumes
Oil volume requirements
This table shows the required amount of oil for oil-lubricated bearings.
Frame Qts. Oz. ml
STi 0.5 16 400
MTi 1.5 47 1400
LTi 1.5 48 1400
XLT-i and i17 3 96 3000
Commissioning, Startup, Operation, and Shutdown
Model CV 3196 i-FRAME Installation, Operation, and Maintenance Manual 49
