UPC-12A/GM45 Panel PC
Page 58

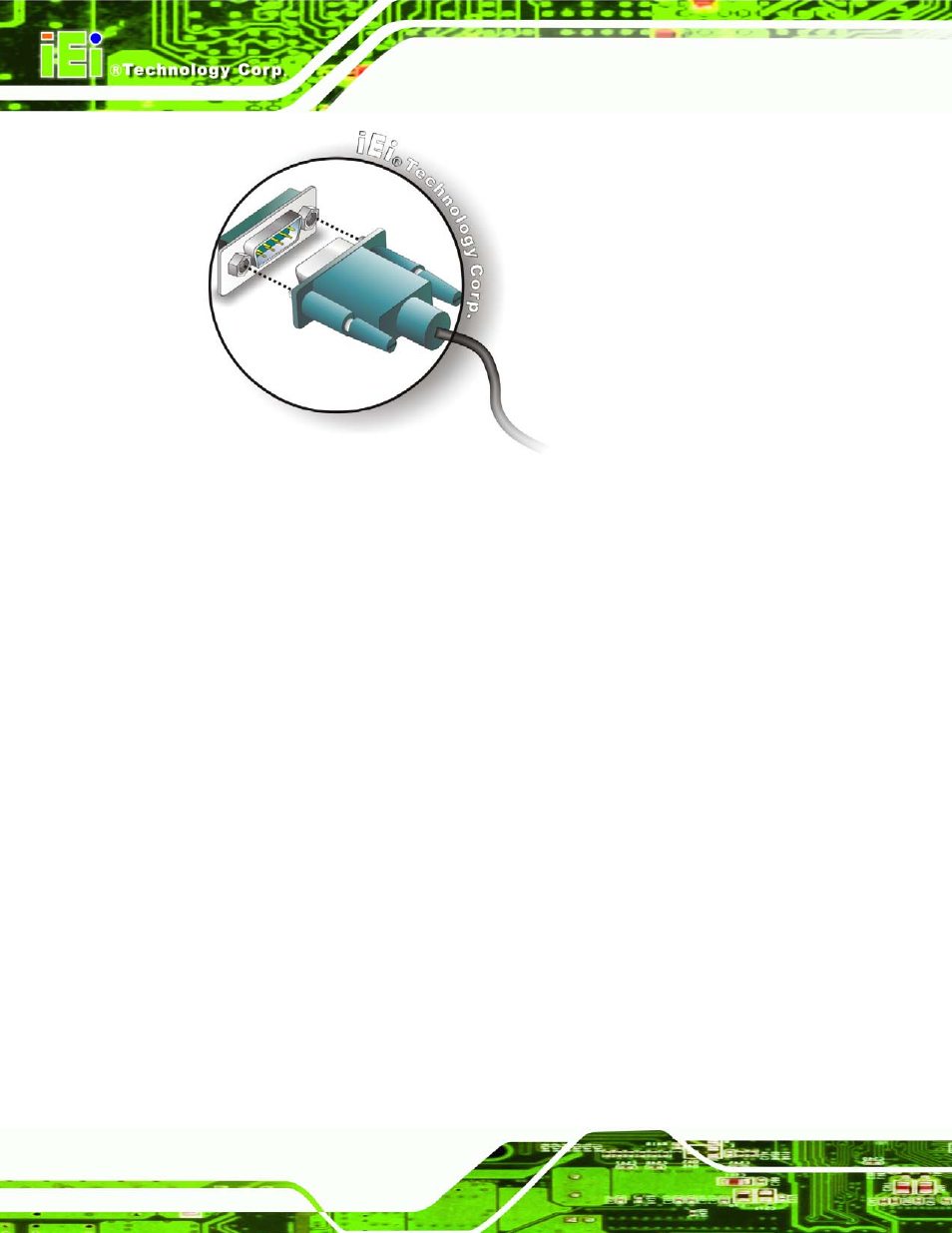

Figure 4-25: Serial Device Connector
Step 3: Secure the connector . Secure the serial device connector to the external
interface by tightening the two retention screws on either side of the connector.
Step 0:
4.12.4 USB Device Connection
There are four external USB 2.0 connectors. All connectors are perpendicular to the
UPC-12A/GM45 series. To connect a USB 2.0 or USB 1.1 device, please follow the
instructions below.
Step 1: Located the USB connectors . The locations of the USB connectors are shown
in Chapter 2.
Step 2: Align the connectors. Align the USB device connector with one of the
connectors on the I/O interface panel. See
573H573H
Figure 4-26 .
