UPC-12A/GM45 Panel PC
Page 112

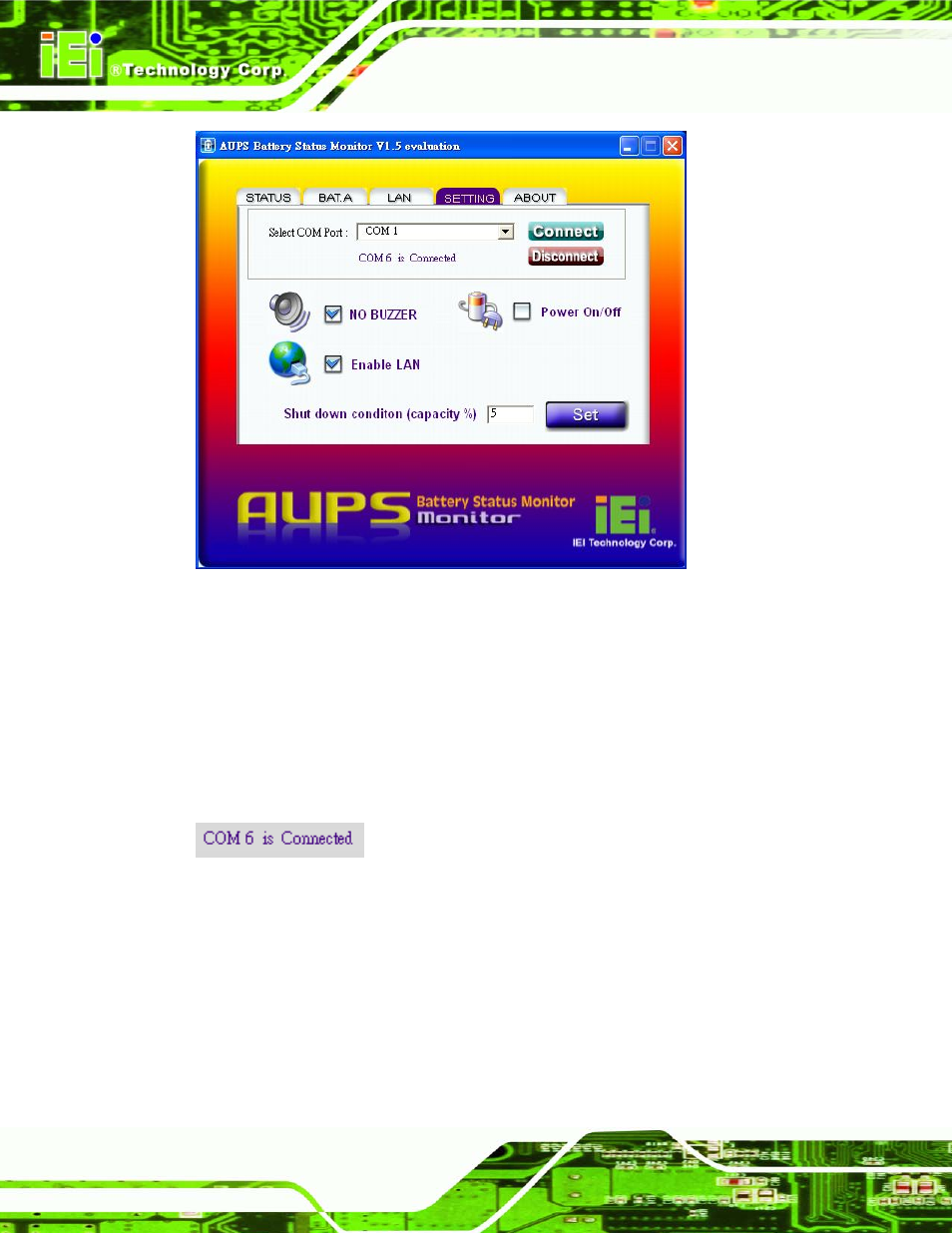

Figure 7-14: Application Setting
When the AUPS Battery Status Monitor application starts up, it automatically scans all
COM port (COM1~COM16) and shows the valid COM port.
628H628H
Figure 7-15 shows the AUPS
application is communicating with UPC-12A/GM45 through COM 6. To change the serial
port to communicate, select a proper port number from the list and click Connect. Before
changing, please make sure the selected serial port is not used by other devices.
Figure 7-15: COM Port Status
