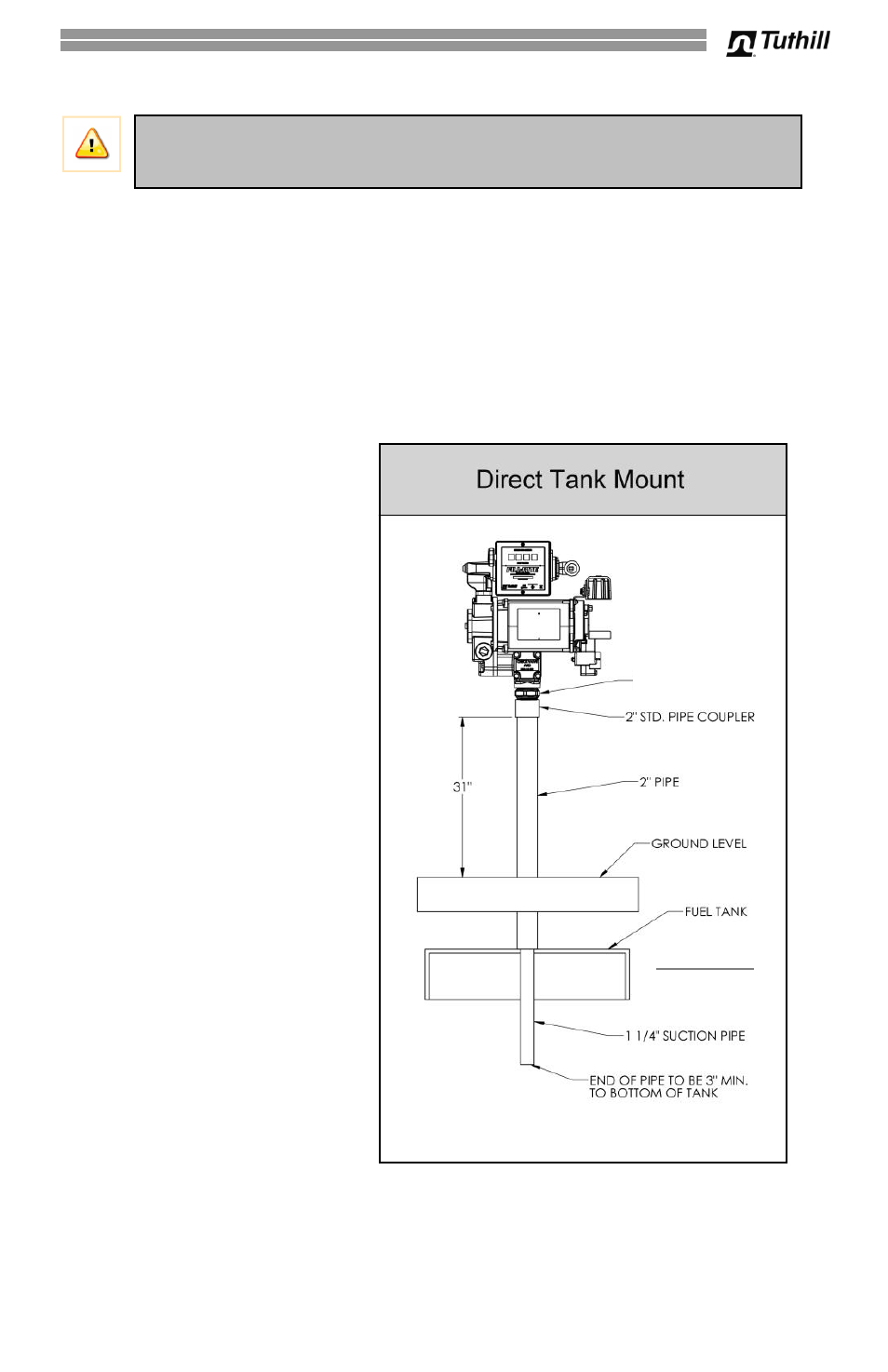

Typical Direct Mount Installation (to underground tank)
Materials:
2” pipe cut to length and threaded at both ends that will extend approximately 31” above
the ground when installed in the tank flange.
1-
1/4” pipe cut to a length that will terminate at least 3” from the bottom of the tank when
installed into the tank adapter with the tank adapter installed into the
2” pipe coupler (see
DIRECT MOUNTING INSTALLATION diagram).
Threaded pipe joint sealant appropriate for application.
Installation Procedure:
1)
Install the 2” pipe in the tank
flange; seal threads liquid tight
with appropriate sealant.
2)
Screw a 2” standard pipe
coupling onto the top of the
pipe; seal threads liquid tight
with appropriate sealant.
3)
Install the 1-
1/4” pipe into the
tank adapter. Seal threads
liquid tight with appropriate
sealant.
4)
Install the tank adapter into the
2” coupling; seal threads liquid
tight with appropriate sealant.
5)
Mount pump on tank adapter;
seal threads liquid tight with
appropriate sealant.
WARNING! Threaded pipe joints and connections should be sealed with the
appropriate sealant or sealant tape to minimize the possibility of leaks.
Additional specifications on page 15.
MAXIMUM LIFT
Gasoline 10’ (3m)
Diesel 18’ (5.5 m)
TANK ADAPTER
