Fill-Rite 300V Series Fuel Transfer Pump - Manual (Page 13)

13
No Part / Kit # Description Kit # Qty
2 KIT300BV
Bypass Kit (includes cap, valve, and
gasket)
1
3
Repair Kit
300KTF7794** Gasket, Lathe Cut, Nitrile 1
5 Pump Rotor, Machined 1
6 Vane, Carbon Epoxy Impregnated 8
11 O-Ring, Flourocarbon, -131 1
15 O-Ring, Flourocarbon,-120 1
16 Inner Seal, Carbon 1
17 O-Ring, Flourocarbon,-114 1
19 Seal Ring 1
21 Spring, Seal 1
22 Washer, Shaft 1
23 Retaining Ring, External 5/8 1
24 Rotor Insert 1
28 Gasket, Lathe Cut, Nitrile 1
30 Bypass Assembly 1
33 Gasket, Lathe Cut, Nitrile 1
50 Rotor Cover 1
51 Attaching Screws 2
60 KIT120NB Standard Nozzle Boot, Cast 1
62 KIT700BG Machined Tank Adapter AST 2 x 1¼ 1
65 N100DAU13
1” Automatic Nozzle (truck diesel
spout)
1
66 KIT300JC
Junction Box Cover (includes
hardware and gasket)
1
80 KIT300MA
Meter Flange (includes hardware and
gaskets)
1
81 KIT300NR Nozzle Retainer (includes hardware) 1
82 KIT300SG Check Valve / Strainer Cover 1
N/S KIT300BD Bio-Diesel Conversion Kit 1
N/S KIT700AS Anti-Siphon Kit See page 7 1
83 KIT300OT
Straight Outlet Flange (includes
hardware and gaskets)
1
N/S KIT300SW Switch Lever (includes attaching nut) 1

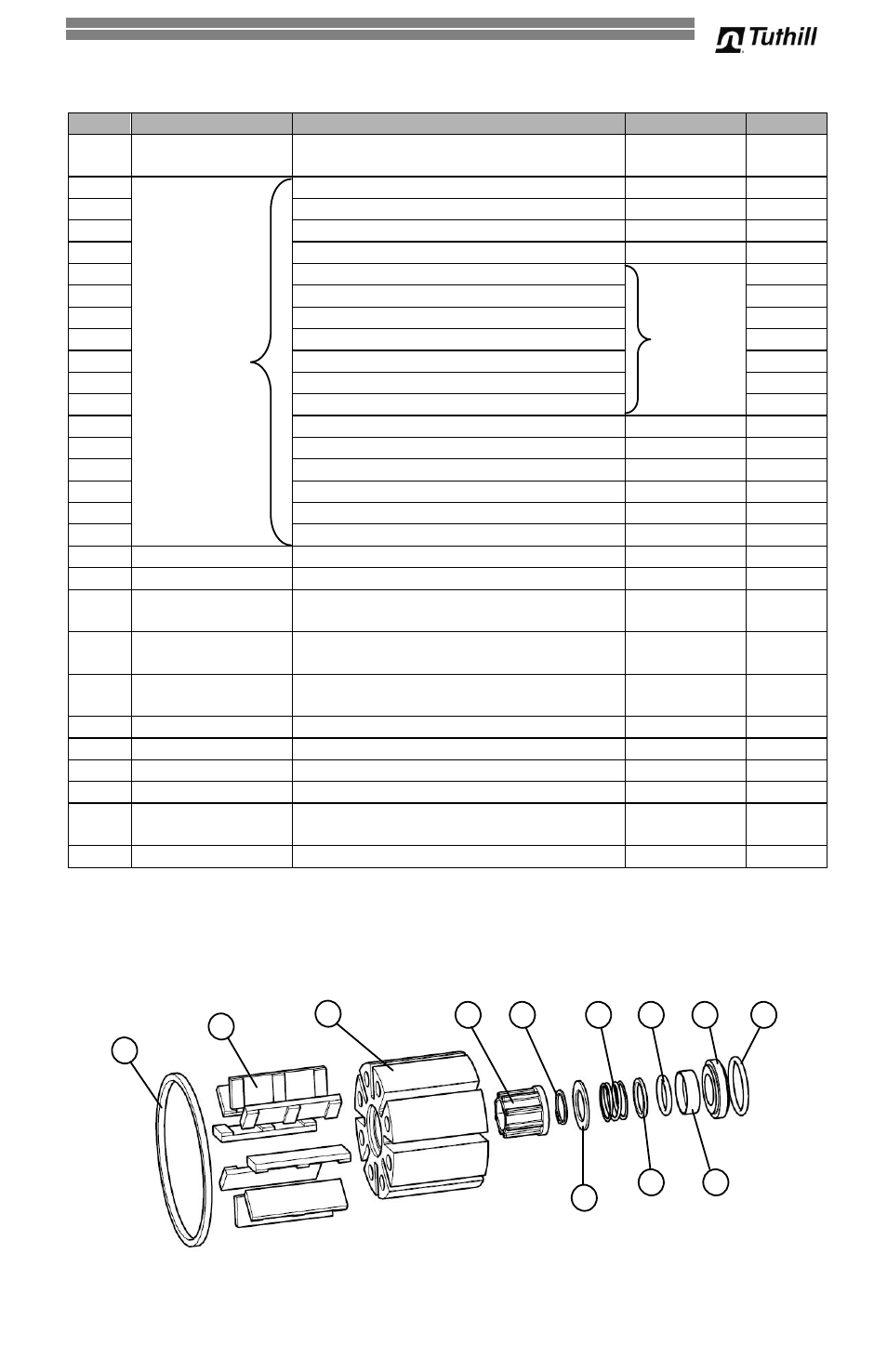

FR300V Parts List
Repair Kit 300KTF7794 and Seal Kit KIT700SL Detail
Seal Kit
KIT700SL
N/S = Not Shown in any diagrams
3
6
5 24 23 21
22
22
17 16
*Rotor cover (50) and screws (51) are included in 300KTF7794
19
15
**Use BD300KTH0712 for model BD310V
