Service Parts
IMPORTANT: THIS IS DATED INFORMATION. When requesting service or replacement
parts for your appliance please provide model number and serial number. All parts listed
in this manual may be ordered from an authorized dealer.
Stocked
at Depot
ITEM DESCRIPTION COMMENTS PART NUMBER
17.1 Shutter Bracket Assembly 2166-157 Y
17.2
Pilot Assembly NG 2103-010 Y
Pilot Assembly LP 2103-011 Y
Pilot Tube SRV485-301 Y
Thermopile 2103-512 Y
Thermocouple 446-511 Y
17.3 3-hole Grommet 2118-420
17.4 Valve Bracket 2118-104
17.5 Flex Ball Valve Assembly 302-320A Y
17.6 Piezo Ignitor 291-513 Y
17.7
Valve NG 2166-300 Y
Valve LP 2166-301 Y
17.8 Male Connector Pkg of 5 303-315/5 Y
17.9 Bulkhead W/Tube 2166-119 Y
17.10 Thermostat Wire Assembly 2045-024 Y
Burner Orifi ce NG (#37C)
6000C
582-837 Y
Burner Orifi ce LP (#52C) 582-852 Y
Burner Orifi ce NG (#33C)
8000C
582-833 Y
Burner Orifi ce LP (#50C) 582-850 Y
Wire Assembly 040-557A
Additional service part numbers appear on following page.

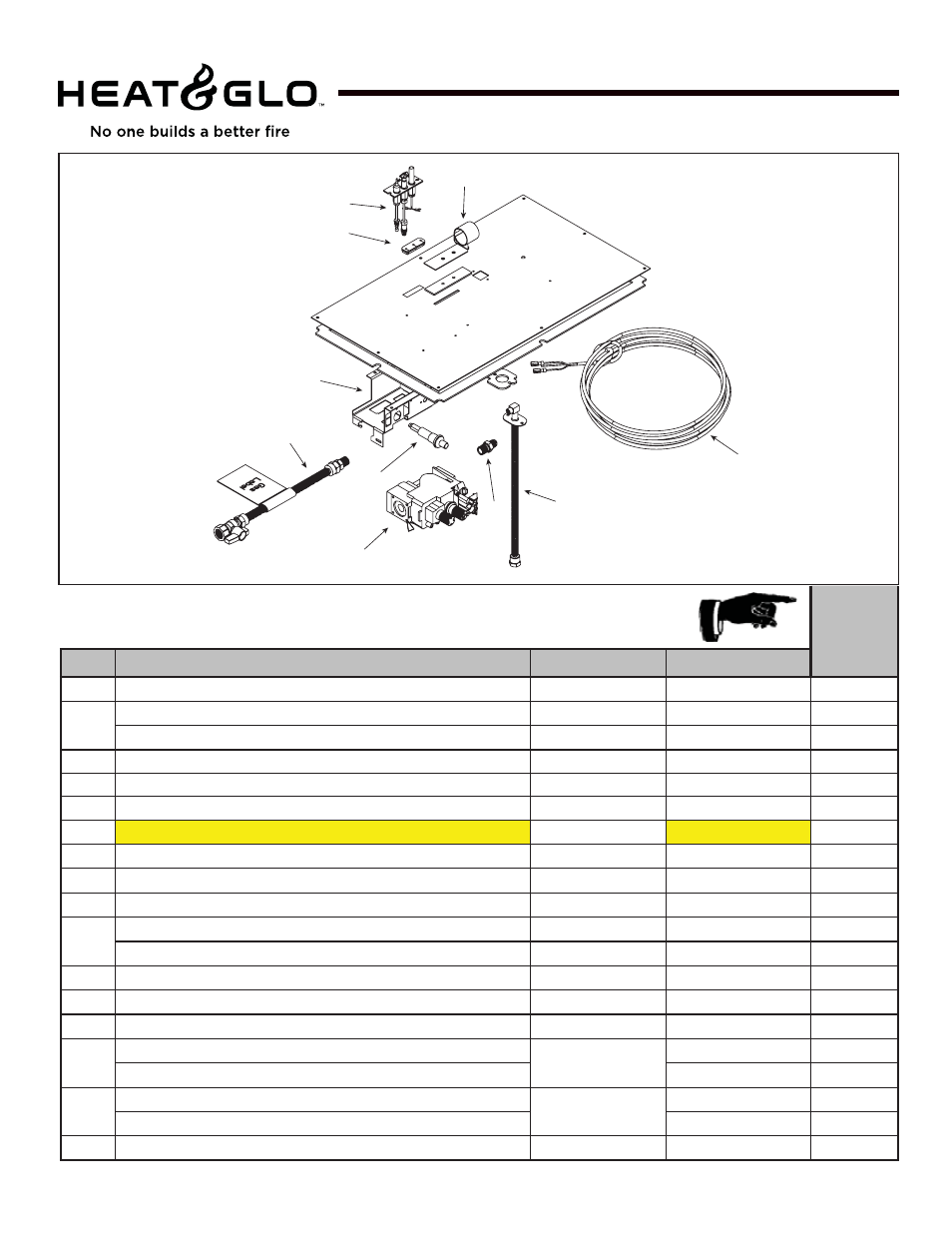

#17 Valve Assembly
6000C, 8000C
17.1
17.2
17.10
17.3
17.4
17.5
17.6
17.7
17.8
17.9
Beginning Manufacturing Date: Aug 2009
Ending Manufacturing Date: Jan 2010
