Figure 7
2 3
1

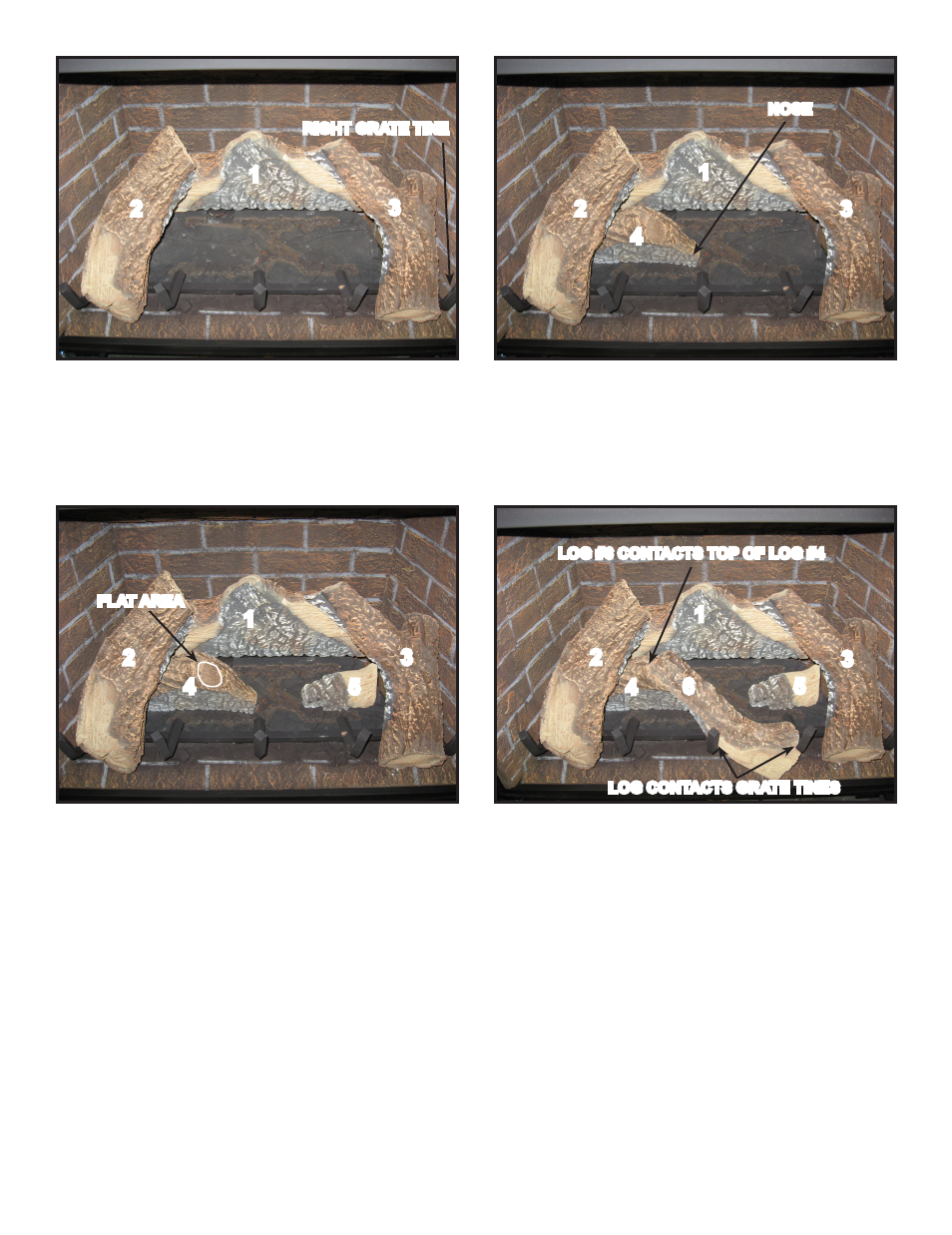

Log #3 (SRV2164-703): Mate the slot located on the bottom of Log #3 with the right log placement tab on top of Log #1.
After slot and tab have been fitted together, mate the groove located on the bottom of Log #3 with the horizontal grate bar
and slide Log # 3 toward the right until it rests against the far right grate tine (see Figure 7).
Log #4 (SRV2164-704): Place Log #4 in the left log indentation on the burner top (see Figure 2). Slide Log # 4 from right
to left under Log #2 to fit completely and securely into the indentation (see Figure 8). Nose of log #4 should be pulled to fit
securely against right hand side of log indentation.
RIGHT GRATE TINE
1
2 3
4
Figure 8
Figure 9 Figure 10
1
1
2 2 3 3
4 5 5 6
Log #5 (SRV2164-705): Place Log #5 in the right log indentation on the burner top (see Figure 2). Ensure the log fits
completely and securely in the recessed indentation (see Figure 9). Log #5 should be pulled to the left hand side of log
indentation.
Log #6 (SRV2164-706): Mate the groove located on the lower end of Log #6 with the fourth grate tine (from left to right) as
shown in Figure 10. Set the other end of Log #6 on the flat area located on top of Log #4 (see Figure 9). Log #6 will also
rest against center grate tine. When properly installed, Log #6 will rest securely on all 3 contact points, not allowing move-
ment or shifting.
FLAT AREA
LOG CONTACTS GRATE TINES
4
LOG #6 CONTACTS TOP OF LOG #4
NOSE
2164-935C
