G. Install the Log Assembly Log Assembly: LOGS-6C

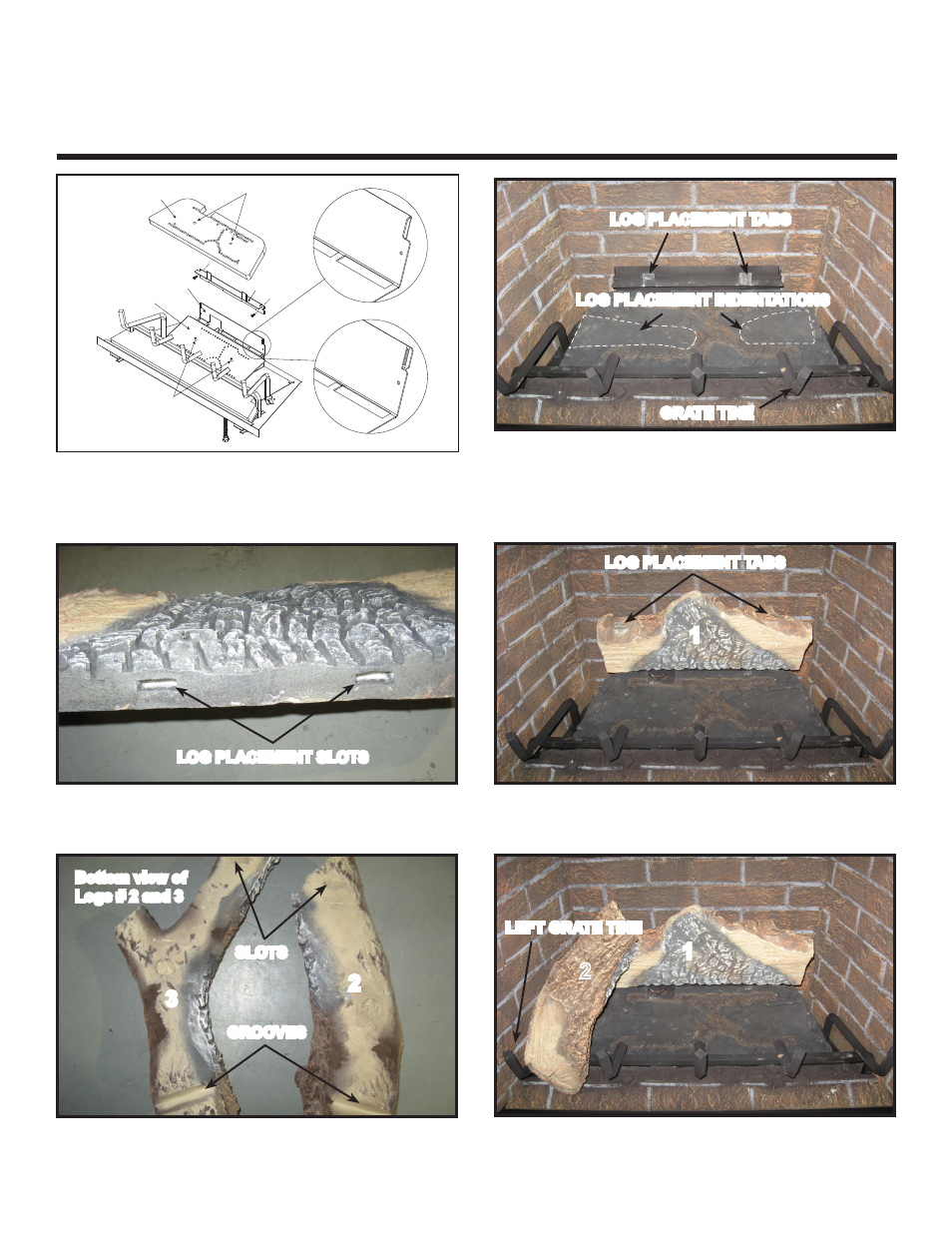

CAUTION: Logs are fragile, handle with care. Log #1 (SRV2164-701): Locate log placement tabs on the pilot cover. Bend
tabs upward as shown in Figure 2. Locate the log placements slots on the bottom of Log # 1 (see Figure 3). Mate the slots
located on the bottom of Log #1 with the log placement tabs on the pilot cover. Log # 1 is properly installed when it sits
squarely and completely on pilot cover with tabs engaged (see Figure 4).
Models: 6000C-IPILP, 6000CBV-IPI
6000C, 6000C-IPI
Figure 3
Figure 1
GUIDE SLEEVES
FIBER BURNER TOP
TAB BENT IN = NG
TAB NOT BENT = LP
BURNER ASSEMBLY
PILOT COVER
LOCATING HOLES
BURNER SHIELD
LOG PLACEMENT TABS
LOG PLACEMENT SLOTS
LOG PLACEMENT TABS
Figure 4
Log #2 (SRV2164-702): Mate the slot located on the bottom of Log #2 with the left tab on top of Log #1. After slot and tab
have been fitted together, mate the groove located on the bottom of Log #2 with the horizontal grate bar and slide Log # 2
toward the left until it rests against the far left grate tine.
GROOVES
SLOTS
Figure 4 shows the log placement tabs located on the top of Log # 1. The tabs will be mated with the slots located on the
bottom of Log #2 and Log #3 (see Figure 5). Log #2 and Log #3 also have grooves that allow the logs to be seated properly
on the grate (see Figure 5). Hold Log #1 upright while placing Log #2.
Figure 5 Figure 6
1
2
1
LEFT GRATE TINE
LOG PLACEMENT INDENTATIONS
GRATE TINE
3
2
Bottom view of
Logs # 2 and 3
Figure 2. Log Placement Tabs
