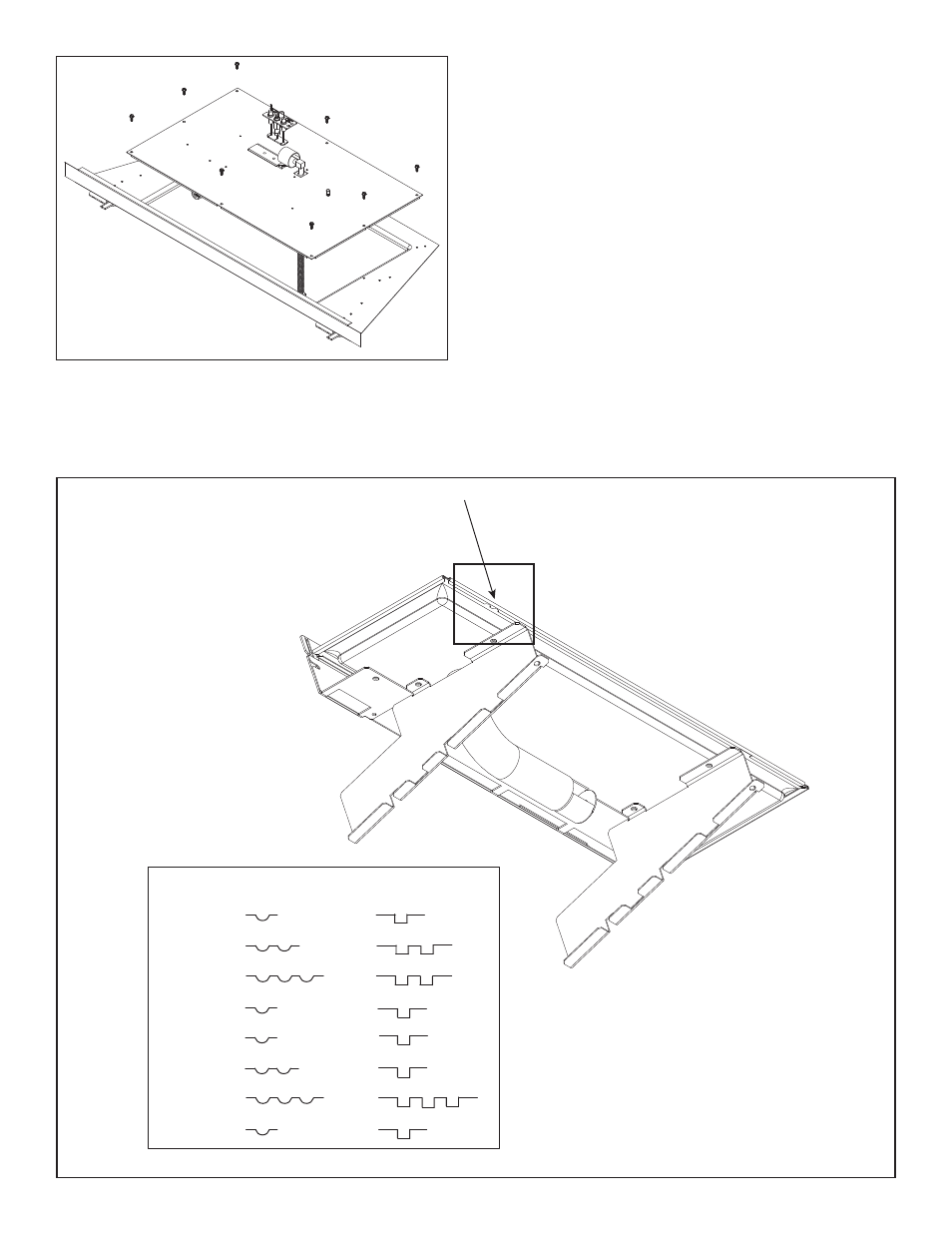

Figure 3.5 Valve Assembly Removal

NOTCH LOCATION

NG LP

6000C

6000CL

6000CLX

6000CBV

8000C

8000CL

8000CLX

8000CBV

Figure 3.6 Burner Identification

D. Burner Identification/Verification

The burner may be accessed for identification and verification purposes. This task should be performed by a qualified ser-

vice technician. The base refractory, valve plate and grate do not need to be removed to access the burner assembly. The

logs and fiber burner top need to be removed to access the burner. Disconnect the pilot from the burner before removal.

See Figure 3.6 for burner identification chart. Notch patterns are located on bottom side of burner.
