Service Parts
IMPORTANT: THIS IS DATED INFORMATION. When requesting service or replacement
parts for your appliance please provide model number and serial number. All parts listed
in this manual may be ordered from an authorized dealer.
Stocked
at Depot
ITEM DESCRIPTION COMMENTS PART NUMBER
Log Set Assembly LOGS-6C Y
1 Log 1 SRV2164-701
2 Log 2 SRV2164-702
3 Log 3 SRV2164-703
4 Log 4 SRV2164-704
5 Log 5 SRV2164-705
6 Log 6 SRV2164-706
7 Insulation Board 2166-136
8 Burner Top SRV2166-100 Y
9
Burner NG 2164-007 Y
Burner LP 2164-008 Y
9.1 Air Scoop 2170-188
9.2 Pilot Cover 2170-181
10 Log Grate 2166-104
11 Base Refractory SRV6BASE-STRAT
12 Refractory Basket 2166-108
13 Glass Door Assembly GLA-6000G Y
14 Surround Assembly 2166-019
15 Finishing Strips (Sold as kit only) SRVFS-6
16 Junction Box 4021-013 Y
Additional service part numbers appear on following page. 9/12

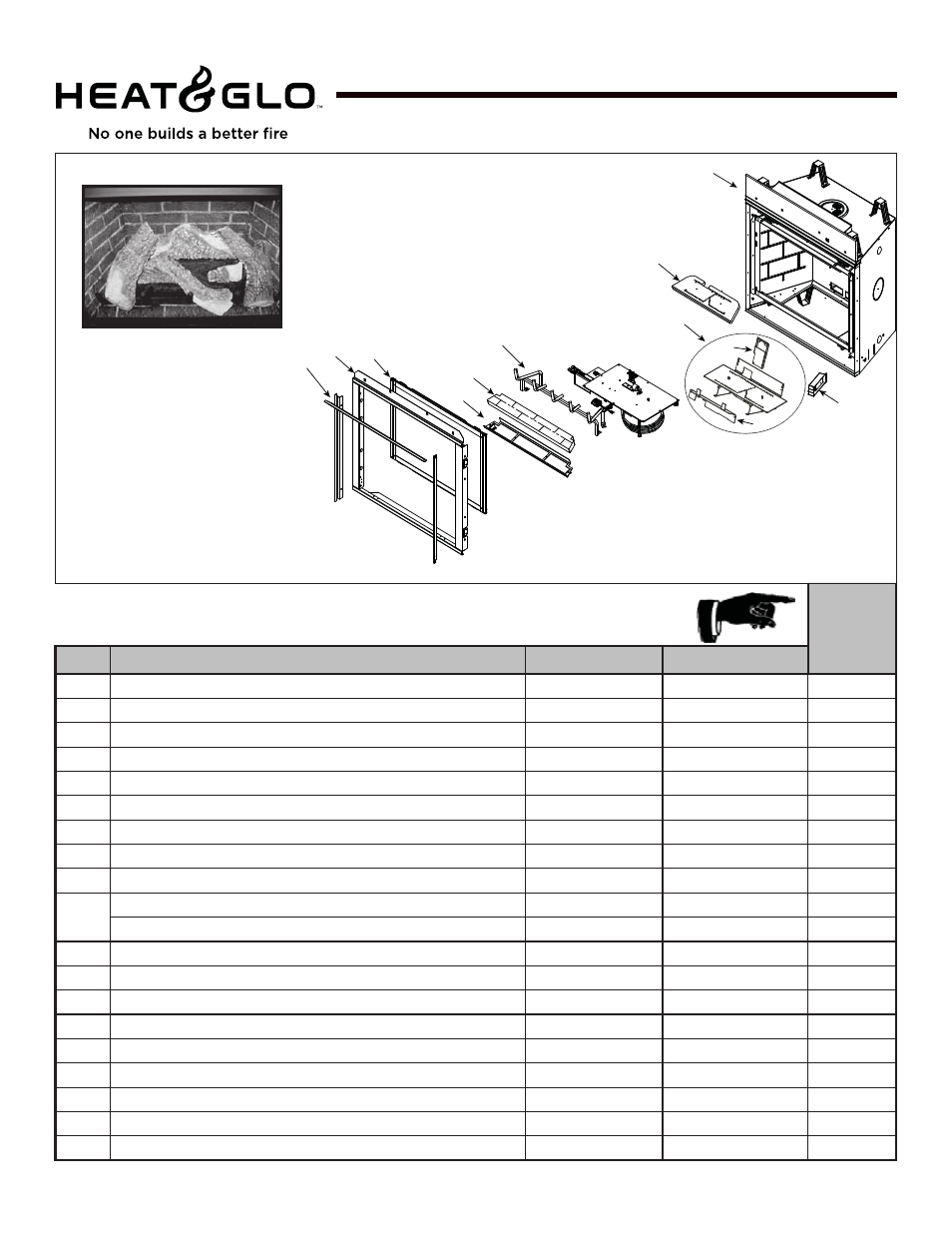

36” Gas Fireplace - DV
Log Set Assembly
6000C, 6000C-IPI
1
6 4
2
5 3
7
8
9
9.1
9.2
10
11
12
13
14
16
15
Beginning Manufacturing Date: Aug 2009
Ending Manufacturing Date: Active
C. Service Parts
