Heat & Glo • 6000C, 6000C-IPI, 8000C, 8000C-IPI • 2164-900 Rev. T • 9/12 18

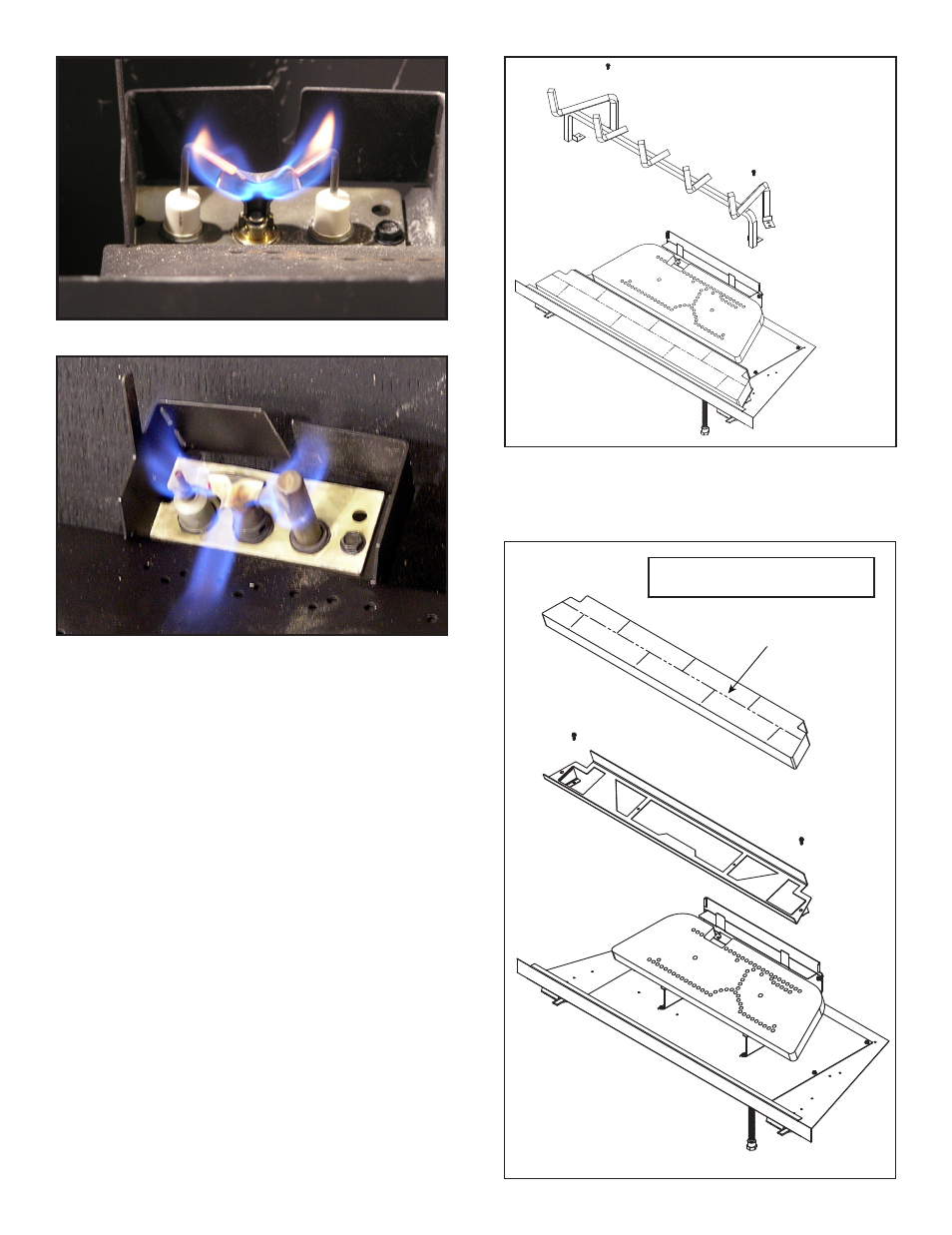

Figure 3.1 IPI Pilot Flame Patterns
Figure 3.2 Standing Pilot Flame Patterns
C. Refractory, Grate and Valve Assembly
Removal
It may become necessary to remove the refractory, grate
and valve assemblies. This task should be performed by
a qualified service technician. The grate and base refrac-
tory do not need to be removed to service the burner
assembly.
Figure 3.3 Grate Removal
BASE REFRACTORY
Note: The base refractory must be
removed to access screws.
Figure 3.4 Base Refractory Removal
