Heat & Glo • 6000C, 6000C-IPI, 8000C, 8000C-IPI • 2164-900 Rev. T • 9/12 65
Figure 7
2 3
1
1
2 3
4
Figure 8
Figure 9 Figure 10
1
1
2 2 3 3
4
5 5
6
4

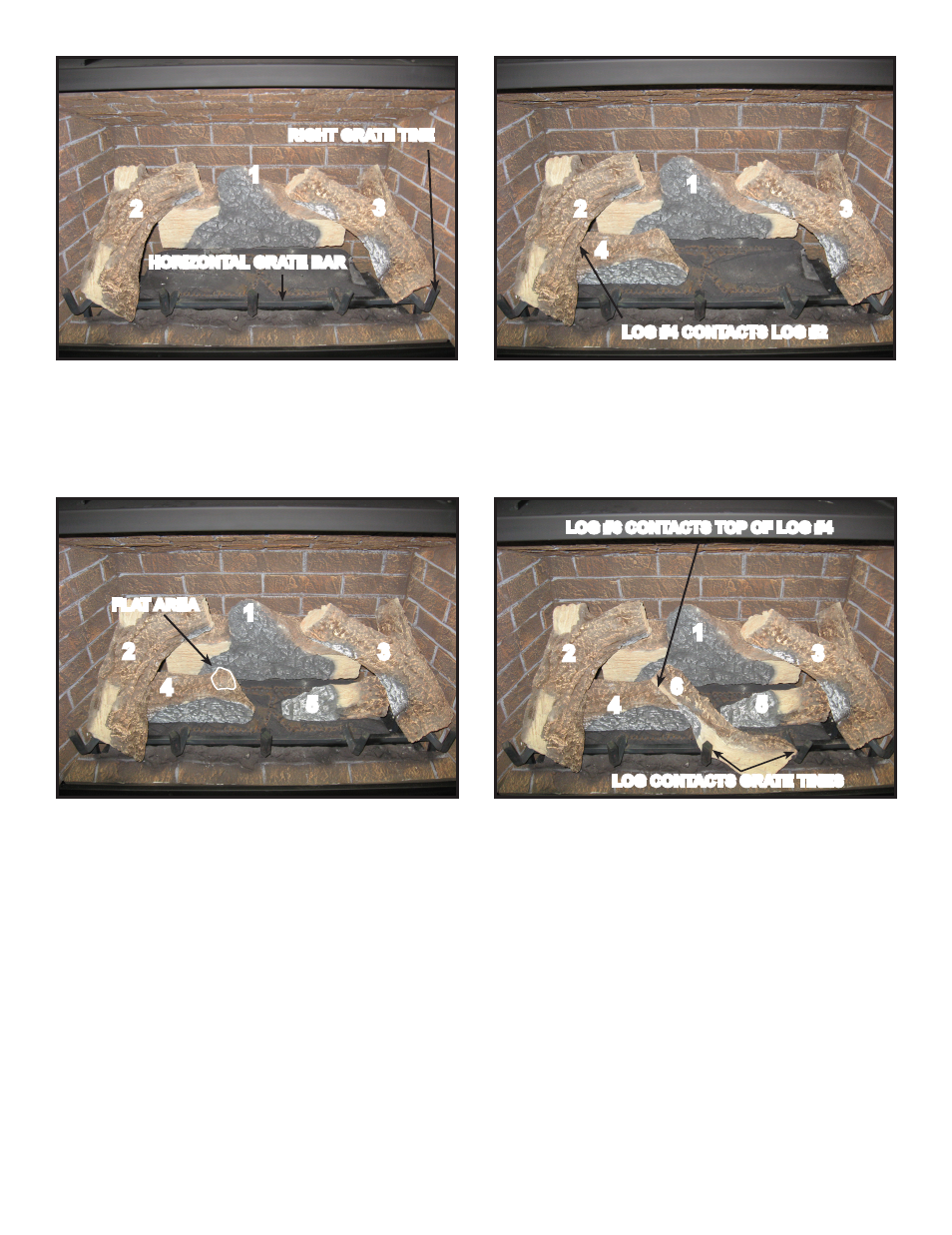

Log #3 (SRV2168-703): Mate the slot located on the bottom of Log #3 with the right log placement tab on top of Log #1.
After slot and tab have been fitted together, mate the groove located on the bottom of Log #3 with the horizontal grate bar
and far right grate tine. Log # 3 will sit down on top of both the grate tine and the horizontal grate bar (see Figure 7).
Log #4 (SRV2168-704): Place Log #4 in the left log indentation on the burner top (see Figure 2). Slide Log # 4 from right to
left under Log #2 to fit completely and securely into the indentation (see Figure 8). The back or Log # 4 should rest against
the far left grate tine as well as contact Log # 2.
Log #5 (SRV2168-705): Place Log #5 in the right log indentation on the burner top (see Figure 2). Ensure the log fits
completely and securely in the indentation (see Figure 9). Log #5 should be pulled to the left hand side of log indentation.
Log #6 (SRV2168-706): Mate the groove located on the lower end of Log #6 with the fourth tine (from left to right) as
shown in Figure 10. Set the other end of Log #6 on the flat area located on top of Log #4 (see Figure 9). Log #6 will
also rest against center grate tine. When properly installed, Log #6 will rest securely on all 3 contact points, not allowing
movement or shifting.
FLAT AREA
LOG CONTACTS GRATE TINES
LOG #6 CONTACTS TOP OF LOG #4
RIGHT GRATE TINE
LOG #4 CONTACTS LOG #2
HORIZONTAL GRATE BAR
2168-935C
