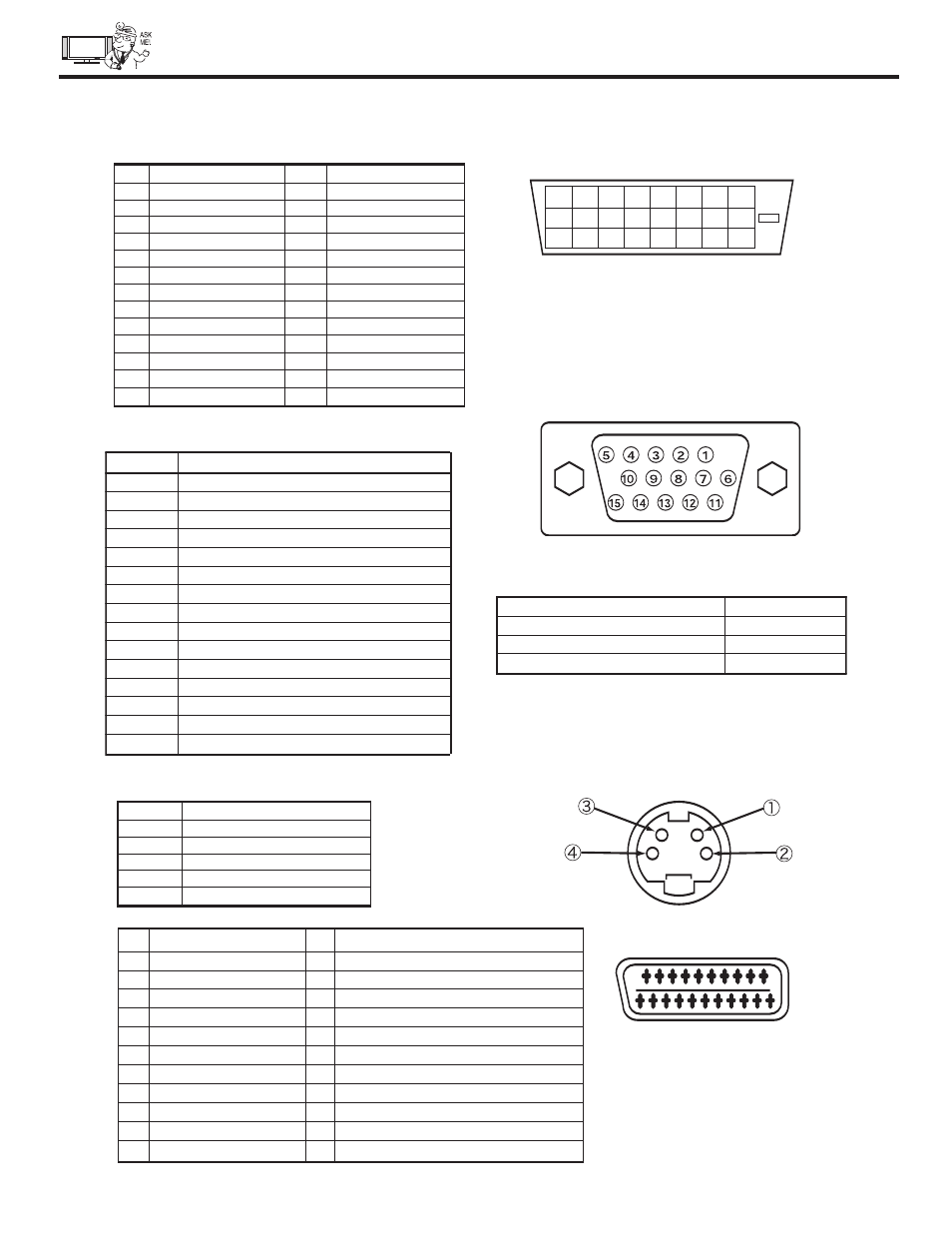

PRODUCT SPECIFICATIONS
78
S-input connector pin specifications
Pin
Input signal
1
Y
2
Y-GND
3
C
4
C-GND
Frame
GND
20
18
16
14
12
10
8
64
2
21 19
17
15
13
11
9
7
5
3
1
Scart connector pin specifications
Pin
Signal
Pin
Signal
1
AUDIO OUT (RIGHT)
12
Not Used
2
AUDIO IN (RIGHT)
13
RGB-R GND
3
AUDIO OUT (LEFT/MONO)
14
GND
4
AUDIO GND
15
RGB-R / S.VHS CHROMINANCE IN
5
RGB-B GND
16
BLANKING SIGNAL
6
AUDIO IN (LEFT/MONO)
17
COMPOSITE VIDEO GND
7
RGB-B IN
18
BLANKING SIGNAL GND
8
AUDIO/RGB SWITCH / 16:9
19
COMPOSITE VIDEO OUT
9
RGB-G GND
20
COMPOSITE VIDEO / S.VHS LUMINANCE IN
10
Not Used
21
GND / SHIELD (CHASSIS)
11
RGB-G IN
RGB terminal (D-sub 15-pin connector)
• When different kinds of input signals are simultaneously input to
the monitor via a graphics board or the like, the monitor will
automatically select the signals in the following priority order:
*Even in the case of the recommended signals shown on the
following page, there may be instances when correct display is
not possible. In this case, use H/V separate sync, H/V composite
sync.
Sync signal type
Priority
H/V separate sync.
1
H/V composite sync.
2
sync.on Green *
3
Pin
Input signal
1
R (P
R
/C
R
)
2
G or sync on green (Y)
3
B (P
B
/C
B
)
4
No connection
5
No connection
6
R.GND (P
R
/C
R
, GND)
7
G.GND (Y, GND)
8
B.GND (P
B
/C
B
, GND)
9
No connection
10
GND
11
No connection
12
[SDA]
13
H. sync or H/V composite sync
14
V.sync. [V.CLK]
15
[SCL]
( ) : With component input
12
3
45
67
8
910 11 12 13 14 15 16
17 18 19 20 21 22 23 24
DVI terminal (DVI-D)
Signal Input
Pin
Input signal
Pin
Input signal
1
T.M.D.S. Data2-
14
+5V Power
2
T.M.D.S. Data2+
15
Ground (for+5V)
3
T.M.D.S. Data2/4 Shield
16
Hot Plug Detect
4
T.M.D.S. Data4-
17
T.M.D.S. Data0-
5
T.M.D.S. Data4+
18
T.M.D.S. Data0+
6
DDC Clock
19
T.M.D.S. Data0/5 Shield
7
DDC Data
20
T.M.D.S. Data5-
8
No Connect
21
T.M.D.S. Data5+
9
T.M.D.S. Data1-
22
T.M.D.S. Clock Shield
10
T.M.D.S. Data1+
23
T.M.D.S. Clock+
11
T.M.D.S. Data1/3 Shield
24
T.M.D.S. Clock-
12
T.M.D.S. Data3-
Frame GND
13
T.M.D.S. Data3+
