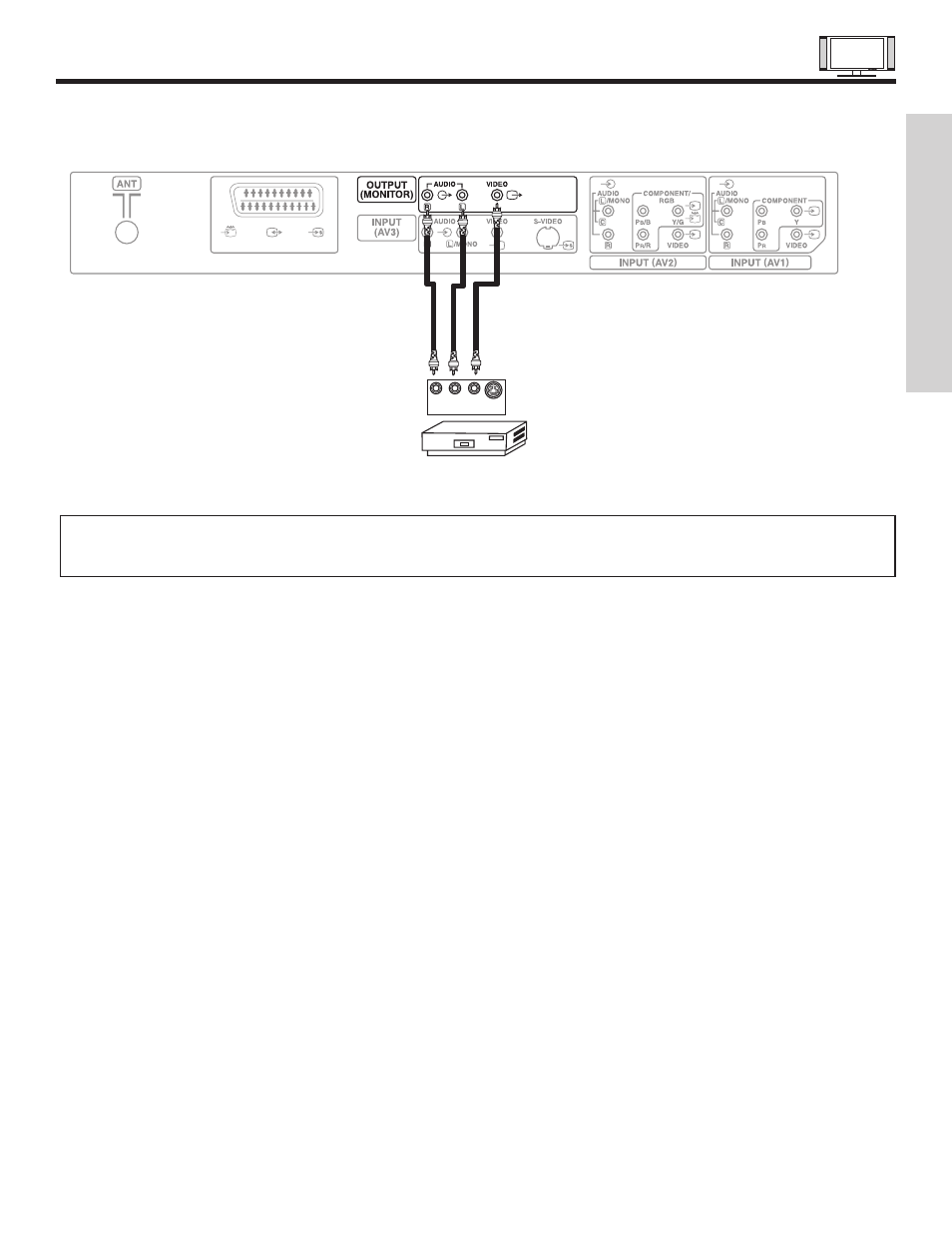

CONNECTING EXTERNAL AUDIO/VIDEO DEVICES
VCR or other external
components
INPUT
R L V S-VIDEO
20
18
16
14
12
10
8
64
2
21 19
17
15
13
11
9
7
5
3
1
The MONITOR OUT terminal outputs video and audio of the ANTENNA and INPUTS AV1, AV2, AV3 and AV4. It does not output
component video.
FIRST TIME USE
NOTE:
If the OUTPUT (MONITOR) terminal is connected to an external monitor with a 75 Ohm terminal, it is possible to view
the same image as on the main unit. But it is possible to monitor only the composite video signal from AV1, AV2, AV3 or
AV4 input that is displayed on the screen at the time.
