FIRST TIME USE
18
CONNECTING EXTERNAL VIDEO SOURCES
CONNECTING A STEREO LASERDISC/DVD PLAYER OR HDTV SET TOP BOX TO AV1 OR AV2 COMPONENT: Y-PBPR.
1.
Connect the cable from the Y OUT of the Laserdisc/DVD player or HDTV set top box to the INPUT (Y) jack, as shown on the
Monitor Rear Panel below.
2.
Connect the cable from the CB/PB OUT or B-Y OUT of the Laserdisc/DVD player or HDTV set top box to the INPUT (PB) jack.
3.
Connect the cable from the CR/PR OUT or R-Y OUT of the Laserdisc/DVD player or HDTV set top box to the INPUT (PR) jack.
4.
Connect the cable from the AUDIO OUT R of the Laserdisc/DVD player or HDTV set top box to the INPUT (AUDIO/R) jack.
5.
Connect the cable from the AUDIO OUT L of the Laserdisc/DVD player or HDTV set top box to the INPUT (AUDIO/L) jack.
6.
Press the INPUT button, repeatedly till you select AV1 or AV2 to view the program from the Laserdisc/DVD player or HDTV set
top box. The VIDEO label disappears automatically after approximately four seconds.
7.
Press the INPUT button repeatedly till you select the ANTENNA input to return to the previous channel.

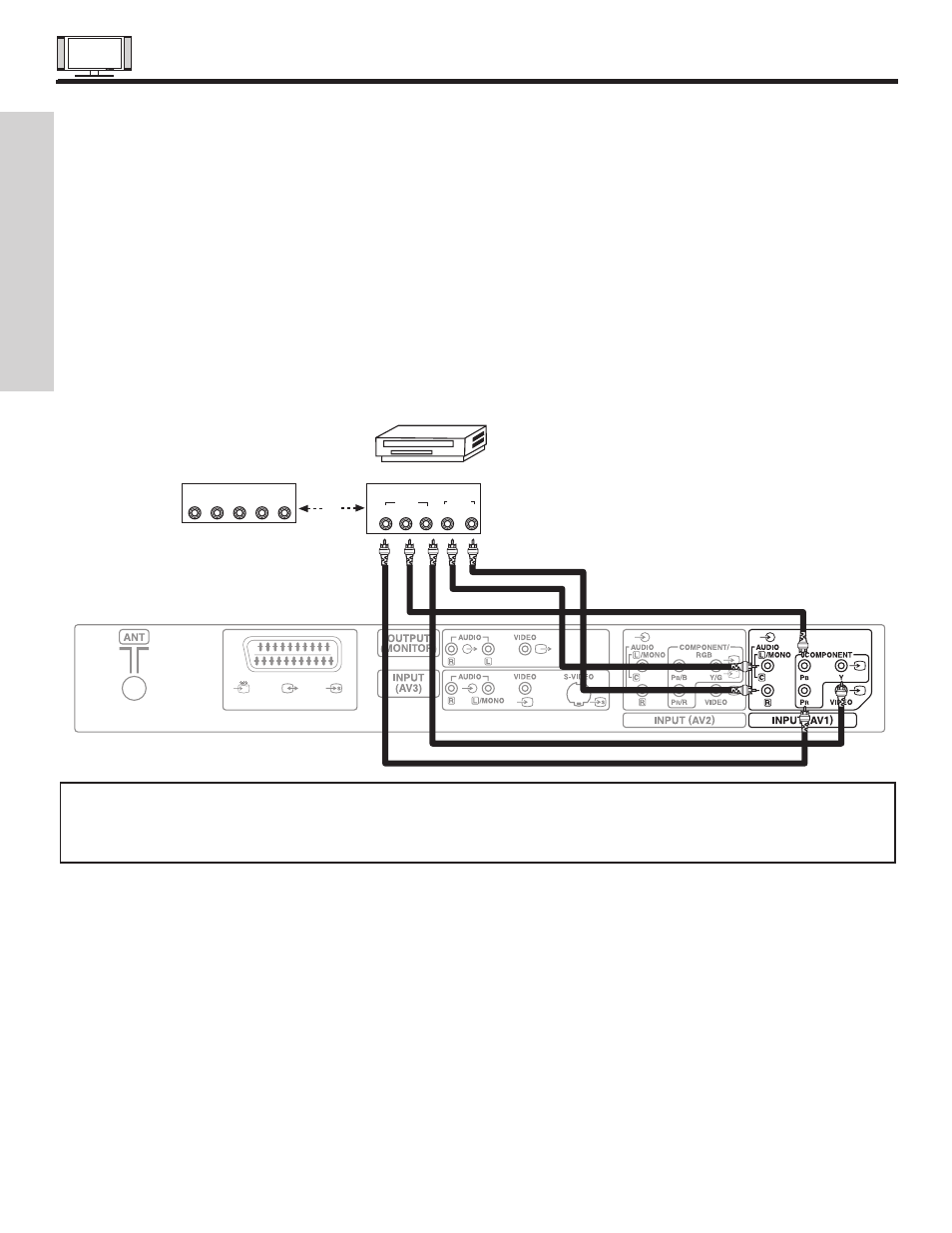

OUTPUT
DVD Player
OR
Back of
DVD Player
OUTPUT
L
R Y P
B
P
R
HDTV Set-Top Box
P
R/
C
R
P
B/
C
B Y
VIDEO
L R
AUDIO
20
18
16
14
12
10
8
64
2
21 19
17
15
13
11
9
7
5
3
1
NOTES:
1. Completely insert the connection cord plugs when connecting to rear panel jacks. The picture and sound that is
played back will be abnormal if the connection is loose.
2. See page 21 for tips on REAR PANEL CONNECTIONS.
