Attach the cushions
to the sides of the
speakers facing the
main unit.

Cushion

Align the cushions
to the front of the
back case and affix
them.

Back case

FIRST TIME USE

HOW TO SETUP YOUR NEW HITACHI

PLASMA DISPLAY TELEVISION

6

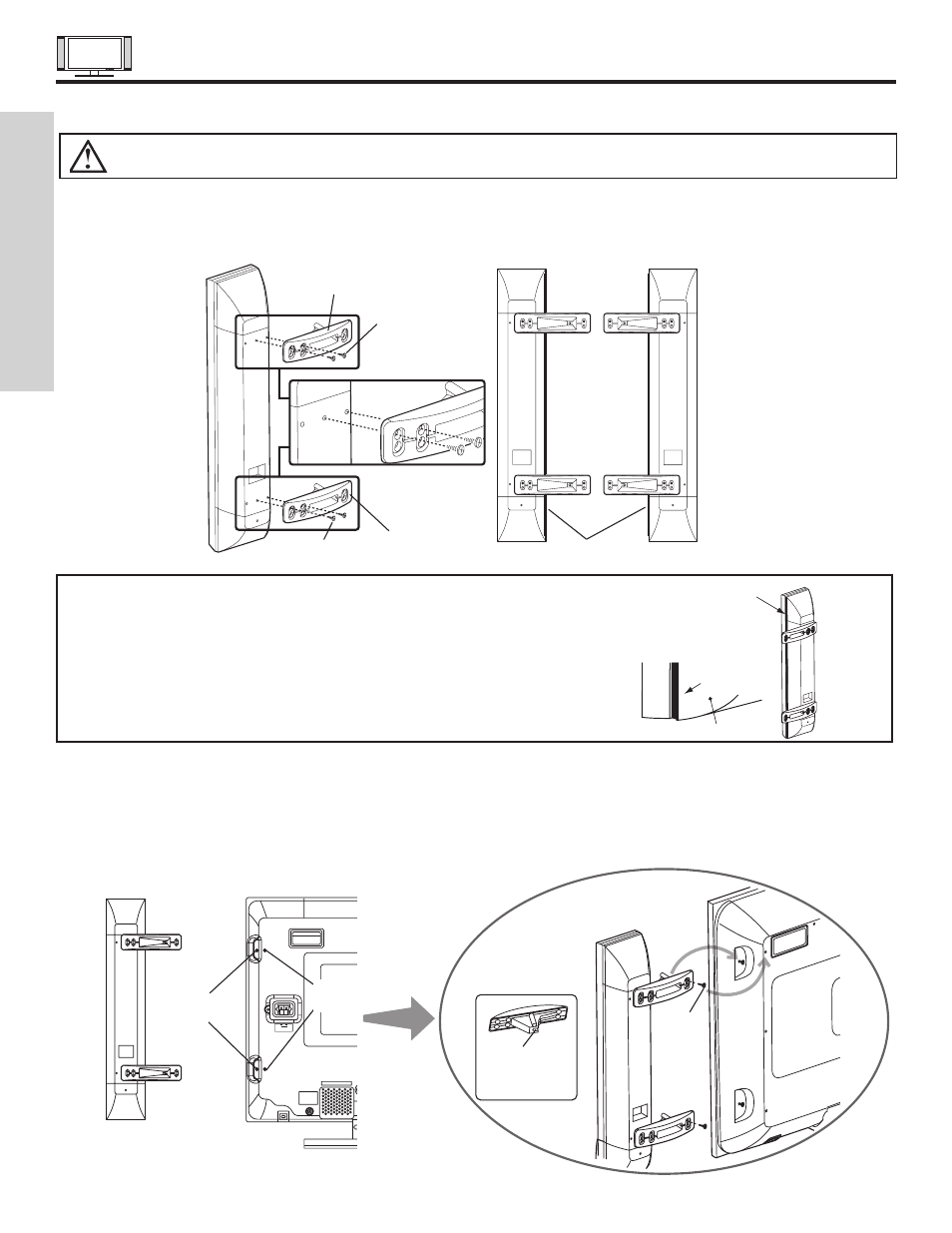

ATTACH THE SPEAKER SYSTEM TO THE MONITOR.

CAUTION:

Make sure the monitor power is switched off (with the standby/ receive lamp switched off or red) before you
connect or disconnect the speaker cables.

1. Attach the speaker brackets to the speaker systems.

Attach the screws in a position that allows you to read the speaker holder orientation markers (R), (L).

screw X 2

screw X 2

Speaker holder

Speaker
holder

(R)

In the case of (R)

(L)

Cushion

L

R

2. Attach the speaker systems to the monitor.

Remove two screws on each side of the monitor as shown and keep them for re-install. Loosen two screws on each
side of the monitor as shown so that the speaker holders can be slide on to them. Insert the loosened screws into the
engaging holes of the speaker holders that are attached to the speaker system, and slide the screws downwards. Next,
use the previously-removed screws to fasten the speaker holders into the mounting holes in the monitor. Tighten the
four screws to secure.

SPEAKER TERMINAL

(8

Ω8W)

Loosen
screws

Monitor rear side

Hook this section
on the loosened
screw

Speaker holder
shown the other side

Remove
screws

Remove
screws

Right side

NOTES:

USE OF CUSHIONS
In some cases, there can be a gap between the main unit and the speaker.
You can attach the cushions provided to the side of the speaker system,
if desired, to eliminate the gap.
