Page 13

FIRST TIME USE

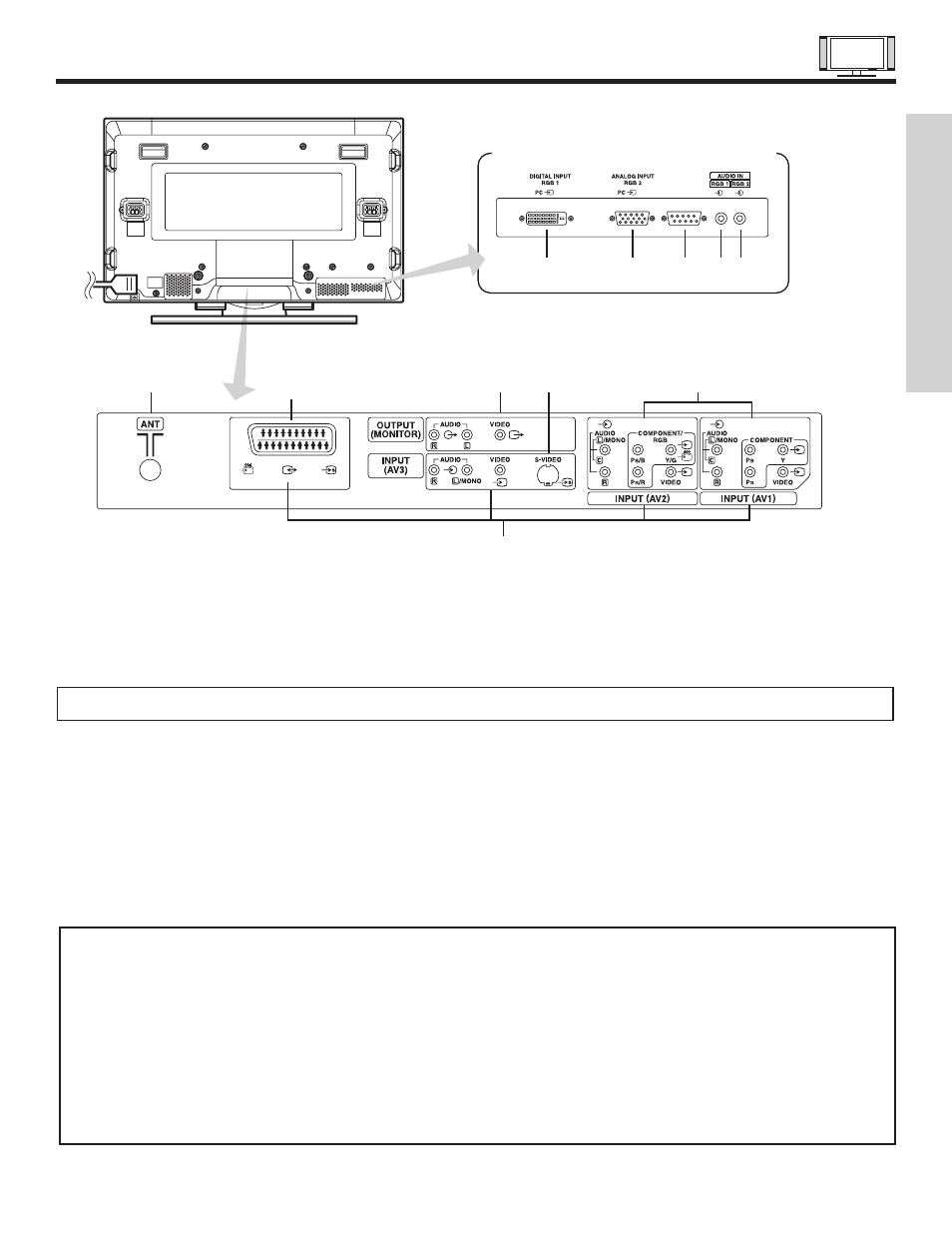

REAR PANEL JACKS

ቦ

Component: Y-P

Inputs

AV1 and AV2 provide Y-P

jacks for connecting equipment with this capability, such as a DVD player or Set Top Box. You may

use composite video signal for AV1 and AV2.

NOTES:

1. S-Video has a higher priority over video input.

2. Your component outputs may be labeled Y, B-Y, and R-Y. In this case, connect the components B-Y output to the

Plasma Monitor’s PB input and the components R-Y output to the Plasma Monitor’s PR input.

3. Your component outputs may be labeled Y-CBCR. In this case, connect the component CB output to the Plasma

Monitor’s PB input and the component CR output to the Plasma Monitor’s PR input.

4. It may be necessary to adjust TINT to obtain optimum picture quality when using the Y-PBPR inputs (See page 36).

5. To ensure no copyright infringement, the MONITOR OUT output will be abnormal, when using the Y-PBPR jacks, and

RGB inputs.

ቢ

Antenna Input
Use the INPUT button to select Antenna.

ባ

Audio/Video Inputs AV1, AV2, AV3 and AV4
By using the INPUT button, or the individual INPUTS buttons of the remote control, you can select each video source. Use the audio
and video inputs to connect external devices, such as VCRs, camcorders, laserdisc players, DVD players etc. (if you have mono
sound, insert the audio cable into the left audio jack).

ቤ

MONITOR OUT
These jacks provide fixed audio and video signals (ANTENNA, AV1~AV4) which are used for recording. Component signal to
Input AV1 and AV2, RGB inputs will not have monitor output.

ብ

S-VIDEO AV3
AV3 provide S-VIDEO (Super Video) jacks for connecting equipment with S-VIDEO output capability.

21 19

ቢ

ቤ

ባ

ብቦ

ቧቨ

ቫ

ቪ

ቩ

External device connection terminals

INPUT (AV4)

SCART

NOTE:

See page 20 for Input AV4 (SCART).
