4-12
Connecting Cables
Video Connection
Video Connection
Model 743 Board Computers with on-board graphics circuit have the display
RAM and can be configured for several types of monitors. Graphic monitors
connect to the 15-pin video connector. Figure 4-5 shows the video connec-
tor, and Table 4-4 shows the video connector pinouts.

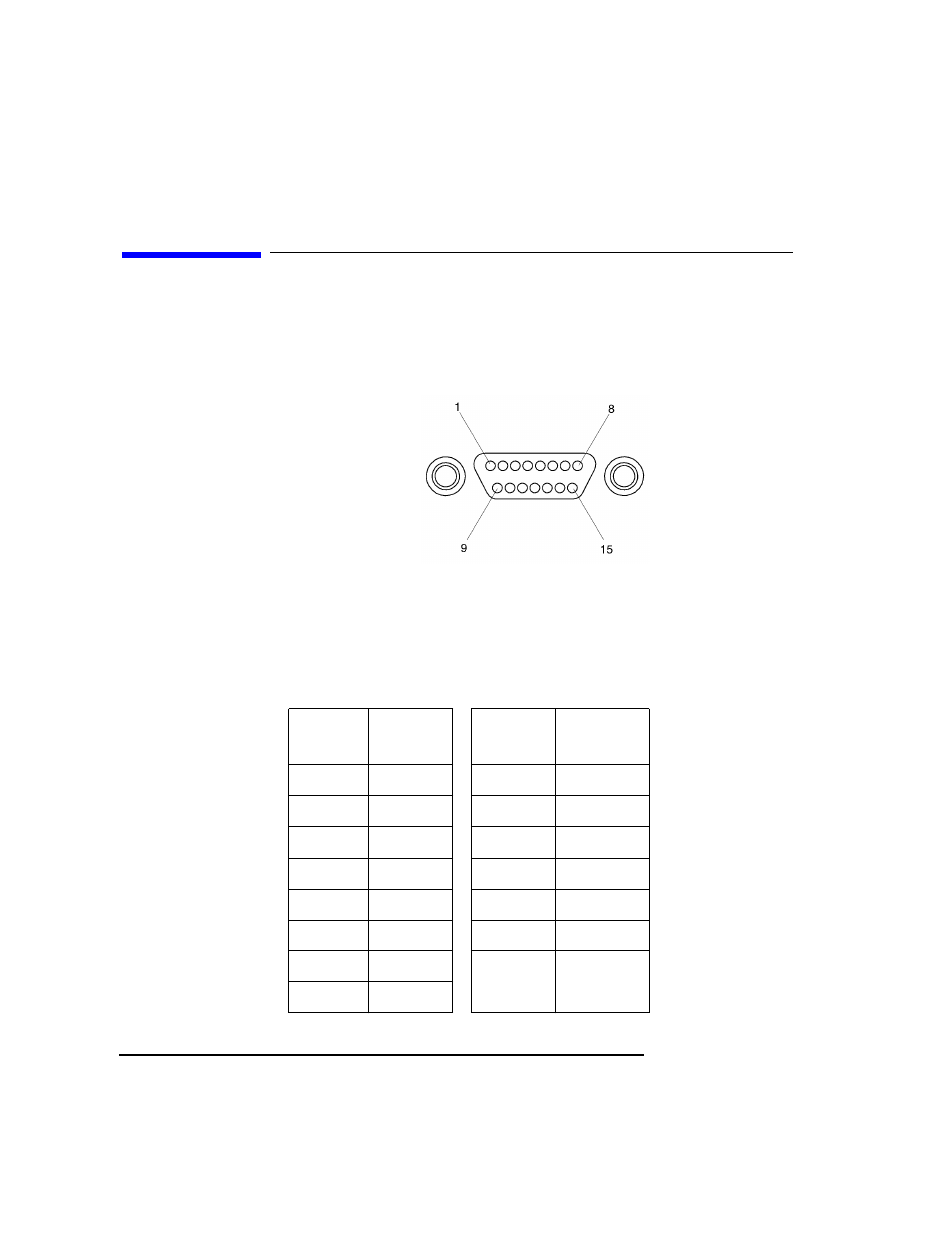

Figure 4-5 Video Connector
Table 4-4 Video Connector Pins and Signals
Pin
Number
Signal
Pin
Number
Signal
1 DDC 9 GND
2 GND 10 HSYNC
3 RED 11 +5V
4 GND 12 GND
5 GREEN 13 SSYNC
6 GND 14 GNC
7 BLUE 15 VSYNC
8 GND
