2-19
Accessories Installation
PMC Bridge Adapter and Expansion Adapter
10 Remove the EMI gaskets from the bezel of the board computer, if in-
stalled.
11 Install the PMC bridge adapter (as shown in Figure 2-10) or the bridge
adapter with expansion adapter (as shown in Figure 2-11) onto the board
computer. Align the GSC connector first, then the tabs on the front panel,
and push the boards together. There are four screws that secure the front
bezel, and four screws that secure the VME connectors.

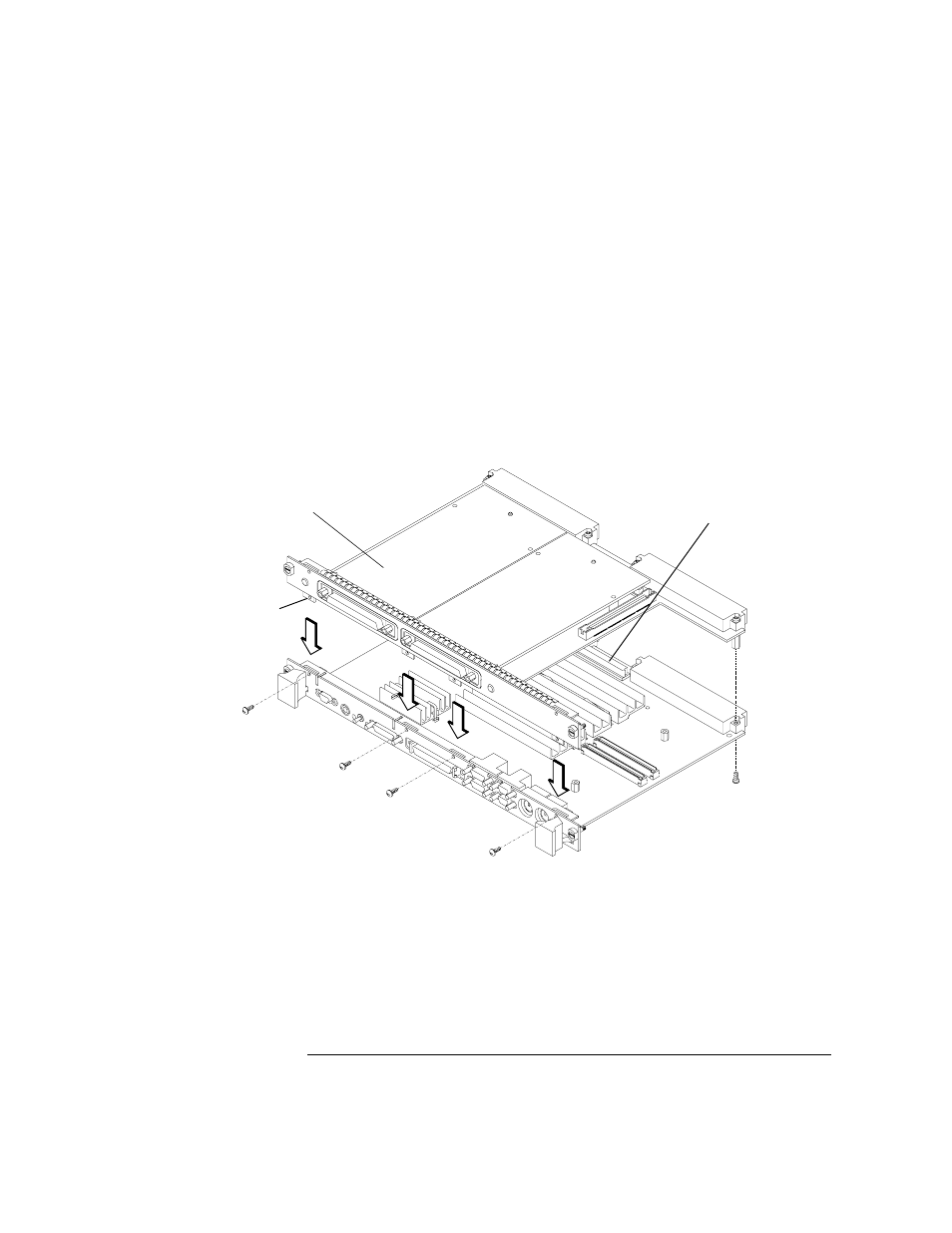

Figure 2-10 Installing the PMC Bridge Adapter onto the Board Computer
Front Bezel Screws (4)
Connector
Screws (4)
PMC Bridge Adapter
with 2 PMC Cards Installed
GSC Connector
Tabs (4)
