139
7 Connectors and Sockets

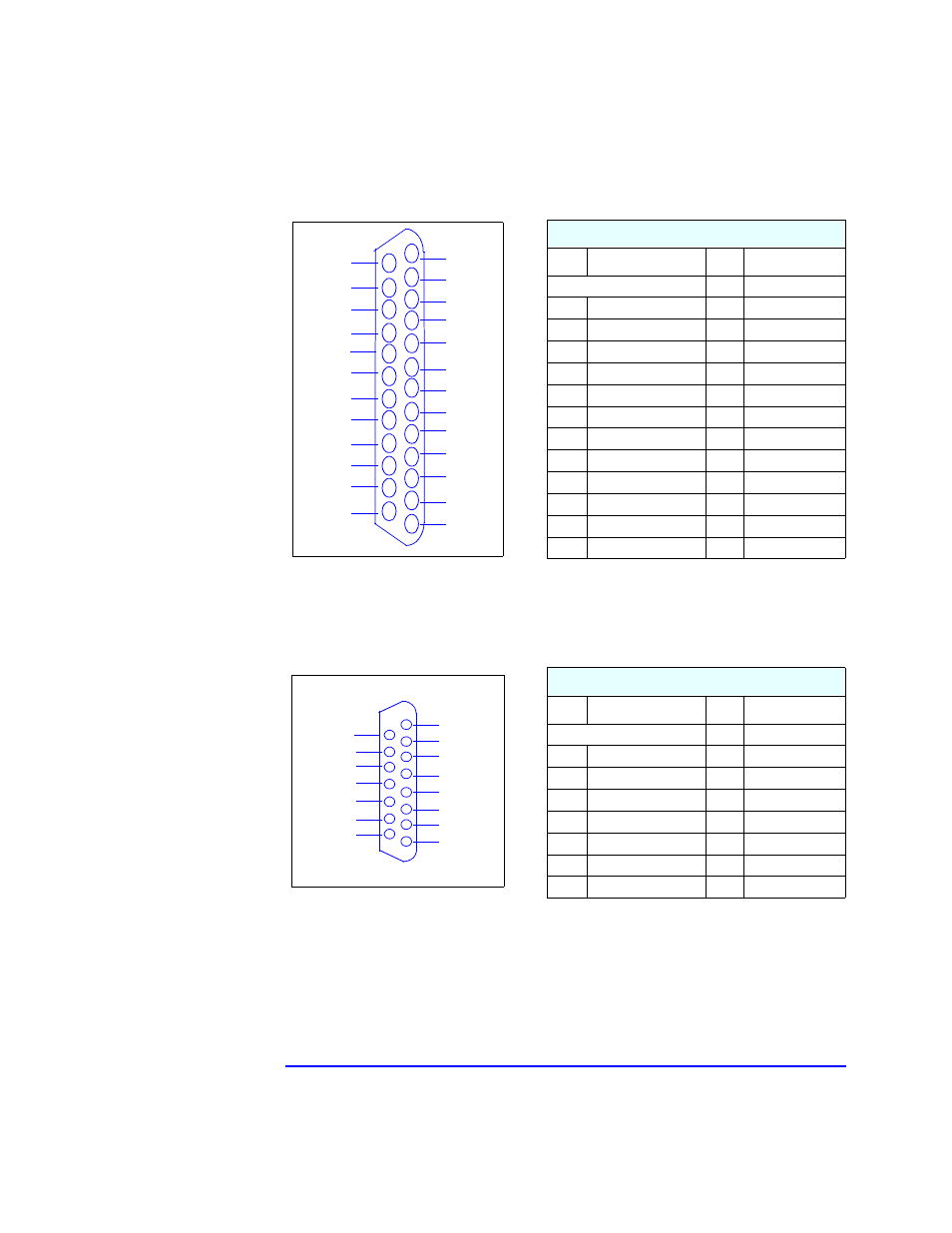

Rear Panel Socket Pin Layouts
25-pin Parallel Connector
MIDI/Joystick
Connector
External Audio Jacks On the PC Workstation there is a Line In jack, Line Out jack and Mic In jack
located on the rear panel. These external jacks are standard connectors.
25-pin Parallel Connector
Pin Signal Pin Signal
13 SLCT
25 Ground 12 PE
24 Ground 11 BUSY
23 Ground 10 ACK
22 Ground 9 D7
21 Ground 8 D6
20 Ground 7 D5
19 Ground 6 D4
18 Ground 5 D3
17 SLIN 4 D2
16 INIT 3 D1
15 ERROR 2 DO
14 AUTO-FD 1 Strobe
13
12
11
10
9
8
7
6
5
4
3
1
2
25
24
23
22
21
20
19
18
17
16
15
14
MIDI/Joystick Connector
Pin Signal Pin Signal
8 +5 V
9 +5 V 7 A-2
10 B-1 6 A-Y
11 B-X 5 Ground
12 MIDI-OUT 4 Ground
13 B-Y 3 A-X
14 B-2 2 A-1
15 MIDI-IN 1 +5 V
9
10
11
12
13
14
15
1
2
3
4
5
6
7
8
