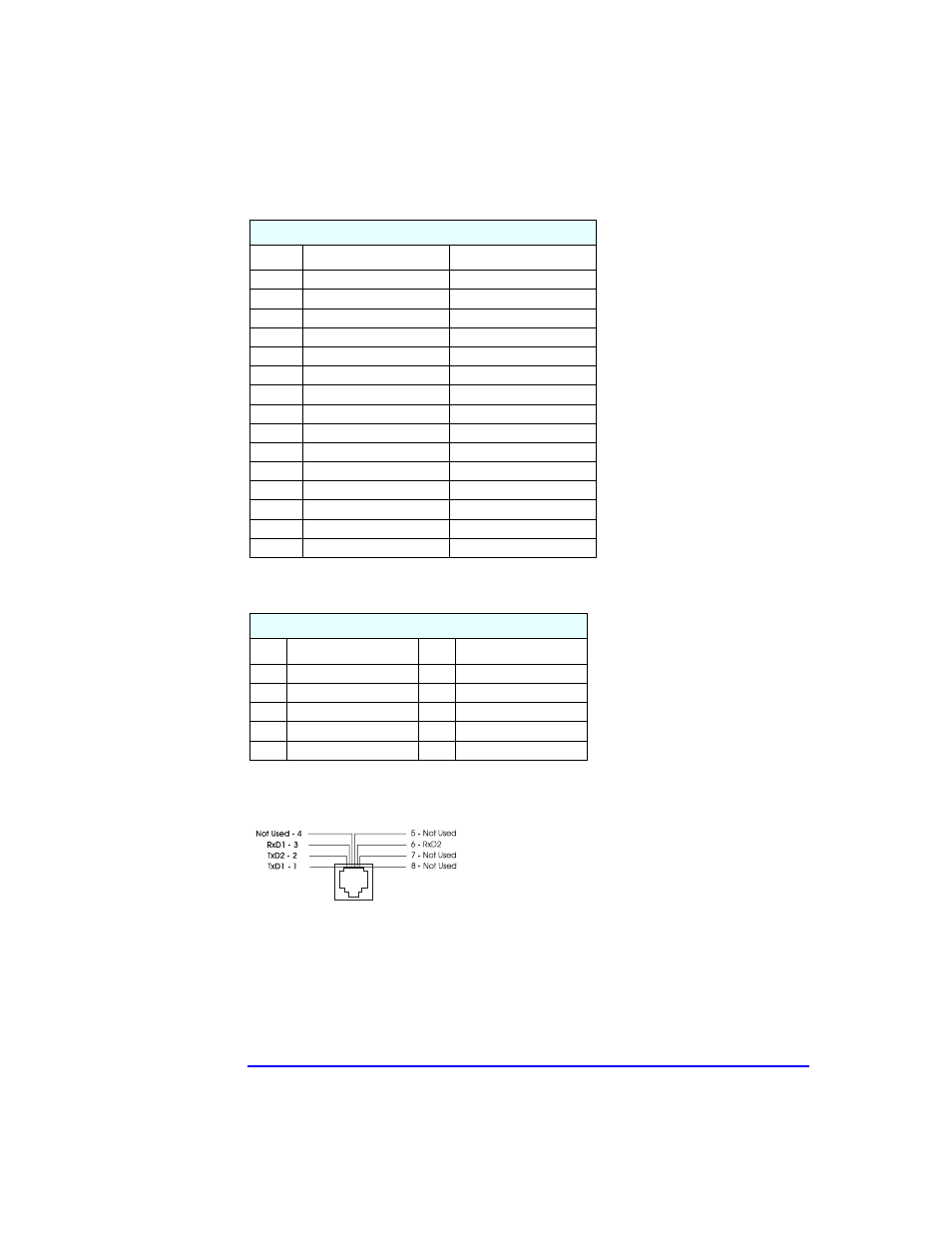

136
7 Connectors and Sockets
VGA DB15 Connector
LCD Panel
Ethernet UTP Connector
VGA DB Connector Pins
Pin Standard VGA DDC2B
1 Analog RED Analog RED
2 Analog GREEN Analog GREEN
3 Analog BLUE Analog BLUE
4 Monitor ID2 Monitor ID2
5 n/c DDC return
6 Analog RED return Analog RED
7 Analog GREEN return Analog GREEN
8 Analog BLUE return Analog BLUE
9 n/c V
CC
supply (optional)
10 Digital ground Digital ground
11 Monitor ID 0 Monitor ID 0
12 Monitor ID 1 Data:SDA
13 HSYNC HSYNC
14 VSYNC VSYNC
15 n/c Clock:SCL
LCD Panel
Pin Signal Pin Signal
1 SCL_5V 2 VSTDBY 5V
3 SDA_5V 4 BT_LCD 1
5 not connected 6 BT_LCD 2
7 RX_BB 8 TX_BB
9 Ground 10 Ground
