Configuring Speaker and Sound Options
39
Connecting 2/2.1 (2 Speakers and a Subwoofer)
Audio Speakers
To connect simple left/right stereo active speakers or
two speakers and a subwoofer for 2.1 speaker
output:
1
Turn off the PC.
2
Connect the speaker cable to the lime green
Audio Line Out connector that matches the
back of your PC.
3
Connect the cable to the audio system. For
2.1 speakers that were shipped with your PC
(select models only), connect the Audio Line
Out connector to the subwoofer.
4
Connect the left and right speakers to the
subwoofer. Refer to the speaker
documentation.
5
Turn on the PC.
6
Plug in the speaker system power.
7
Turn on the speaker system.
Step 8 is optional for a two-speaker setup.
8
After the speakers are connected to the PC,
configure the audio software for sound output
for your PC model:
■ Type 3: See “Configuring Audio Output
with Multi-channel Sound Manager” on
page 48.
■ Type 6: See “Configuring Audio Output
with Sound Effect Manager” on page 50.
■ Sound card: See “Configuring Audio
Output with a Sound Card” on page 53.

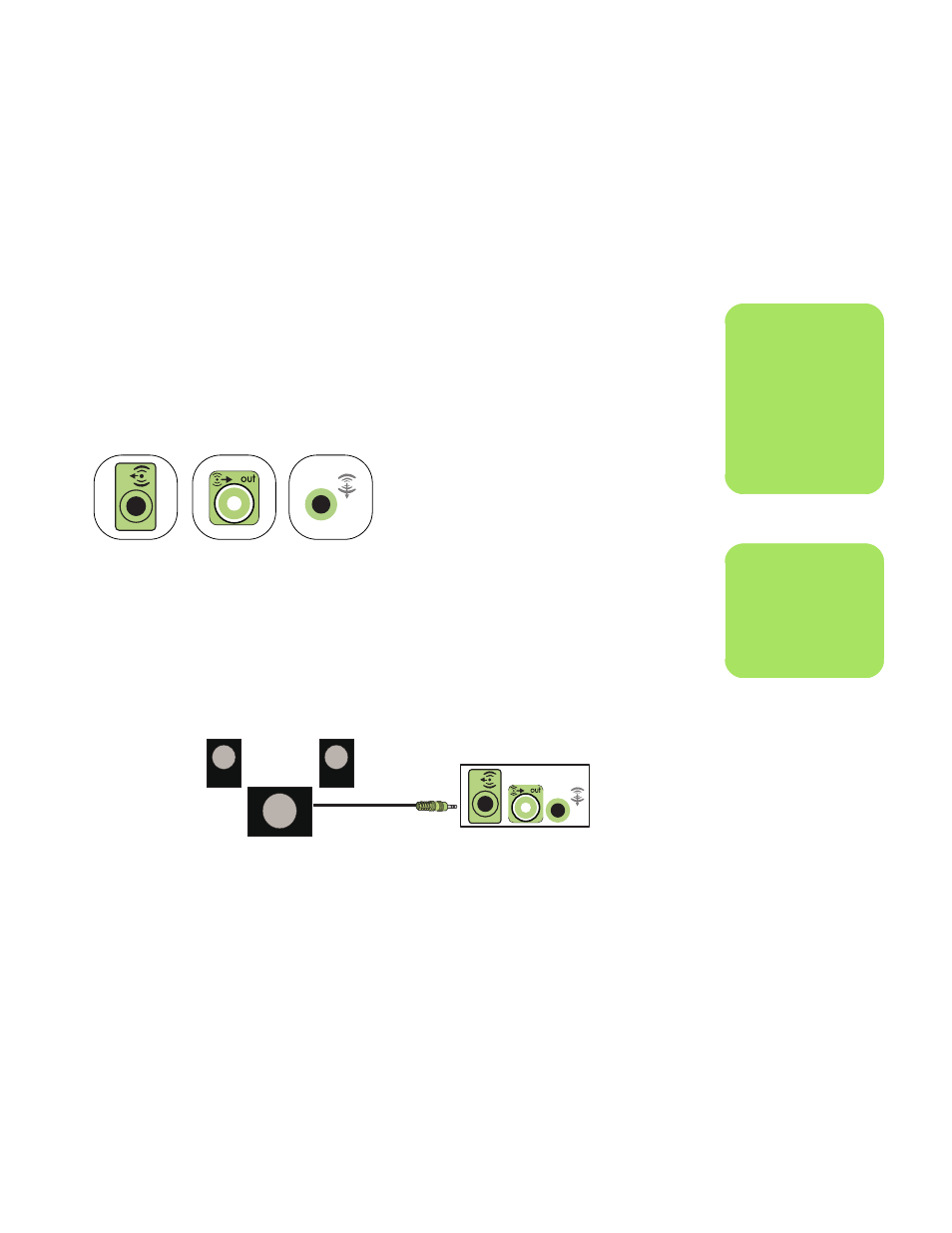

The following diagram shows a typical 2.1 audio installation:
n
Type 3 is three
connectors.
Type 6 is six
connectors.
Type S is sound card. OUT
3 6 S
n
Always turn on the
PC before you turn on
the speaker system.
OUT
