Connecting the TV Signal Source When You Have an
Existing Setup
This section describes how to connect the PC to an
existing setup for your TV signal source.
Wall to VCR to TV using coaxial cable
Remove the coaxial cable at the input to the VCR,
and connect it to the input of a coaxial cable signal
splitter (not included; available at electronics stores).
Connect two coaxial cables to the splitter outputs.
Connect one of these cables to the input of the VCR
and the other one to the TV connector on the back of
the PC.
A
B
D
E
F
G
H
J
C
C
A
B
D
E
F
C
C
C
C
H

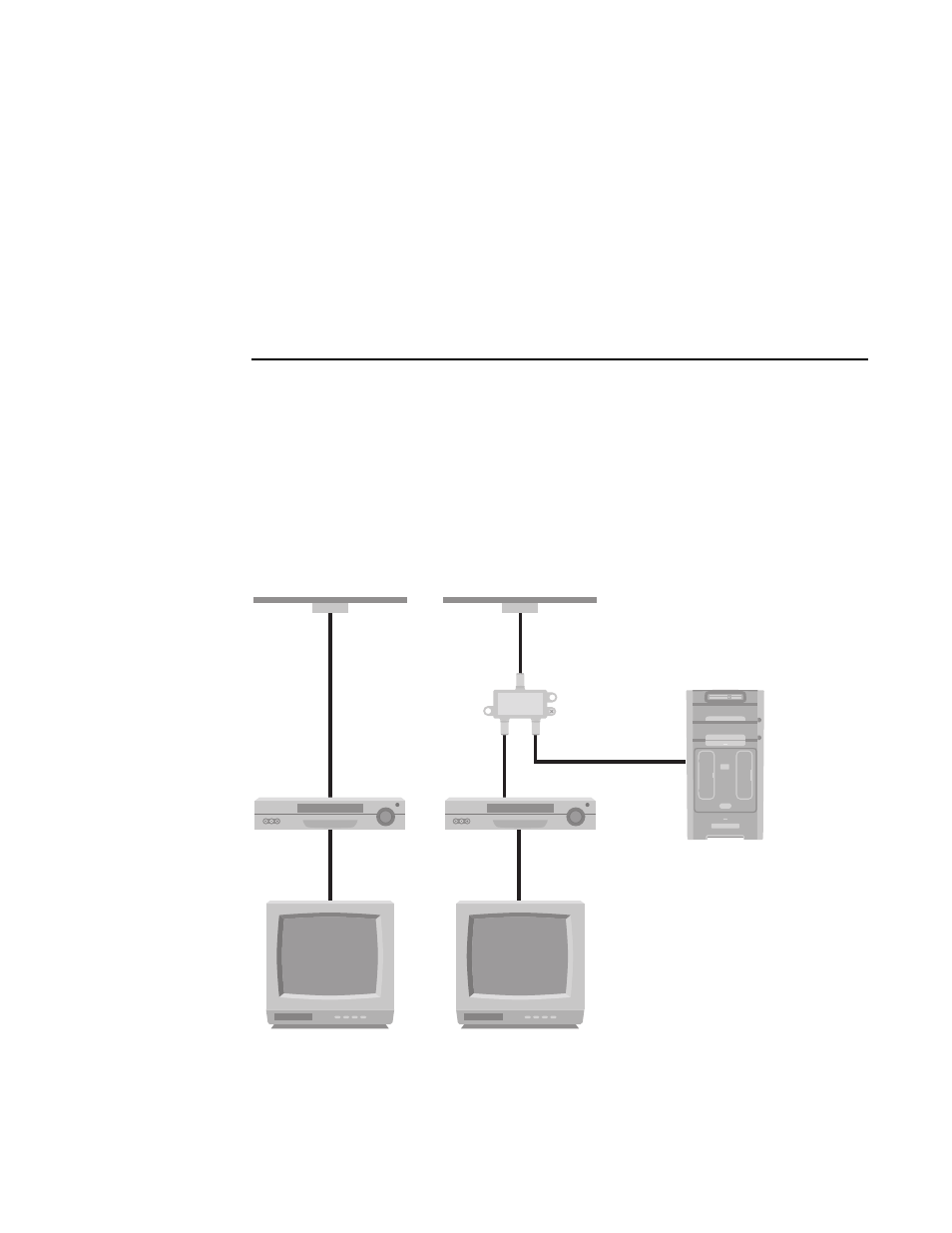

Existing setup Add the PC with a splitter
A Wall
B Cable outlet
C Coaxial cable
D VCR In
E VCR Out
F TV In
G Splitter In
H Splitter Out
J TV In on back of PC
