6) Slide the left side of the Water Tank to
release it from the Bracket Rail, lift down
the entire Water Tank, and pull it toward
you out of the Storage Bin. Do not hit the
other components.
7) Refit the Water Tank in the reverse order
of the removal procedure (left, right, top,
rear).
8) Plug in the icemaker or connect the
power source.

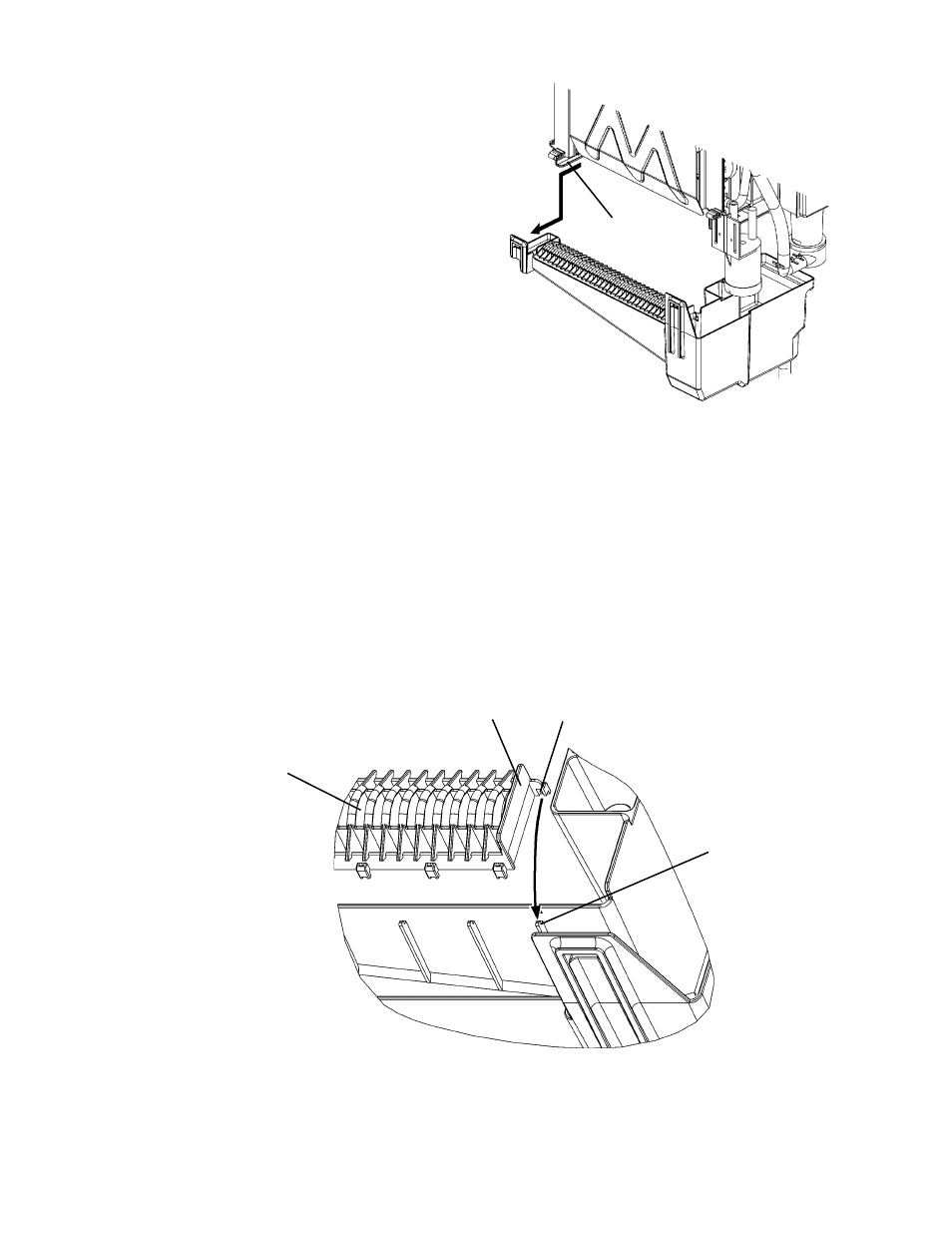

Fig. 27
Bracket Rail
17. CUBE GUIDE
1) Remove the Water Tank (see “16. WATER TANK”).
2) Lift off the Cube Guide out of the Water Tank.
3) To refit the Cube Guide, fit the Notches on both sides to the Stoppers in the Water
Tank.
4) The unit is provided with two or three Cube Guides (quantity varies depending on
model). Be sure to locate the Vertical Flanges on the outside edges.
Fig. 28
Cube Guide
Vertical Flange Notch
Stopper
