1. Before Use
• Function buttons ([Fn7] to [Fn11]) are
touch icons.
Touch the [ ] tab on the recording screen to
display them.
45
47
48
49
51
52
53
31
54
35 36
41 42
37
60 56 57
33
32
44
43
50
55
46
34 38 39
40
59 58

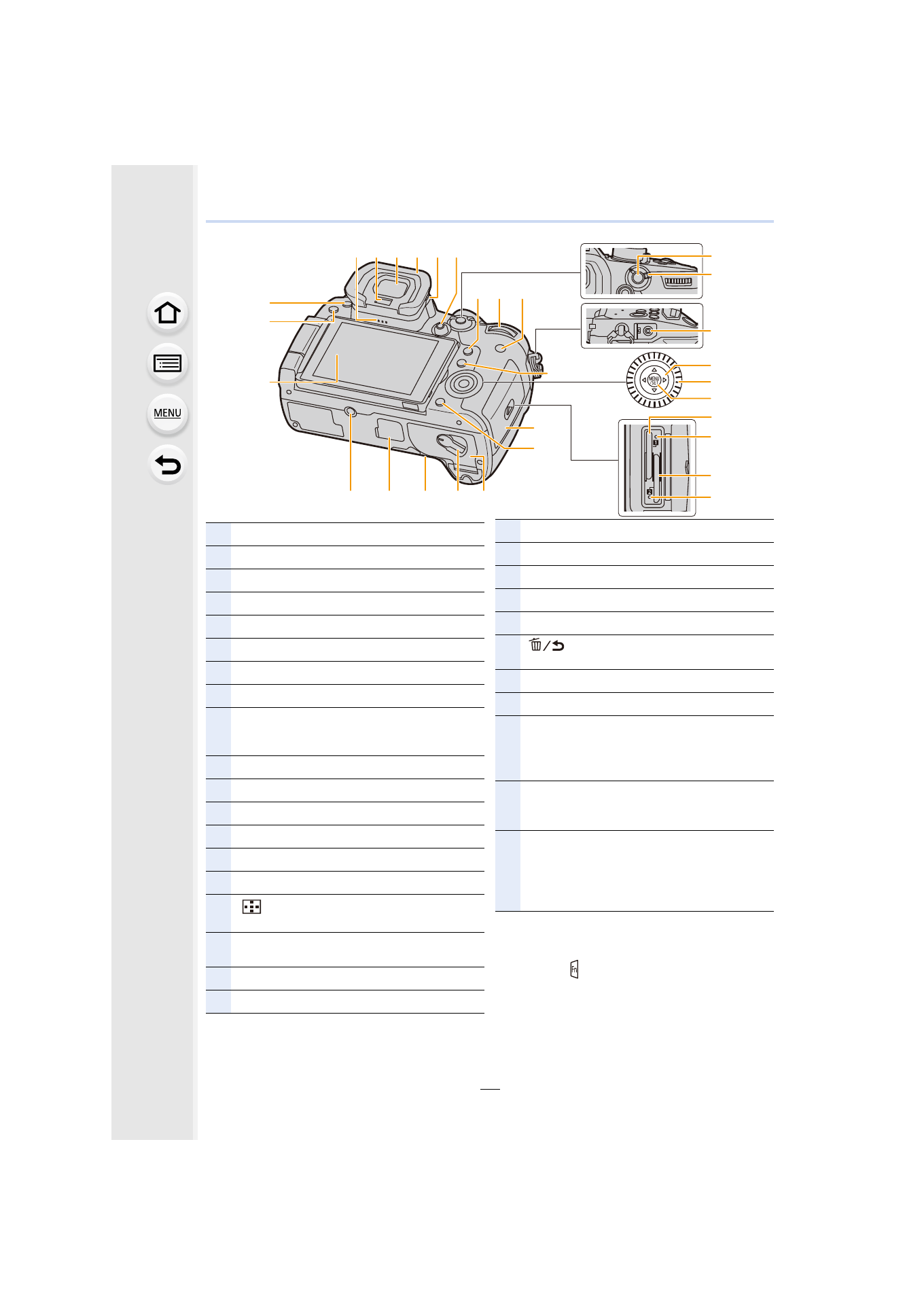

31 Touch screen (P51) /monitor (P345)
32 [ ( ] (Playback) button (P209)
33 [LVF] button (P40) /[Fn5] button (P59)
34 Speaker (P254)
35 Eye sensor (P41)
36 Viewfinder (P40)
37 Eye cup (P366)
38 Diopter adjustment dial (P40)
39
Joystick (P47) /Function button (P59)
Center (Fn12)/ 3 (Fn13)/ 1 (Fn14)/ 4 (Fn15)/
2 (Fn16)
40 [Q.MENU] button (P57) /[Fn2] button (P59)
41 Rear dial (P43)
42 [DISP.] button (P48)
43 [AF/AE LOCK] button (P105)
44 Focus mode lever (P85 , 102)
45 [REMOTE] socket (P344)
46
[ ] (Auto Focus Mode) button (P90) /
[Fn3] button (P59)
47
Cursor buttons (P47) /Function button (P59)
3 (Fn17)/ 1 (Fn18)/ 4 (Fn19)/ 2 (Fn20)
48 Control dial (P45)
49 [MENU/SET] button (P47 , 54)
50 Card slot 1 (P26)
51 Access lamp (card 1) (P27)
52 Card slot 2 (P26)
53 Access lamp (card 2) (P27)
54 Card door (P26)
55
[ ] (Delete/Cancel) button (P216) /
[Fn4] button (P59)
56 Battery door (P25)
57 Release lever (P25)
58
DC coupler cover (P344)
• When using an AC adaptor, ensure that the
Panasonic DC coupler (optional) and AC
adaptor (optional) are used.
59
Cover for the battery grip connector (P343)
• Keep the cover for the battery grip connector
out of reach of children to prevent swallowing.
60
Tripod mount (P369)
• It may not be possible to attach and securely
fasten a tripod with a screw length of 5.5 mm
(0.22 inch) or more to the camera. Doing so
may also damage the camera.
