RIGOL Chapter 1 Quick Start
1-10 MSO1000Z/DS1000Z User’s Guide
Rear Panel Overview

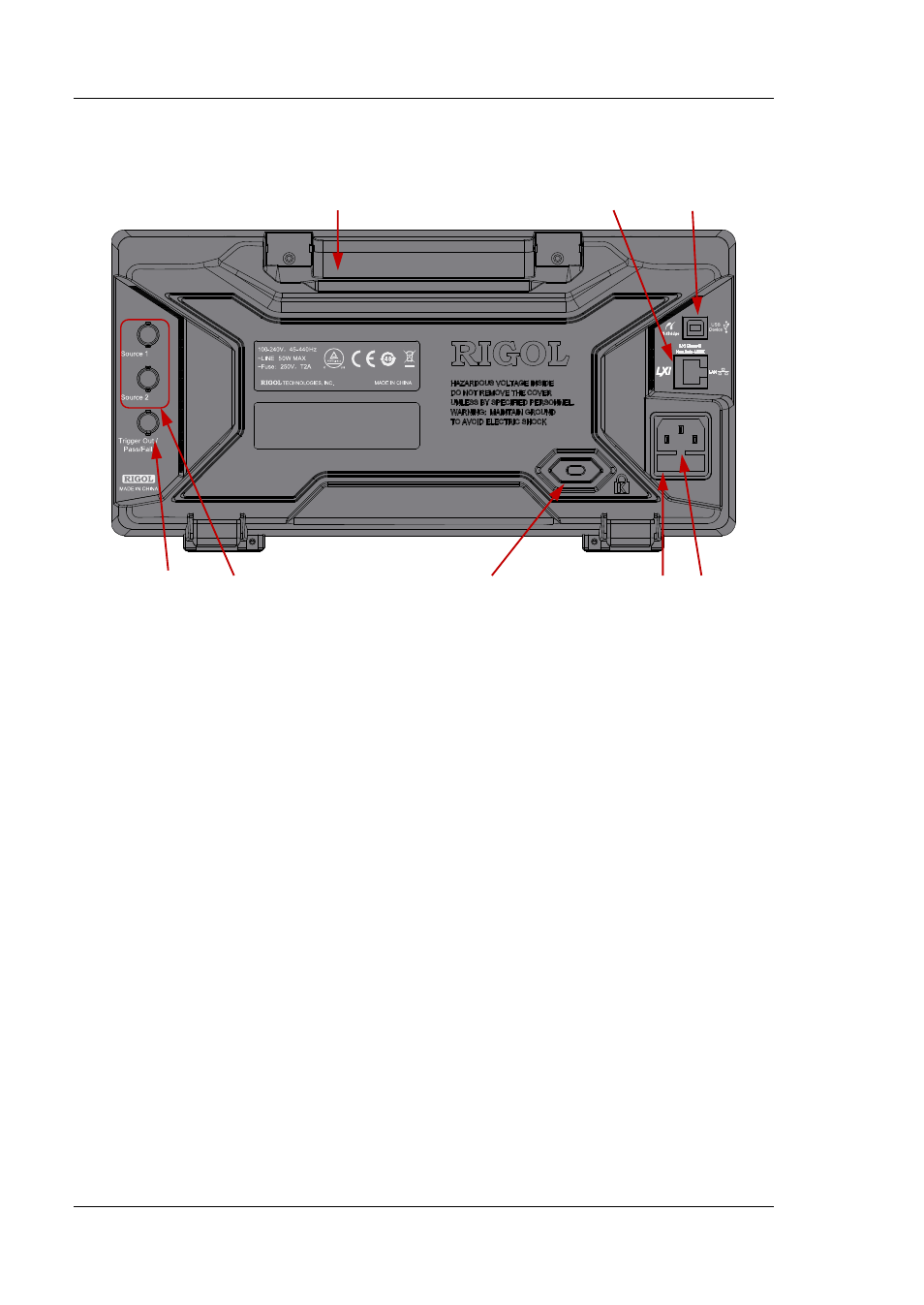

Figure 1-11 Rear Panel Overview
1． Handle
Pull up the handle vertically for easy carry of the instrument. When you do not
need the handle, press it down.
2． LAN
Connect the instrument to network via this interface for remote control. This
oscilloscope conforms to the LXI CORE 2011 DEVICE class instrument standards
and can quickly build test system with other instruments.
3． USB Device
You can connect the oscilloscope to a PictBridge printer or PC via this interface.
When a PC is connected, users can send SCPI commands using the PC software
or control the oscilloscope via user-defined programming. When a printer is
connected, users can print the waveform displayed on the screen using the
printer.
4． Trigger Out and Pass/Fail
 Trigger Out:
The oscilloscope can output a signal that can reflect the current capture
rate of the oscilloscope at each trigger via this interface. Connect the signal
to a waveform display device and measure the frequency of the signal. The
measurement result is the same with the current capture rate.
1 2 3
4 5 6 7 8
