3.
Fully open both legs and place B60 on a flat
and level floor.
At this moment, make sure all 4 foot are
contacting the floor at once to sit on the floor
stable. (see Fig. B)

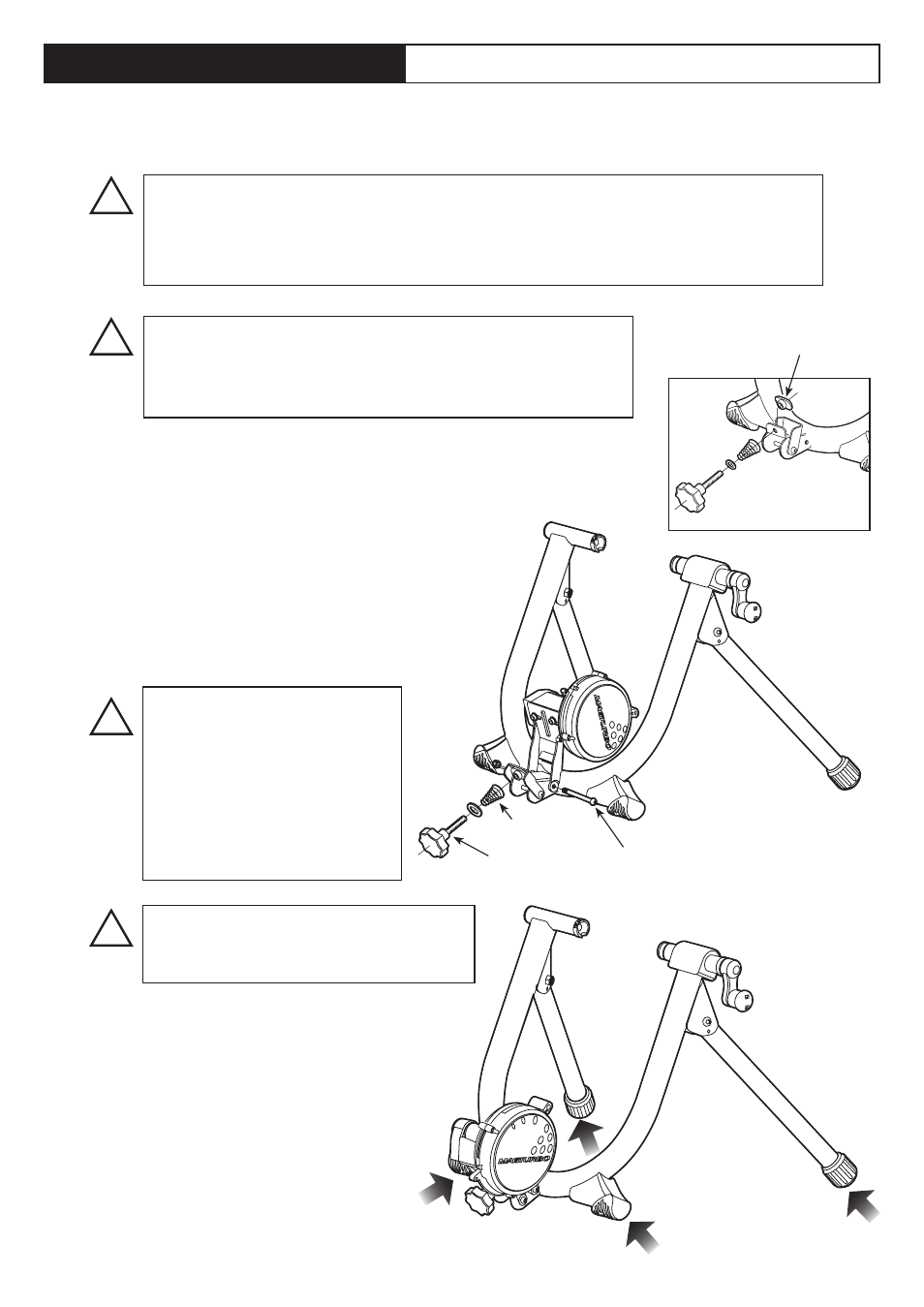

How To Setup Your B60 Trainer
2.
Install the MAG resistance unit to the frame with the
supplied M6x50 bolt and the M6 Nylon nut.
The bolt and nut are preinstaled on the tip of the
Base Plate (LM-10).
And install the Roller Pressure Adjust Knob set (MF-
3) to the Plate Nut coming from behind the bracket
on the frame. (see Fig. A-1)
- Page 4 -
1.
Replace your rear wheel quick release skewer to the supplied one.
Minoura guarantees the stability only when using the supplied skewer due to the coupling inner shape.
! If your bike is not equipped with quick release skewer and it's a hub nut type,
you should remove the black plastic Grommet (skewer nut protector) (F-9) from
the right side coupling.
Minoura doesn't guarantee the stability if you don't remove the Grommet.
You don't need the supplied quick release skewer if your
wheel is a hub nut type. It's not possible to convert your
wheel from the hub nut type to the quick release skewer
type unless replacing the hub.
!
Required Tools: 1 x 10mm Spanner / 1 x M4 Hex Wrench
!
Make sure the acorn shaped spring
direction is as shown in Fig. A-2.
Failure will cause difficulty on rotating.
(Fig. A-2)
(Fig. B)
!
Precisely adjust the
tightening torque of the
M6x50 bolt.
Too strong setting will cause
difficulty of moving the MAG
unit smoothly.
Too loose setting may pinch
your finger . Roller Pressure
Adjust Knob
M6x50 Bolt
Acorn Spring
(Fig. A-1)
(Tools are not included. Please prepare separately.)
Plate Nut
