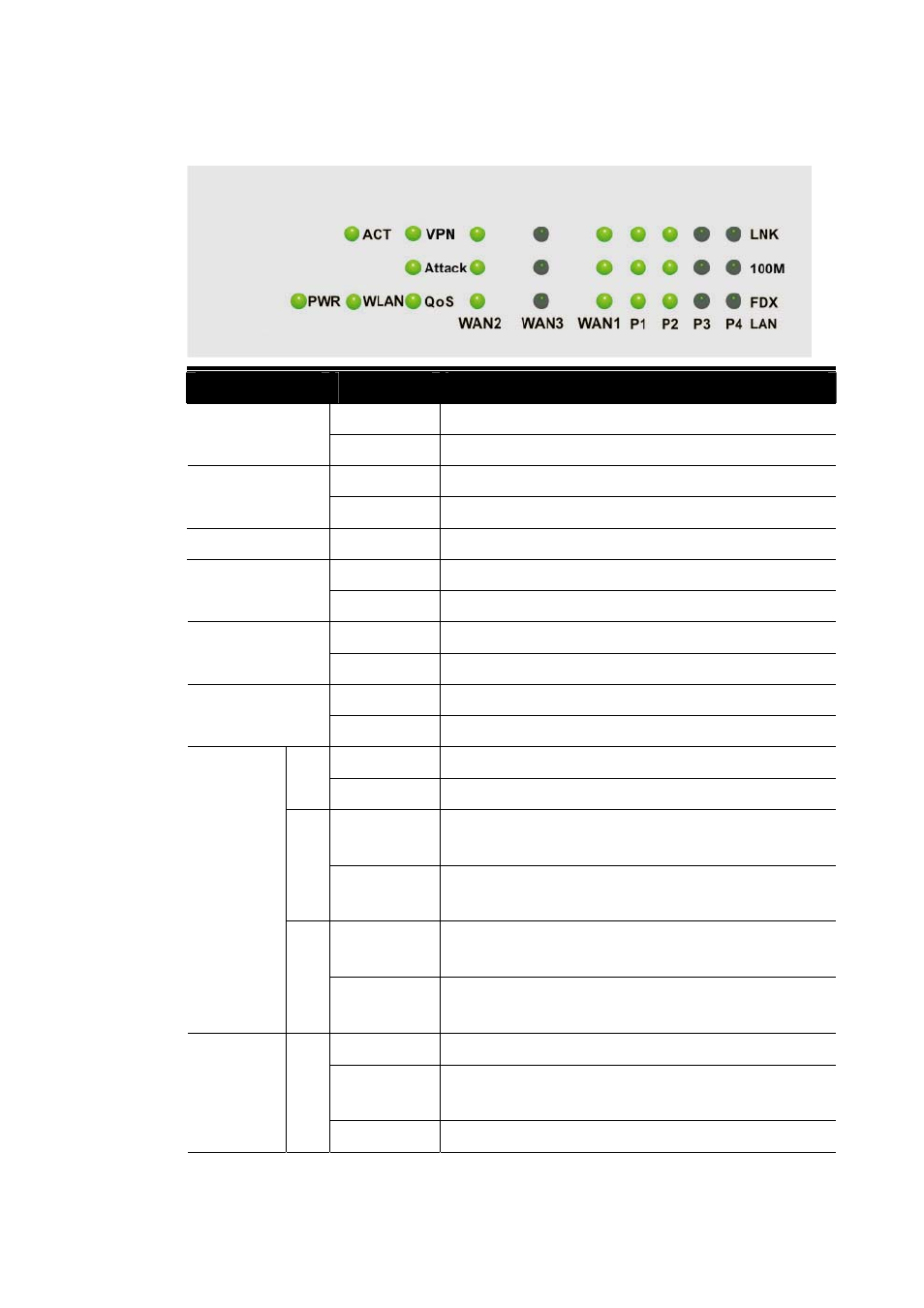

LED
Status
Explanation
On
The router is powered on.
PWR
Off
The router is powered off.
On/Blinking
The system is active.
ACT
Off
The system is hanged.
WLAN
No
Reserved for future use.
On
The VPN tunnel is launched.
VPN
Off
The VPN tunnel is closed.
On
The Attack function is active.
Attack
Off
The Attack function is inactive.
On
The QoS function is active.
QoS
Off
The QoS function is inactive.
On
The Ethernet link is established on corresponding port.
LNK
Off
No Ethernet link is established.
On
It means that a normal 100 Mbps connection is
through its corresponding port.
100M
Off
It means that a normal 10 Mbps connection is through
its corresponding port.
On
It means a full duplex connection on corresponding
port.
WAN
(2, 3, 1)
FDX
Off
It means a half duplex connection on corresponding
port.
On
The Ethernet link is established.
Blinking
The data transmission is done through the
corresponding port.
LAN
(1, 2, 3, 4)
LNK
Off
No Ethernet link is established.
